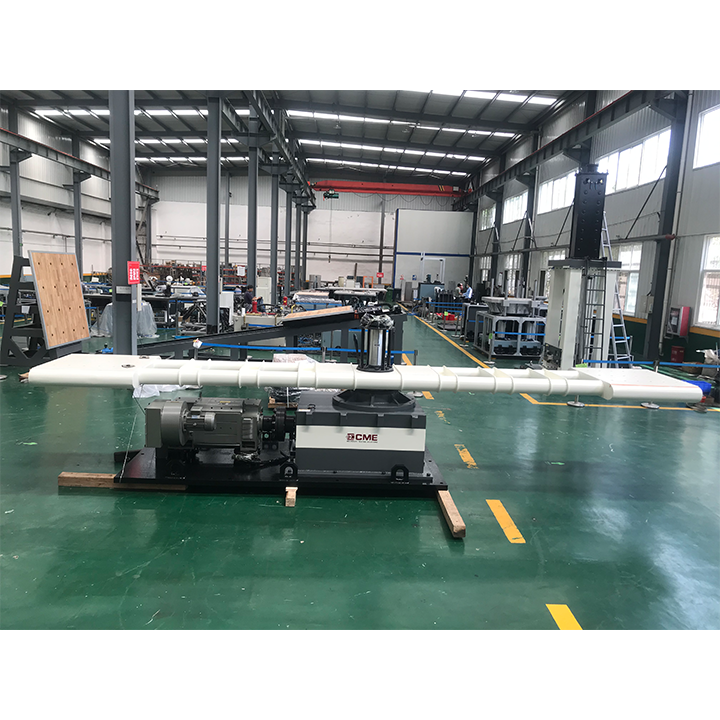

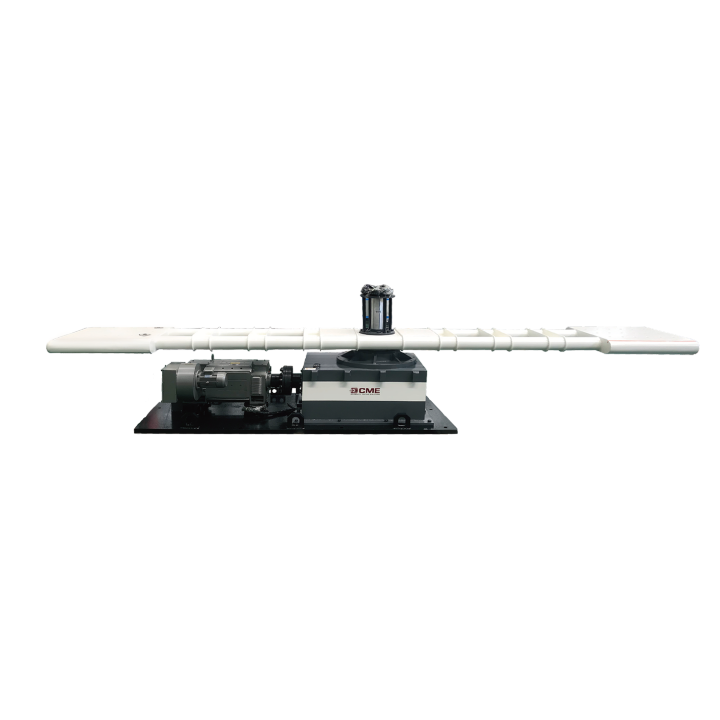

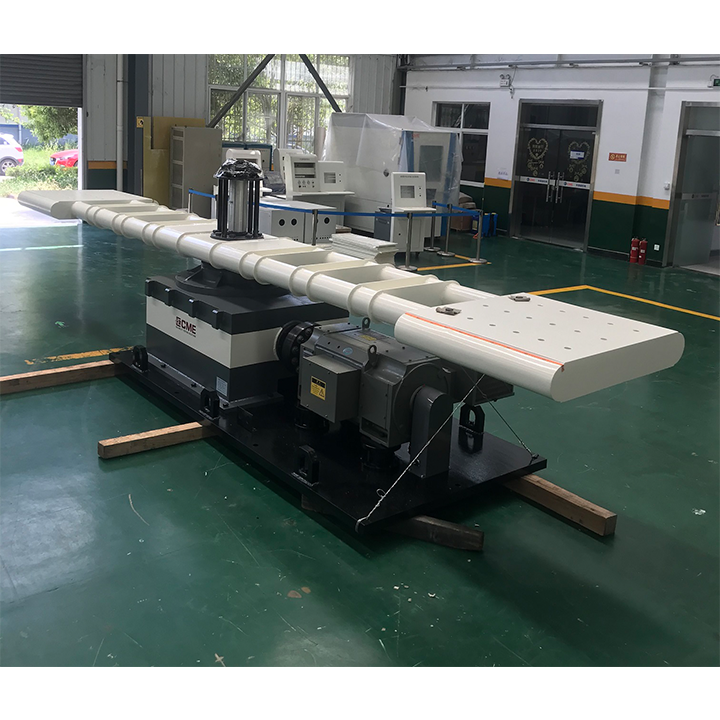

Laboratory Test Equipment Arm Type Centrifugal Constant Acceleration Test Machine
FOB Price: | 10000.00 - 100000.00 USD/Set |
---|---|
Payment Terms: | T/T |
Related products from verified members
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: CCME
- Warranty: 1 year
- weight: 2500~30000
- Model Number: KRD31
Specifications
KRD31 series centrifugal constant acceleration tester are used to test articles under extreme acceleration conditions based on standard like MIL-STD-810F, MIL-STD-202 and IEC68-2-7.
It is most suitable for testing electronic components or devices. under high g effect on microcircuits, to check adaptability and reliability of wiring and the internal structures. It may expose mechanical and structural defects that are not found with vibration and shock tests.
Technical Specifications
Model Parameters |
KRD 3130 |
KRD 3150 |
KRD 31100 |
KRD 31100A |
KRD 31200 |
KRD 31500 |
KRD 311000 |
KRD 311500 |
Max. Load (kg) / Position |
302 |
502 |
1002 |
5002 |
10002 |
15002 | ||
Acceleration (g) |
0.5100 | |||||||
AccelerationAccuracy(%) |
±1 | |||||||
Max. Specimen Dimension (mm) |
300300300 |
400400400 |
500500500 |
700700700 |
100010001000 |
120012001200 |
150015001500 | |
SpecimenInstalled Radius (mm) |
1000 |
1200 |
1500 |
2250 |
2500 |
3000 |
6000 |
7500 |
Launch/Stop Time (Min) |
≤3 |
≤5 |
≤8 |
≤10 | ||||
Continues Working Time (min) |
60 |
30 | ||||||
Consumption Power (kVA) |
40 |
55 |
100 |
120 |
450 |
500 | ||

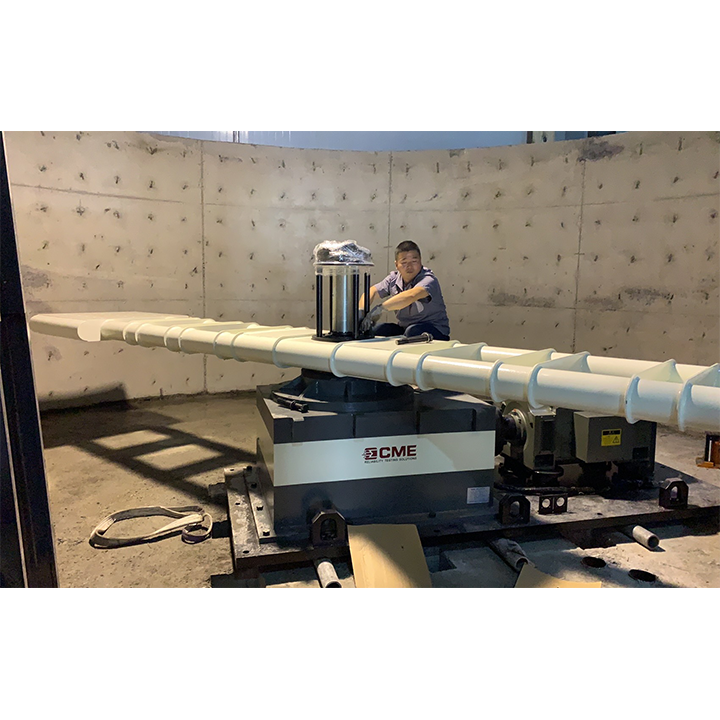

Inner Diameter of Foundation (mm) |
Φ3000 |
Φ4000 |
Φ4500 |
Φ6000 |
Φ7500 |
Φ8500 |
Φ15000 |
Φ18000 |
Collector Ring |
60 rings 500V5A | |||||||
Weight (kg) |
2500 |
2800 |
3000 |
3500 |
6000 |
8000 |
15000 |
30000 |
Power Supply |
AC380V±10%, 50/60Hz | |||||||
Measurement and Control System |
| |||||||
Remarks |
Collector ringand control accuracyCan be configured in accordance withRelevantStandards or user requirements. | |||||||
Working Environment |
Temperature range 040℃, humidity≤80%(No condense) | |||||||
Standards |
MIL-STD-810F IEC68-2-7 |
