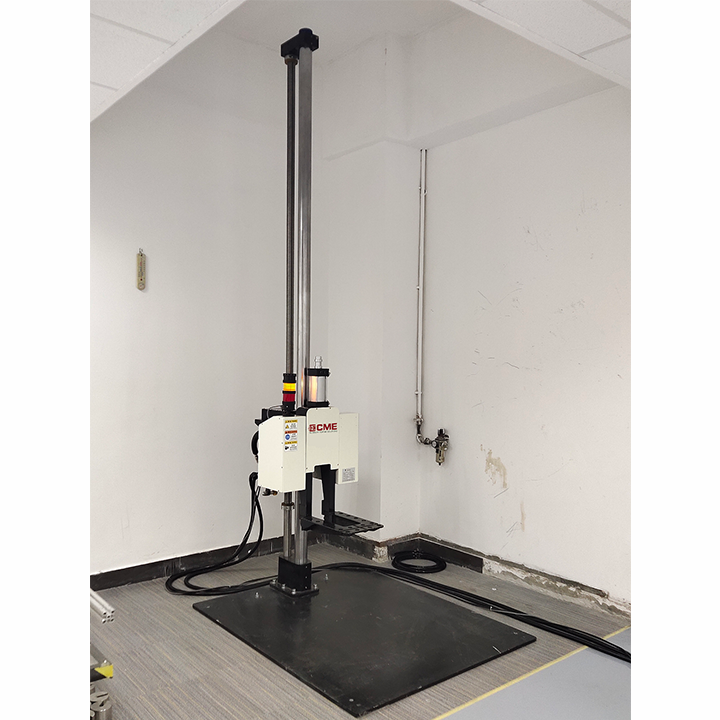

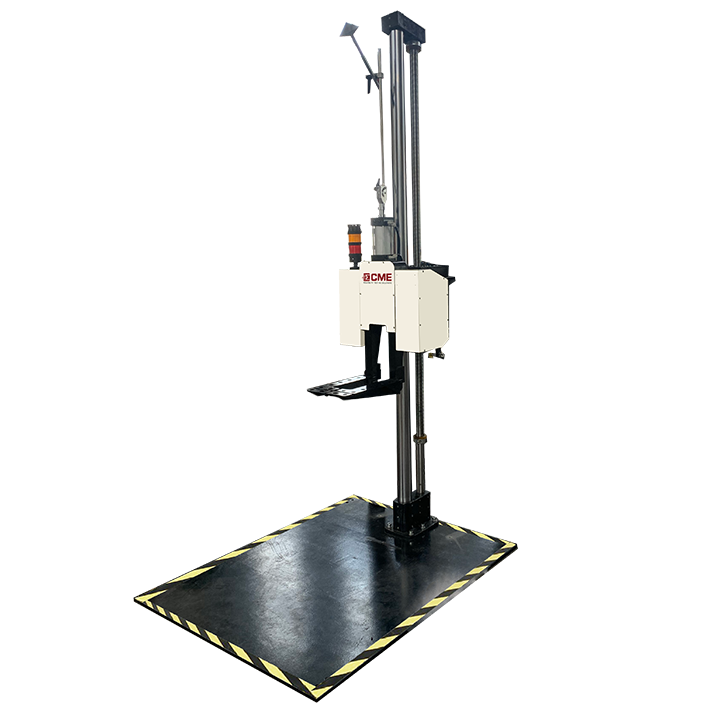

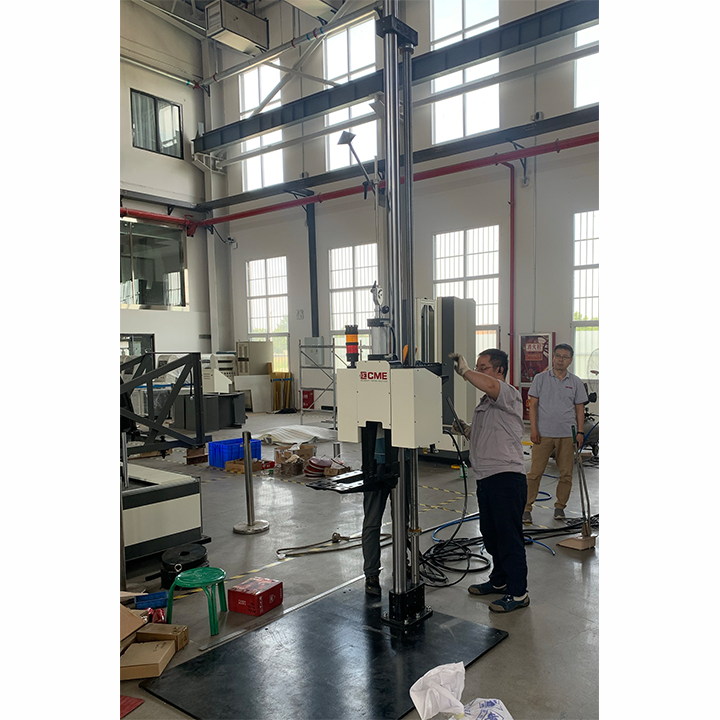

Mobile Phone Free Fall Drop Test Machine Vertical Drop Impact Testing
| FOB Price: | 10000.00 - 100000.00 USD/Set |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Usage: Drop Tester
- Power: Electronic
- Brand Name: CME
- Warranty: 1 year
- weight: 1500kg
- Model Number: KRD41
Specifications
KRD41 series small drop tester is suitable for free-fall test of small consumer electronics and components such as mobile phones, walkie-talkies, electronic dictionaries, CD / MD / MP3 and so on,Applicable standards JISC 0044 and IEC 60068-2-32. through standard tests on electronic products (surface drop, corner drop, edge drop, etc.) and collecting data, it simulates the vertical drop impact of electronic products during transportation and handling. It provides a basis for the design of the product's buffer and vibration damping and the selection of structural materials.
It can be dropped naked or dropped with packaging to evaluate the impact resistance or the damage caused by the fall of the product during transportation. It is an indispensable test method to improve the product's quality. It is applicable for electronic product research, development, quality control, manufacturing and other links.
Features:
Upper and lower displacement limit to guarantee safe.
the lifting height can be adjusted arbitrarily to meet the different requirements.
It can clamp and drop the test sample at any angle
Just place the machine on a flat marble or concrete floor, no special foundation needed
Remote control can be realized to ensure the safety of operators. (custom function)
Technical Specifications:
Maximum load: 100kg
Drop effective height: 300mm2000mm
Minimum separation height: 300mm
Maximum clamping size: 200mm200mm
Counter: 0-999999 can be preset
Drop floor medium: steel plate / cement plate / acrylic plexiglass plate
Drop floor size: 500mm*500mm*30mm
Lifting method: Cylinder lift, the height can be set arbitrarily
Air pressure:≤0.8MPa
Control method: Full-automatic pneumatic drive control, equipped with high-precision displacement sensor and collector
Foundation requirements: level the concrete floor
Equipment weight: about 1500kg
Operating environment: temperature 040℃, humidity≤80% (non-condensing)
Power supply: 2-phase AC220V 50Hz.
