New Type 3-DOF(Degrees Of Freedom)Simulation Testing Machine for Ship Marine Simulation Test

FOB Price:	10000.00 - 100000.00 USD/Set
Payment Terms:	T/T

In Stock

Inquiry Now

Quick Details

Usage: Auto Testing Machine
Power: Electronic
Brand Name: CME
Warranty: 1 year
weight: 1500~10000
Model Number: KRD60

Specifications

KRD60 Series 3 DOF simulation table simulates various mechanical, electrical, and electronic products installed on ships, seaplanes, and other equipment to perform sway and tilt tests to determine the ability and structural integrity of the product to withstand severe sway and tilt requirements. The tilt test is mainly applicable to large-angle tilt caused by ship damage, manipulation, imbalance in loading and unloading, and wind. The sway test is mainly applicable to long-term swaying of the ship due to external forces such as wind and waves, which must be maintained normally or products that work reliably, and products that have a significant impact on their performance in a rocking environment.

Based on the stable Windows OS and support automatic remote-control interface, the operator can accurately complete the tilting and swing test by entering simple values.

the operation interface is mainly based on the real-time display of data curve, it also can display the test parameters, system status, and test progress.

It can realize the functions of sine signal, self-closed loop adjustment, various function control and alarm prompt.

the functions of roll, pitch, head-roll and tilt tests can be performed on the same platform.

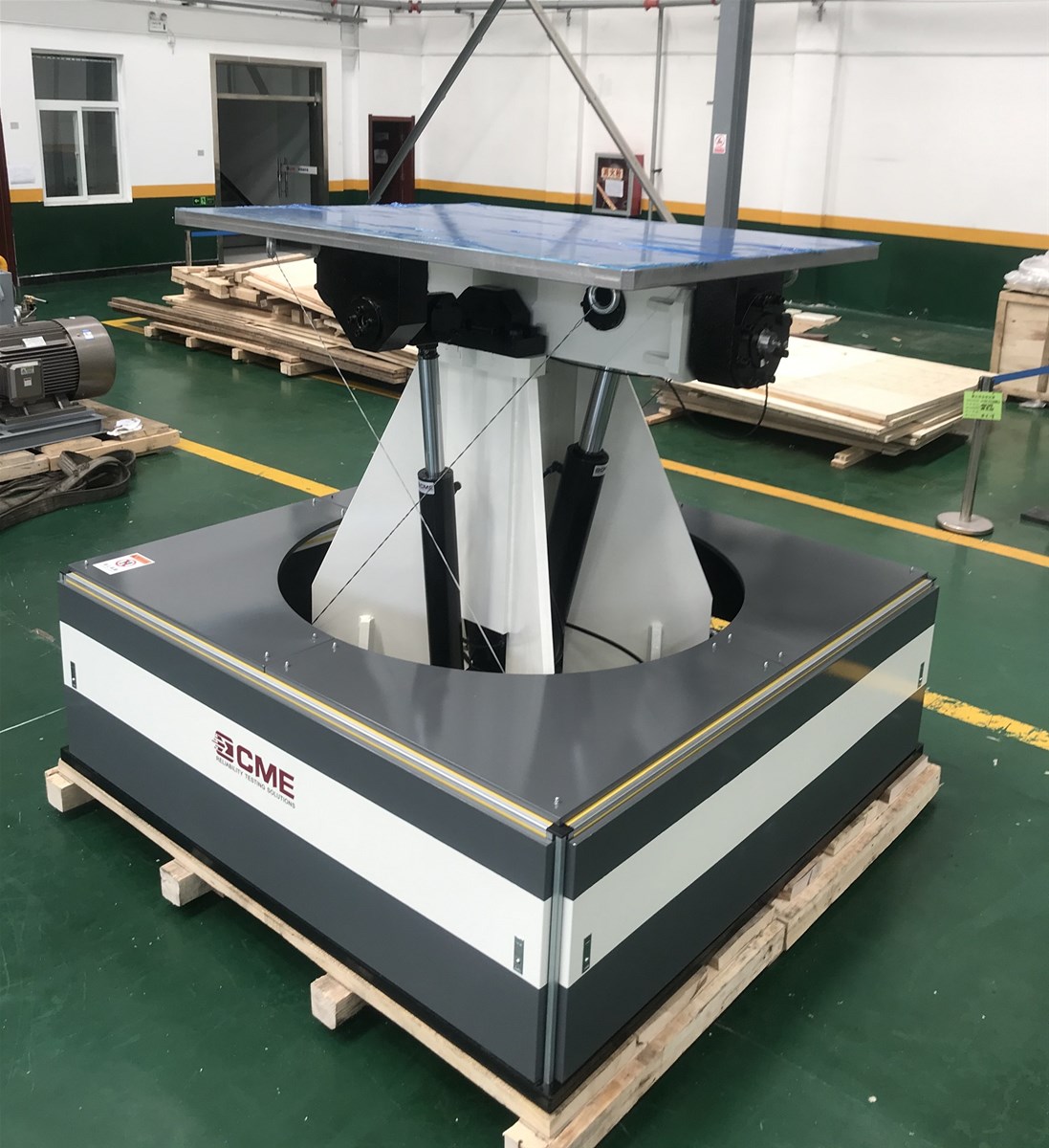

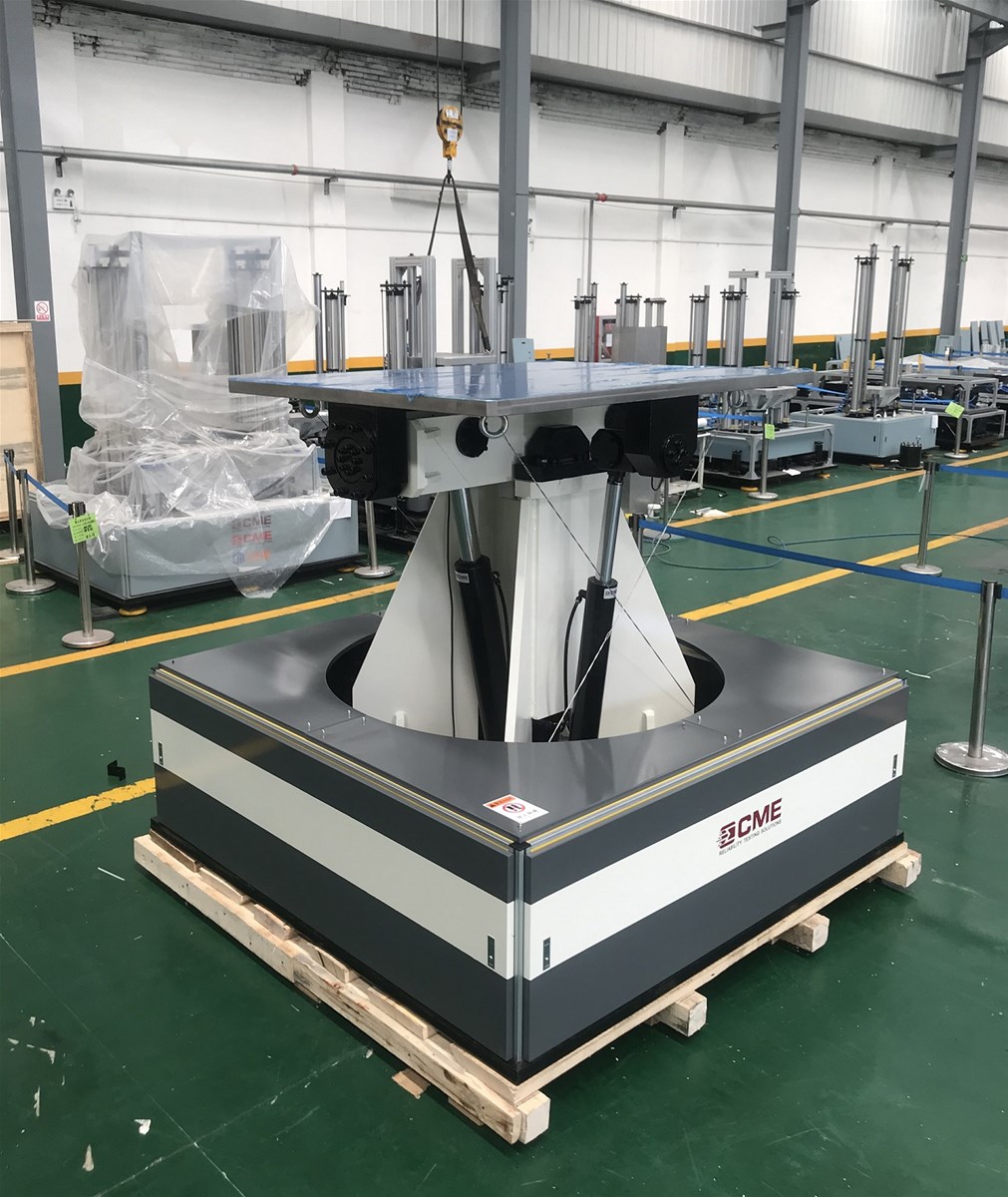

New Type 3DOFdegrees of freedomSimulation Testing Machine for Ship Marine Simulation Test

Technical Specifications

Model Parameters	KRD 60- 100	KRD 60- 300	KRD 60- 500	KRD 60- 1000	KRD 60- 1500	KRD 60- 2000	KRD 60- 3000	KRD 60- 5000	KRD 60- 8000	KRD 60- 10T
Max. Load (kg)	100	300	500	1000	1500	2000	3000	5000	8000	10000
HeightofSpecimenCOG (mm)	5001000(customized by product)
Yawing Angular Displacement	±10°
Rolling Angular Displacement	±45°
Pitching Angular Displacement	±30°
Rolling Tilting Angular Displacement	±45°
PitchingTiltingAngular Displacement	±30°
Table size (mm)	800800	10001000	13501000	15001200		16001400	18001600	20001800	25002200	30002500
Power Supply and Consumption Power	AC380V 20kVA	AC380V 22kVA		AC380V 37kVA	AC380V 45kVA	AC380V 55kVA	AC380V 70kVA	AC380V 90kVA	AC380V 110kVA	AC380V 150kVA
Weight (kg)	1500	1800	2000	3000	3500	4000	5000	6000	8000	10000
Working Environment	Temperature Range: 040℃, Humidity≤80% (no condense)
Standards	IEC600682
