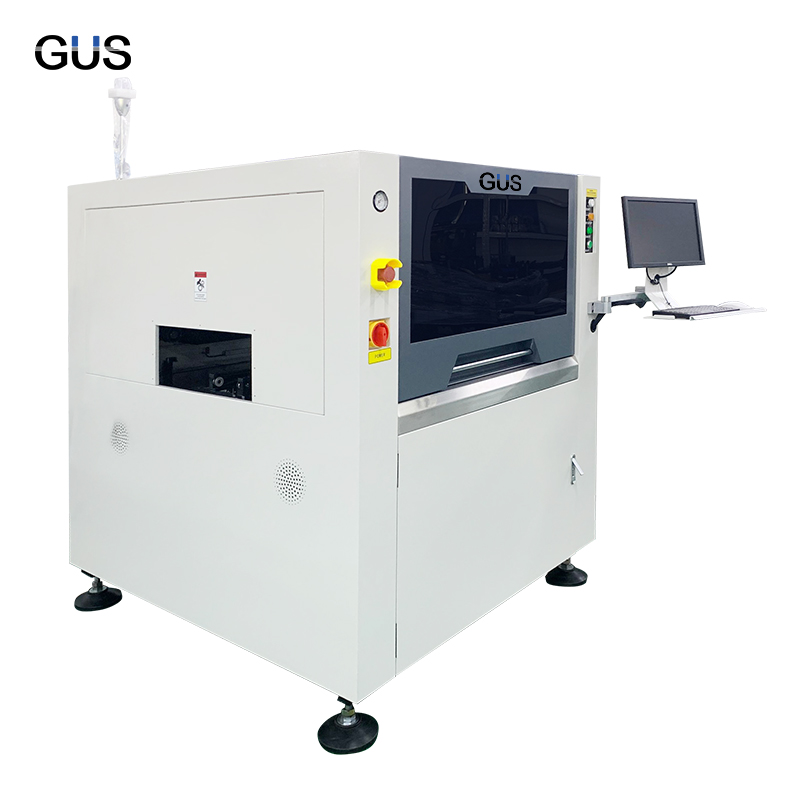

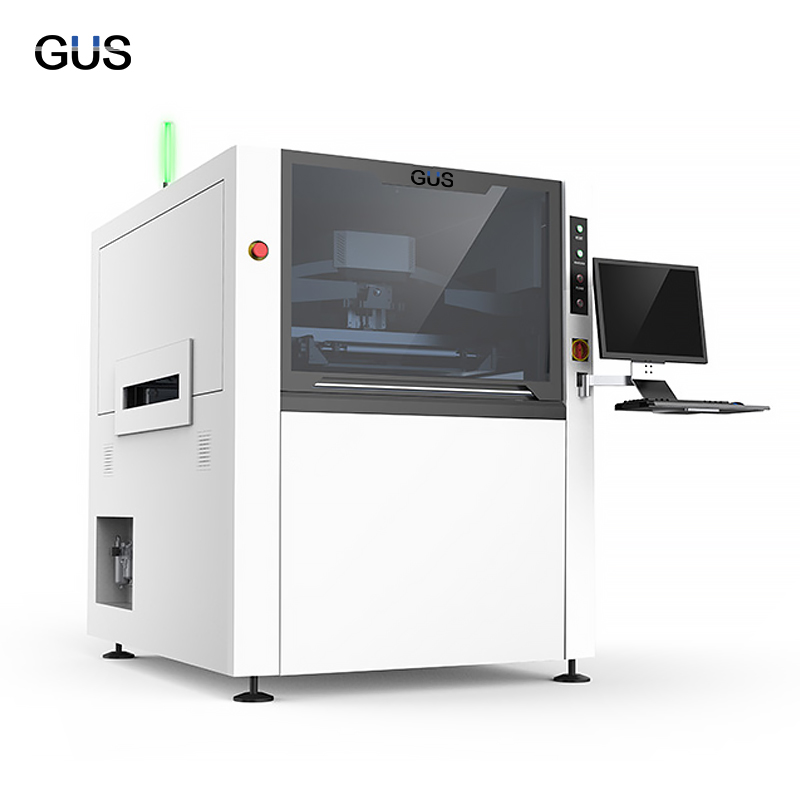

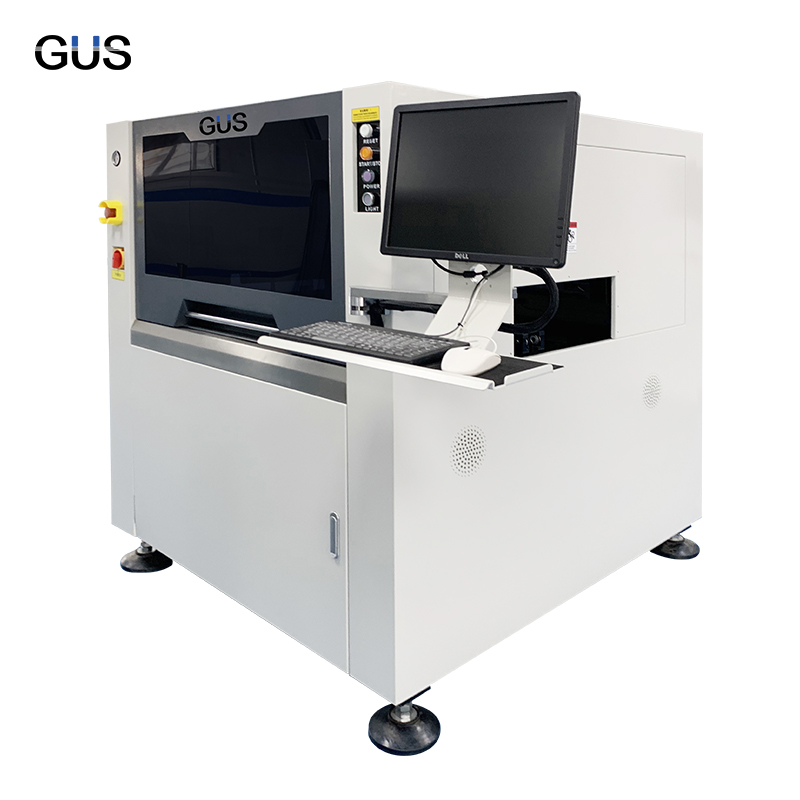

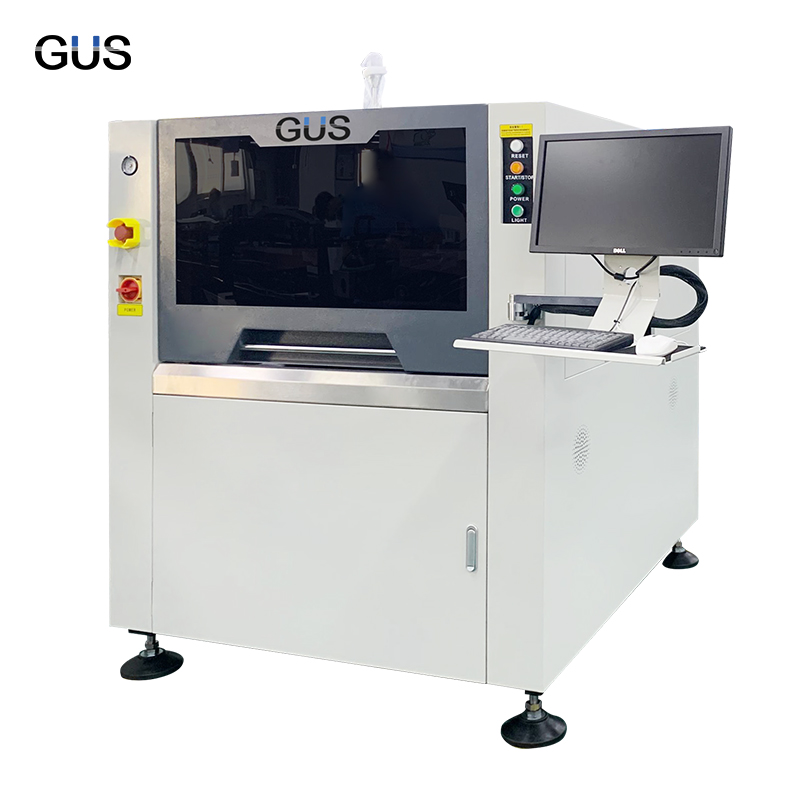

G-ASE Automatic Solder Paste Printing Machine
| FOB Price: | 18299.00 - 19769.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: CE
- Brand Name: GUS
- Condition: New
- Dimension(L*W*H): 1220(L)*1355(W)*1500(H)mm
- Weight: 1000Kg
- Voltage: 220v
- Model Number: G-ASE
- Name: Automatic Solder Paste Printing Machine
- Model: G-ASE
- PCB Min Size: 50*50mm
- PCB Max Size: 400*340mm
- PCB Thickness: 0.4~6mm
- Transport Speed: Max 1500mm/S Programmable
- Machine Dimensions: 1220(L)*1355(W)*1500(H)mm
- Machine Weight: Approx:1000Kg
Specifications
Key points of ASE product technology of automatic vision solder paste printing machine:
User friendly design
Wide application scope and strong universality
Unique spray type automatic cleaning system
Efficient and energy-saving structure of paper for wiping test
Unique image processing system
Intelligent printing production mode
Printing range: 400 * 340mm / 510 * 340mm
Adopt the universal UW three-axis linkage platform
External dimension of the machine: 1220 1355 1500mm
Machine options: automatic tin filling function; automatic steel mesh plugging detection function; automatic dispensing function; scraper pressure feedback function; automatic MSE / SPI online function and automatic wet function
Item
Model
G-ASE Screen Frames
Min Size
370*370mm Max Size
737X737mm Thickness
25~40mm PCB Min Size
50X50mm PCB Max Size
400X340mm PCB Thickness
0.4~6mm PCB Warpage
1% Transport Height
900±40mm Transport Direction
Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed
Max 1500mm/S Programmable Board Location
Support System
Magnetic Pin/up-down table adjusted/supportblock PCB
by hand
Clamping System
Side clamping,vacuum nozzle Print head
Two independent motorised printheads Squeegee Speed
6~200mm/sec Squeegee Pressure
0~15Kg Squeegee Angle
60°/55°/45° Squeegee Type
Stainless steel(Standard), plastic Stencil Separation Speed
0.1~20mm/sec Programmable Cleaning System
Dry, Wet, Vacuum (Programmable) Table Adjustment ranges
X:±10mm;Y:±10mm;θ:±2° CCD FOV
8*6 Solder Paste Inspection
2D Inspection Standard Machine Repeat Position Accuracy
±0.01mm Printing Accuracy
±0.025mm Cycle Time
<7s (Exclude Printing & Cleaning) Product Changeover
<5Min Air Required
4.5~6Kg/cm2 Power Input
AC:220±10%,50/60HZ 1Φ 3KW Control Method
PC Control Machine Dimensions
1220(L)X1355(W)X1500(H)mm Machine Weight
Approx:1000Kg
