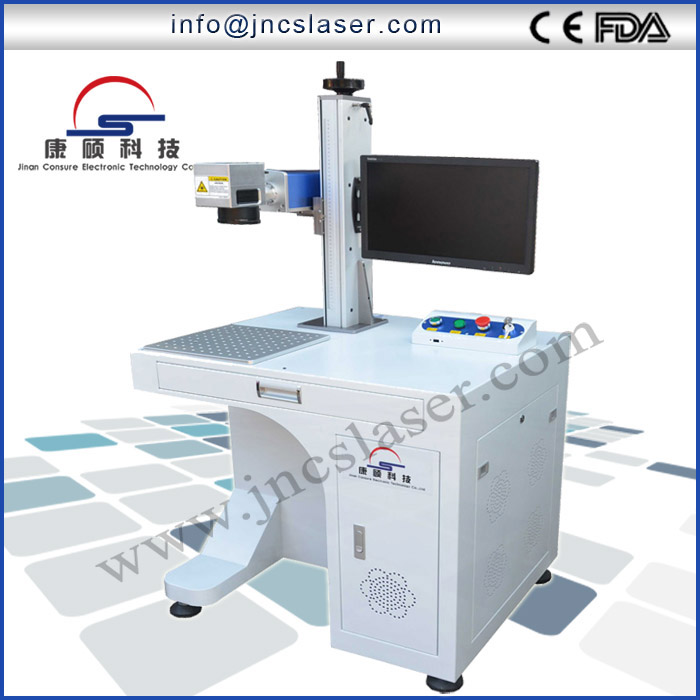

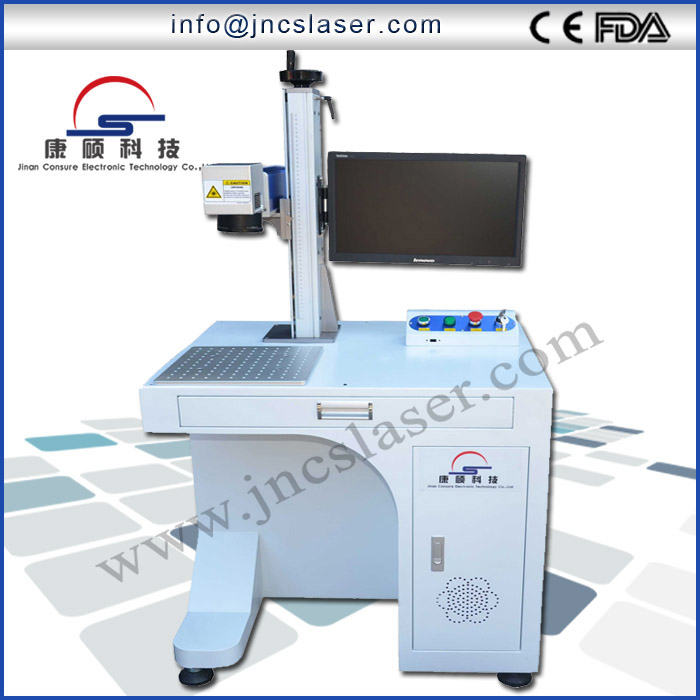

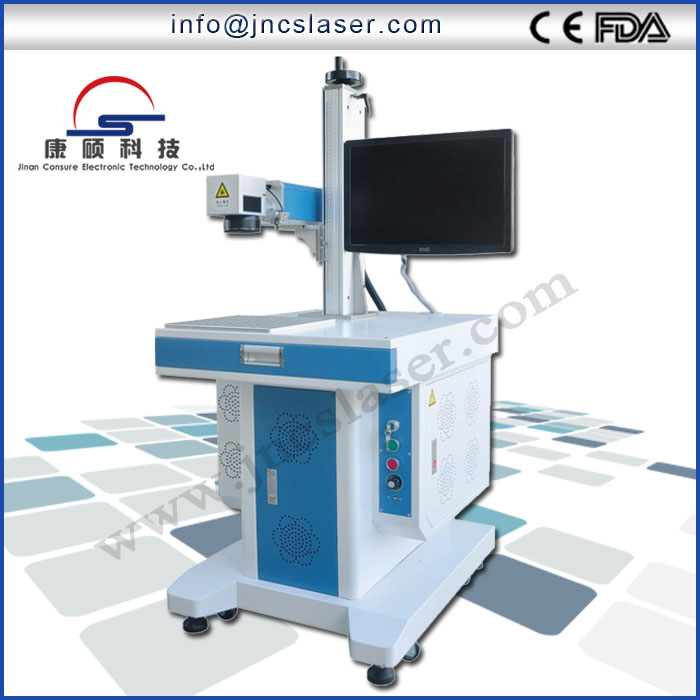

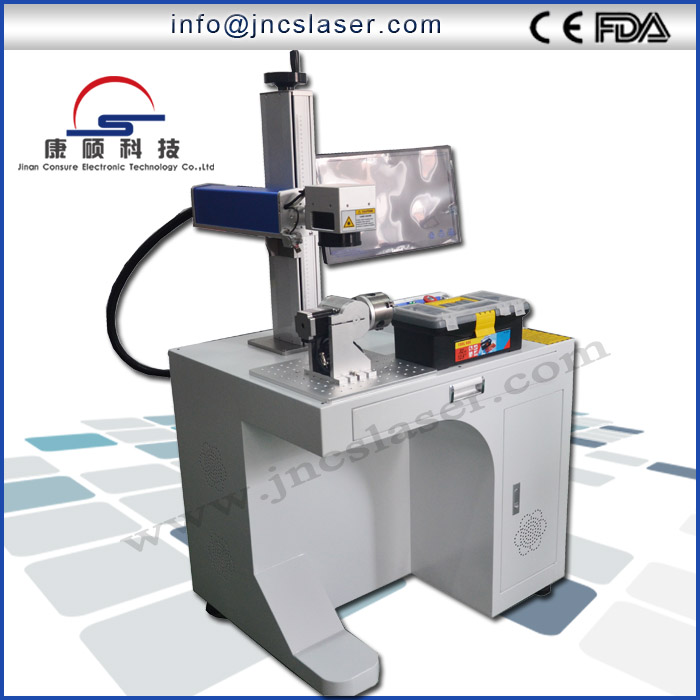

Stand Fiber Laser Marking Machine

FOB Price:	1000.00 - 5000.00 USD/Set
Supply Ability:	500 Set(s) per Month
Shipping:	by air by couier
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywood package

Quick Details

Application: Laser Marking
Certification: CE
Brand Name: jncslaser
Graphic Format Supported: AI,BMP,DWG,DXF,PLT
Condition: New
Applicable Material: stainless steel aluminum copper
After-sales Service Provided: Engineers available to service machinery overseas
Power(W): 20w 30w 50w
Model Number: CS-F20 CS-F30 CS-F50
Working Accuracy: 0.01
Control Software: EZ cad
Cooling Mode: Air Cooling
CNC or Not: Yes
Laser Type: Fiber Laser
marking scope: 70*70/110*110/200*200mm

Specifications

Fiber laser marking machine Stand fiber laser marking machine
Fiber laser marking system for stainless steel marking is characterized by regularity, clarity, durability, no discoloration, no shedding, high temperature resistance, and no fear of organic solvent scrubbing.

It can be printed regardless of product size, plane, curved surface or sheet.

Fine print, depth of 5-100um, easy to operate, just a few seconds to image, no need to dry and cure.

It can be connected to automatic production line, foot switch and maximum power.

the control is accurate, the power is high, the operation is simple, the appearance is elegant, and the function of high power one for two is provided.

Fiber laser marking system for stainless steel marking can be easily connected to fiber optic transmission systems.

the core can be made very thin to achieve high power density.

the fiber has good heat dissipation performance, so the fiber laser has high conversion efficiency and low enthalpy.

the output wavelength of fiber lasers covers a wide range, from 400 to 3400 nm, which can meet the application needs of all aspects, and has a good application prospect in industrial and commercial, communications, military, medical and other fields.

Technical Parameters:

Type specification	CS-F20 CS-F30 CS-F50
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	20W 30W 50W
Marking scope	7070mm 110110 mm 150150mm 175175mm 200200mm 250250mm 300*300mm optional
Laser sources	Fiber module
Laser Head	Scanning head
the minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard Crate for export
Applications	Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc

Main Applications:

the fiber laser marking system for stainless steel markingis suitable for hardware tools, medical equipment, plumbing equipment, carbide, measuring tools, machine parts, instrumentation, kitchen utensils, gear bearings, valve signs, vehicle parts, stainless steel products, copper and aluminum products.
