Home >Products Catalog > Reliable Quality Multifunctional Crusher Bucket for All Excavators

Reliable Quality Multifunctional Crusher Bucket for All Excavators

FOB Price:	20000.00 - 25000.00 USD/Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Used Caterpillar 14G Wheel Grade / GOOD FAITH B...

Price:79,000.00-81,000.00 USD/Piece

Min. Order:1 Piece
running track paver machinery

Price:1.00-10,000.00 USD/Set

Min. Order:1 Set
PY220C Moto Grade

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: China Tools
COLOR: yellow,green or customized
name: excavator crusher bucket
Weight: 3000kg around

Specifications

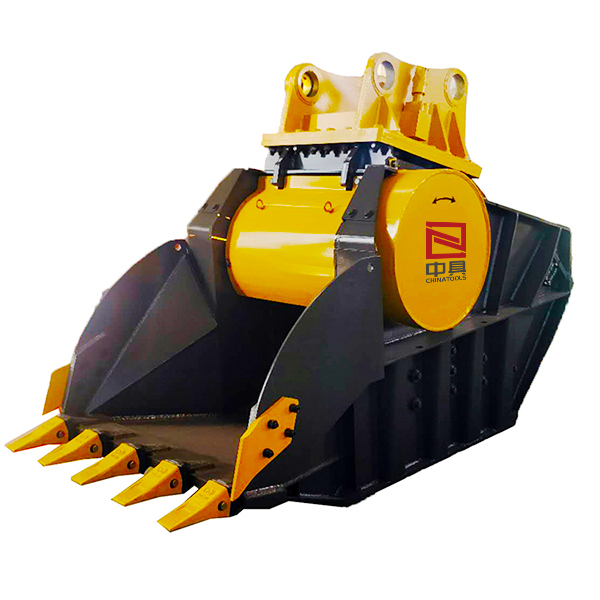

20T-35T excavator crushing bucket of China Tools

the crushing bucket adopts advanced crushing principles to significantly increase the proportion of cubes in the product.Reducing of the needle-shaped stones makes the size fraction more uniformly. the movable jaw assembly is composed of high-quality steel castings, and the heavy eccentric shaft is also processed by forging blanks, all of which make the jaw crusher have extraordinary stability. Meanwhile, we use larger and more durable eccentric shaft bearings to ensure their reliability.

Working principle of the cruher bucket

Connected to the pipeline of the excavator breaker, this product can drive the gear bearing by the hydraulic motor, actuate the eccentric shaft by the rotating bearing, causing the movable jaw to reciprocate based on desired track, thus crushing the materials that entered into the crushing cavity composed of fixed jaws, movable jaws and side guards, and then discharge the finished materials through the lower discharge port.

Technical parameters of the crushing bucket

Stable quality, not easy to malfunction, easy daily maintenance,super flywheel super impact force, can cope with all high hardness stones

Hydraulic motors imported from Germany

Hydraulic valve imported from the United States

Heavy-duty bearings for mining equipment imported from the United States

Welding steel plate imported from Sweden

Large flywheel provides high inertia crushing impact force

Efficient hydraulic transmission system

Super wear-resistant material jaw plate, two-way interchangeable design to extend service life

the whole machine adopts cold assembly and precision combination

the overall shell design adopts foreign technology of rewelding

Excavator crushing bucketcrusher bucket plantcrusher bucket customizationconcrete crusher bucketrock crusher bucket
