Hangzhou Shengpai Technology Co., Ltd.
China Manufacturer with main products: Ultrasonic Welding Machine, Ultrasonic Cutting Machine, Ultrasonic Transdcer, Ultrasonic Converter |

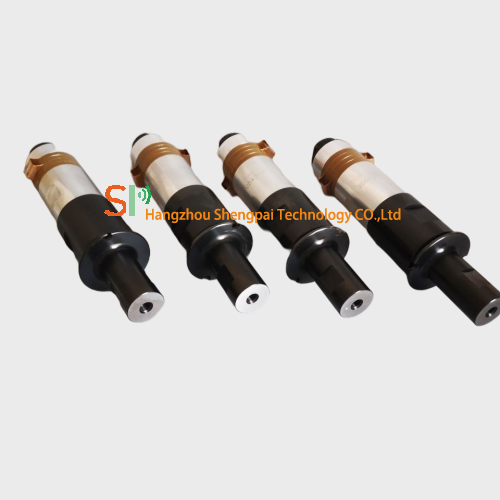

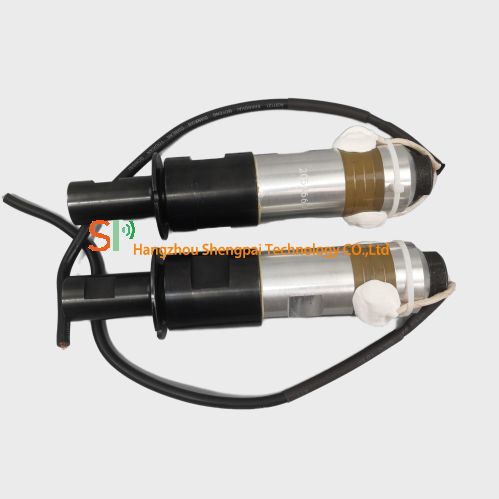

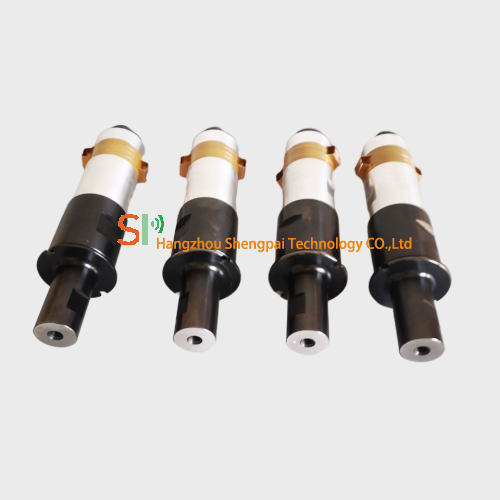

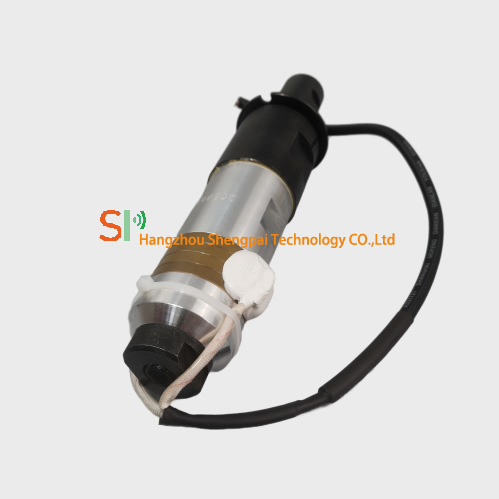

20Khz High Frequency Ultrasonic Welding Converter for Mask Machine
| FOB Price: | 10.00 - 300.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Week |
| Shipping: | shanghai |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: SP-5020-4Z
- Material: Steel
- color: silver-coloured
- warranty: 2.5kg
- Certification: CE
Specifications
Description:
Ultrasound is the conversion of high-frequency electric energy into mechanical vibration through a transducer. the characteristics of the transducer depend on the material selection and manufacturing process. the performance and service life of the transducer of the same size and shape are very different. Commonly used high-power ultrasonic transducers are used in ultrasonic plastic welding machines, ultrasonic metal welding machines, various handheld ultrasonic tools, continuous working ultrasonic emulsifying homogenizers, atomizers, ultrasonic engraving machines and other equipment. Commonly used 15KHz 20KHz 28KHz 35KHz 40KHz 60KHz 70KHz and other products can also design and manufacture non-standard transducers according to customer special requirements to meet various needs.

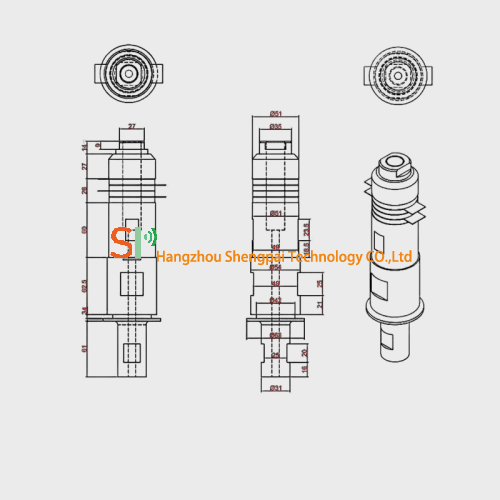

Specifications:
Model |
SP-5020-4Z |
Frequency |
20Khz |
Output power |
2000Watt |
Joint bolt |
3/8-24UNF |
Ceramic disc Diameter |
50mm |
Quantity of Ceramic discs |
4pcs |
Capacitance |
11-13nF,13-14nF,11-17nF |
Amplitude |
10um |
Application |
Welding machine |

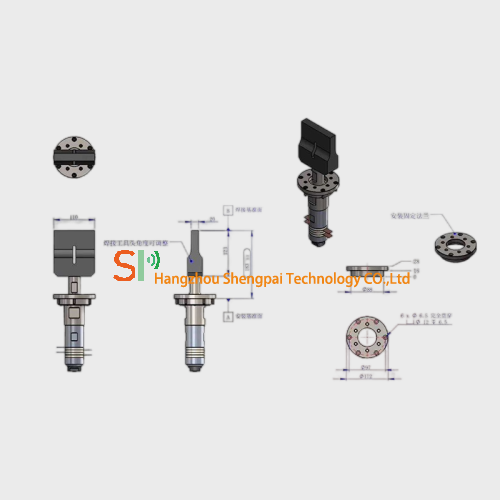

Applied Range: Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole Ultrasonic system, Which can be widely used to do welding in various kinds of industries.
Applied Industries: AUtomobile industry, electric industry, medical industry, household appliance industry, Non-woven fabric, clothing, packing, office supplies, toys, etc.
Applied Machines: Mask machines, sealing machine, uLtrasonic cleaner, Welding machines, Cutting machines, Medical scalpel and tar clear.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. the properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.
6. Provide customized service
7. One year warranty
