Zhuzhou Hongtong Tungsten Carbide Co., Ltd.
China Manufacturer with main products: Wire Drawing Nib, Cold Heading Die, Valve Ball Seat, Carbide Strip/Bar, Carbide Buttons, Carbide Rod, Carbide Plate, Brazed Inserts |
Tungsten Carbide PDC Substrate for Drill Bits
| FOB Price: | 1.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000,000 Piece(s) per Month |
| Shipping: | courier |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hunan in China |
| Packaging Details: | customized |
Quick Details
- Use: Well Drilling
- Material: Tungsten Carbide
- Type: Core Drill Bit
- Brand Name: HONGZUAN
- Color: metal
- Model Number: various
Specifications

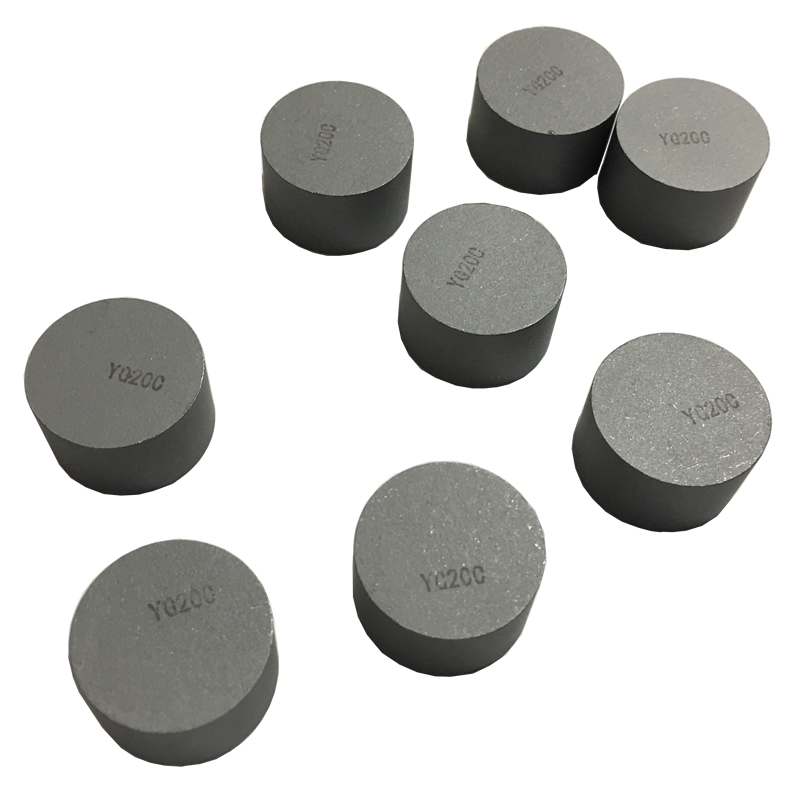

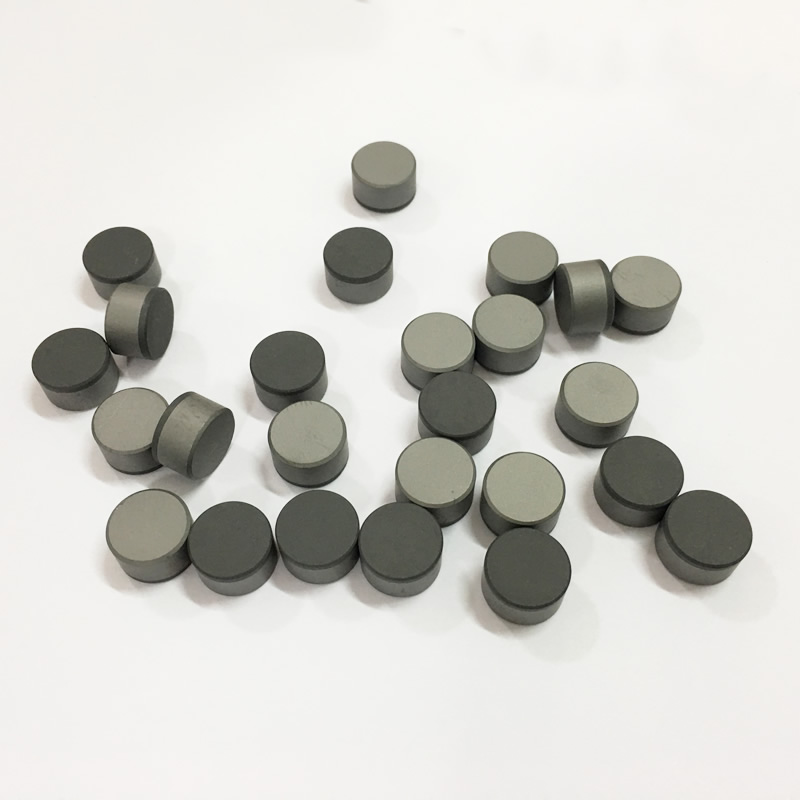

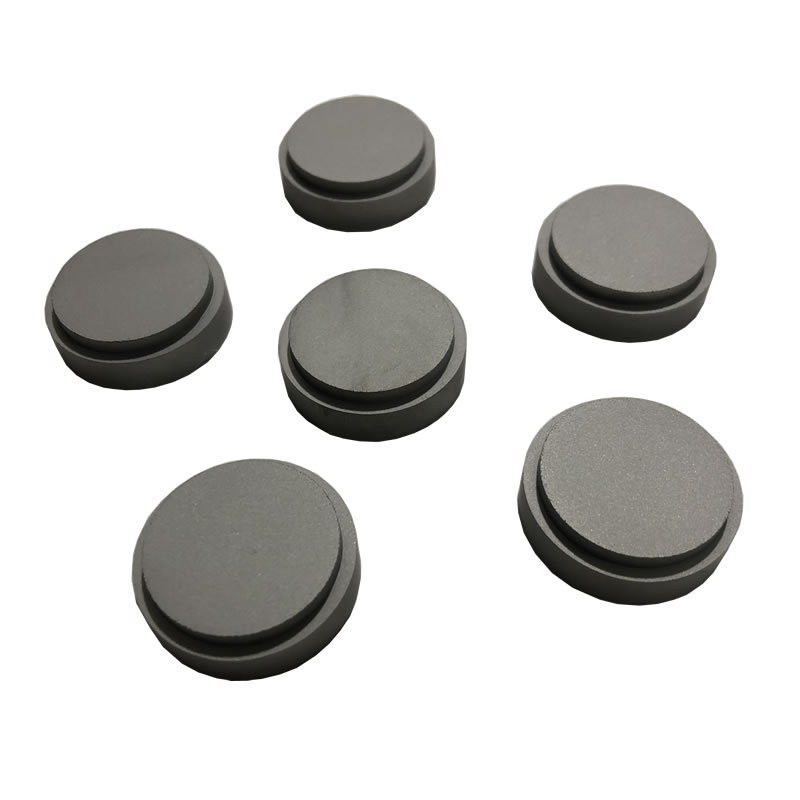

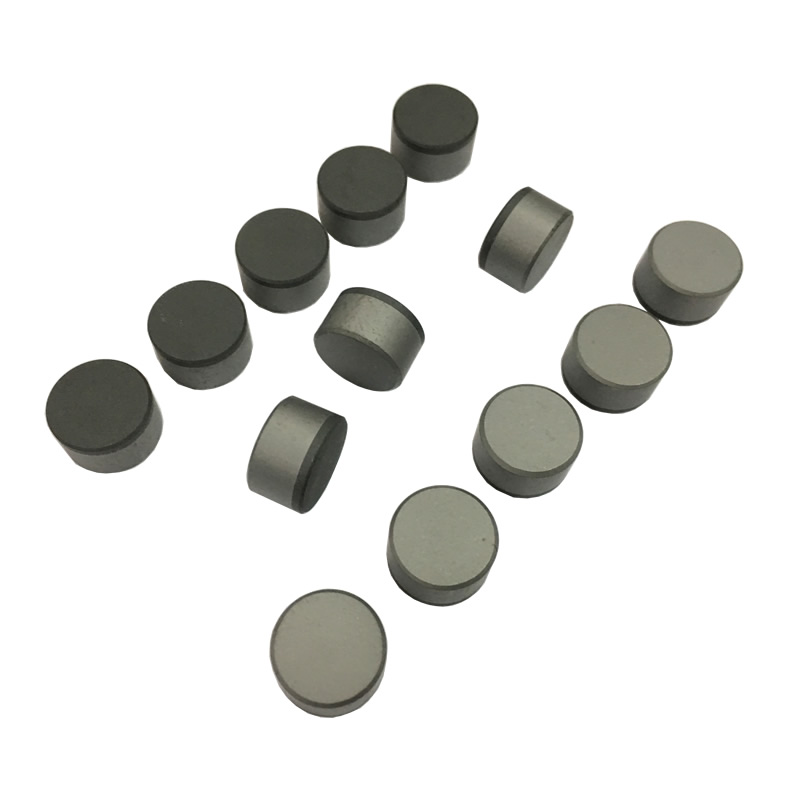

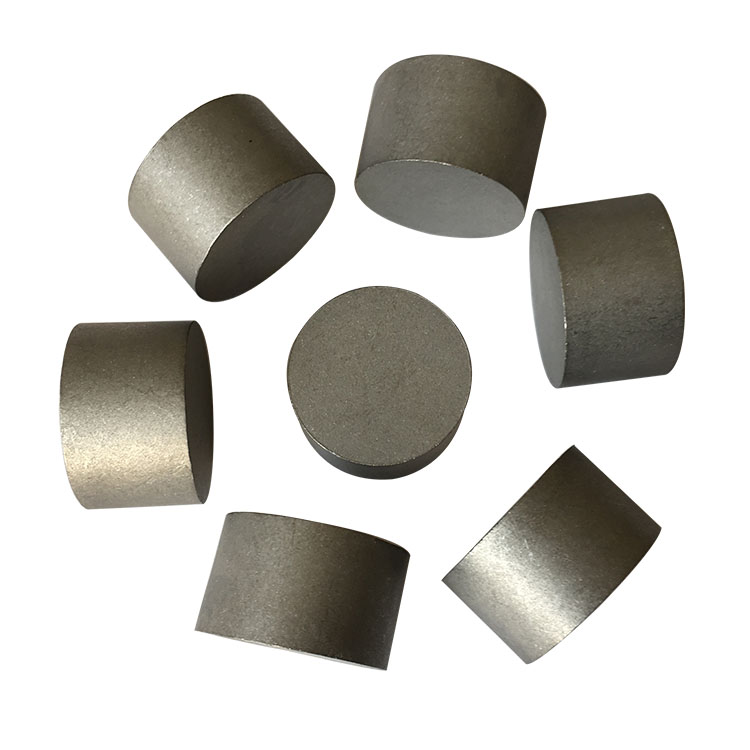

Tungsten Carbide PDC Substrate
Polycrystalline diamond (PCD) is very hard, even harder than tungsten carbide. so there're polycrystalline diamond cutter (PDC), which use a tungsten carbide substrate and layer of PCD coated. this structure can adapt the strength of carbide and hardness of diamond both, so the working life is much longer than others.
RECOMMEND GRADES and SPECIFICATIONS:
| Grade | Main Chemical (%) | Hardness (≥HRA) | Density (g/cm3) | T.R.S (≥N/mm2) | ||||
| WC | Co | Ni | Tic | Other | ||||
| YWN6 | 94 | - | 6 | - | - | 89 | 14.5-14.9 | 1500 |
| YWN8 | 92 | - | 8 | - | - | 88 | 14.4-14.8 | 1650 |
| YWN10 | 90 | - | 10 | - | - | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | - | - | - | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | - | - | - | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | - | - | - | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | - | - | - | 87 | 13.9-14.2 | 2500 |
