Hangzhou Shengpai Technology Co., Ltd.
China Manufacturer with main products: Ultrasonic Welding Machine, Ultrasonic Cutting Machine, Ultrasonic Transdcer, Ultrasonic Converter |

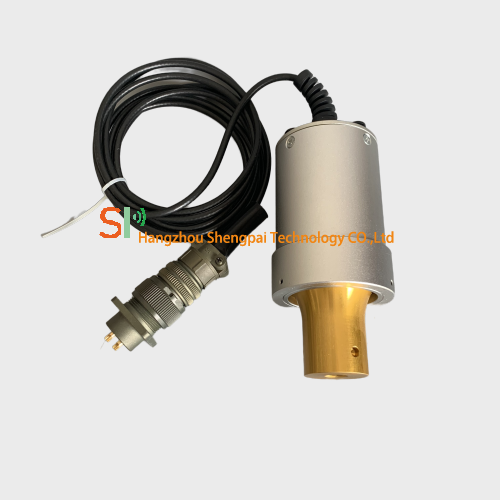

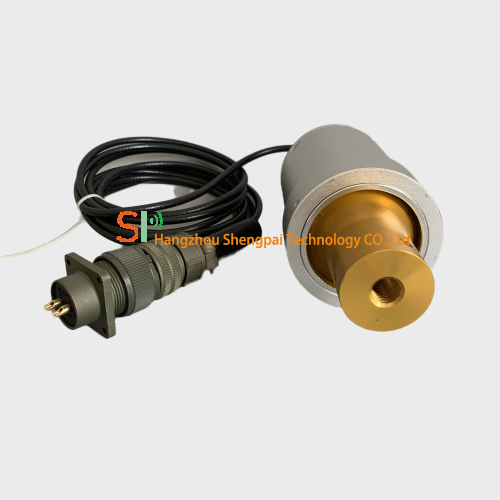

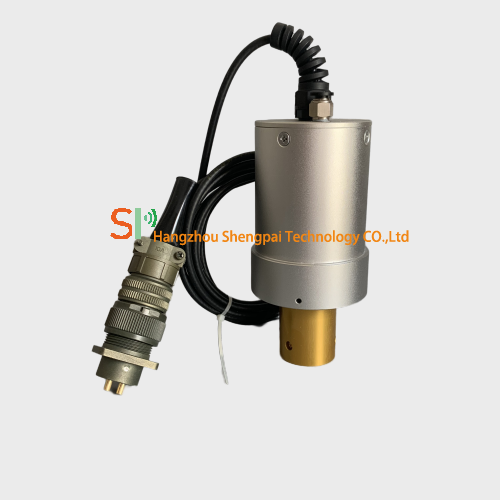

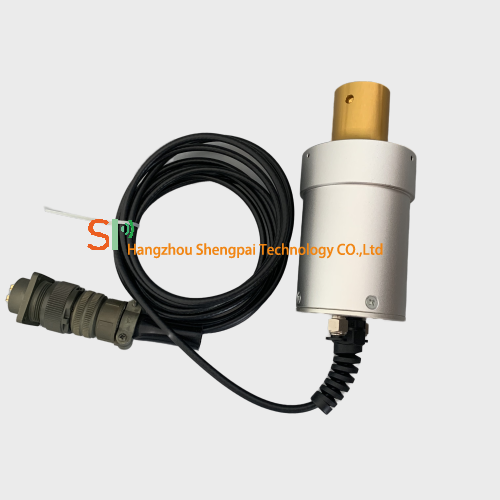

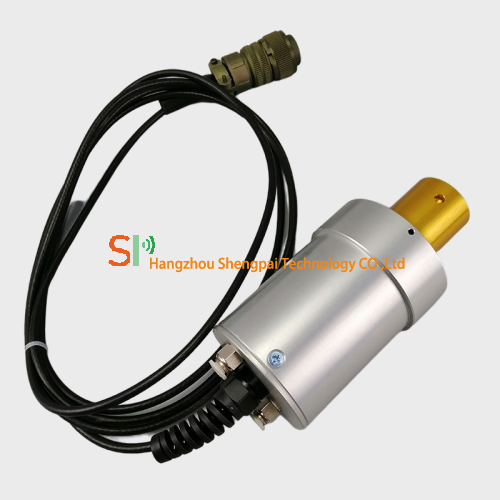

High Quality 20kHz Ultrasonic Welding Converter for Dukane Replacement
| FOB Price: | 10.00 - 600.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Week |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: 20kHz High Power Ultrasonic Converter Dukane41S30 Replacement
- Material: Steel
- Application Industry: motor-dom
- Condition: less than 60 degree centigrade
- Cutting Type: steel
Specifications
Composition of ultrasonic transducer:
the transducer consists of a housing, a matching layer, a piezoelectric ceramic disc transducer, a back liner, a lead cable and a Cymbal array receiver.
Cymbal array receiver is composed of 8 ~ 16 Cymbal transducers, two metal rings and rubber gaskets.
the piezoelectric ceramic disc transducer is used as the basic ultrasonic transducer, by which the ultrasonic signal is transmitted and received.
the Cymbal array receiver is located on the disc type piezoelectric transducer, and acts as an ultrasonic receiver to receive Doppler echo signals outside the frequency band of the disc transducer.
Specifications:
Model |
Dukane 41S30 Replacement |
Frequency |
20Khz |
Output power |
1000~3000Watt |
Joint bolt |
1/2-20UNF |
Ceramic disc Diameter |
50mm |
Quantity of Ceramic discs |
4pcs |
Capacitance |
11nF |
Application |
Welding machine |
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system, which can be widely used to do welding in various kinds of industries.
Applied Industries:
Automobile industry, electric industry, medical industry, household appliance industry,
Non-woven fabric, clothing, packing, office supplies, toys, etc.
Applied Machines:
Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.
