TKBPXZ Variable Frequency Series AC Resonant Test System

FOB Price:	6159.00 - 15397.00 USD/Set
Supply Ability:	10 Set(s) per Month
Payment Terms:	T/T, Other

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	Southeast Asia
Place of Origin:	Hubei in China

Quick Details

Brand Name: gdmk
color: other
Elongation at Break: output frequency30 300Hz
Min. Bending Radius: Quality factor30~90
Consistency of rod: Instability0.05%
Model Number: TKBPXZ
Quality factor: 30~90

Specifications

Product DescRiption

Transformer GIS SF6 switch CT/PT insulator bus bar cable bushing and others capacitive devices are the common primary electric equipments.

the complete set of frequency conversion series resonance test equipment is mainly used for AC withstand voltage test of cross-liNked cable, hydraulic generator, main transformer, bus GIS etc.

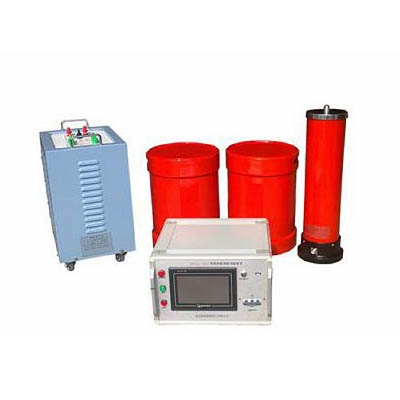

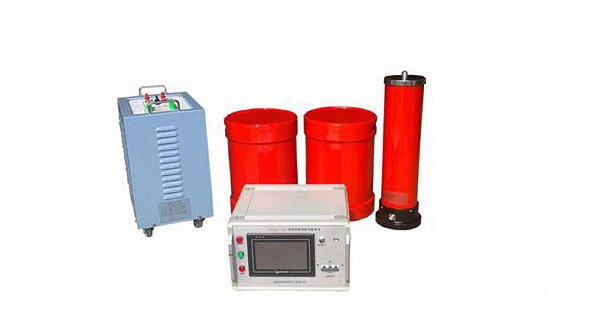

the complete set of frequency conversion series resonance test equipment is mainly composed of frequency conversion control power, supply excitation, transformer reactor, capacitor voltage divider and compensation capacitor (optional).

Product features

1, the reactor of the same voltage grade and capacity has smaller volume and lighter weight. Small temperature rise at rated load; Dry pouring high mechanical strength good electrical insulation beautiful and reliable.
2, Large capacity margin of frequency conversion power control box; Strong protection function; Good output waveform; Good stability; with a variety of working modes easy to operate; Single-phase 220V or three-phase 380V input power supply is common which is convenient for on-site power collection.
3, Flexible configuration. Can choose different types of reactor meet the requirements of different test products achieve a multi-purpose cost-effective.

Product Parameters

Technical parameter

Rated output voltage	01000kV and below
Output frequency	30300Hz
Resonance voltage waveform	Pure sine wave waveform distortion rate≤1.0%
Working time	Full power continuous working time of 60min
Quality factor	30~90
Frequency regulation sensitivity	0.1Hz
Instability	0.05%
Working power supply	Single-phase 220V or three-phase 380V±10%
Working power supply	Power frequency 50Hz±5%

Serial product configuration(Application range (10kV ~ 500kV voltage grade substation electrical equipment AC withstand voltage equipment frequency 30 ~ 300Hz))

Product model name	Variable frequency source	Resonant reactor	Exciter transformer	Voltage divider	Scope of application
TKBPXZ-50/50	4kW	25kV/1A two(dry)	4kVA(dry)	50kV	1000kVA and below 10kV power transformer. 10kV switch bus PT CT etc. 10 kv (300mm²) cable 1.0 km or less
TKBPXZ-108/108	6kW	27kV/1A four(dry)	6kVA(dry)	110kV	31500kVA and below 35kV power transformer. 35kV switch bus PT CT etc. 10 kv (300 mm²)cable≤2km.35kV (300mm²)cable≤0.5km
TKBPXZ-200/200	10kW	50kV/1A four(dry)	10kVA(dry)	200kV	50000kVA and below 110kV power transformer.110kVGIS, PT, CT etc.(Preventive test).35kV(300mm²)cable≤1.0km.10kV (300mm²)cable≤2.0km
TKBPXZ-270/270	15kW	45kV/1A Six sets of(dry)	15kVA(dry)	300kV	50000kVA and below 110kV power transformer.110kVGIS, PT, CT etc..35kV(300mm²)cable≤1.2km.10kV (300mm²)cable≤3.0km
TKBPXZ-800/400	30kW	50kV/2A eight(dry); 100kV/2A four(oil-immersed)	30kVA(dry); 30kVA(oil-immersed)	400kV	80000kVA and below 220kV power transformer.50000kVA and below 110kV power transformer.110kV/220kVGIS, PT, CT etc..35kV(300mm²)cable≤2.0km.110kV (300mm²)cable≤0.7km
TKBPXZ-1600/800	60kW	200kV/2A four(oil-immersed)	60kVA(dry)	800kV	220kV power transformer of 80000kVA and below.50000kVA and below 110kV power transformer.500kVGIS, PT, CT etc..220kV switch, GIS, PT, CT etc..110kV(400mm²)cable≤1.5km.220kV (400mm²)cable≤1.0km
