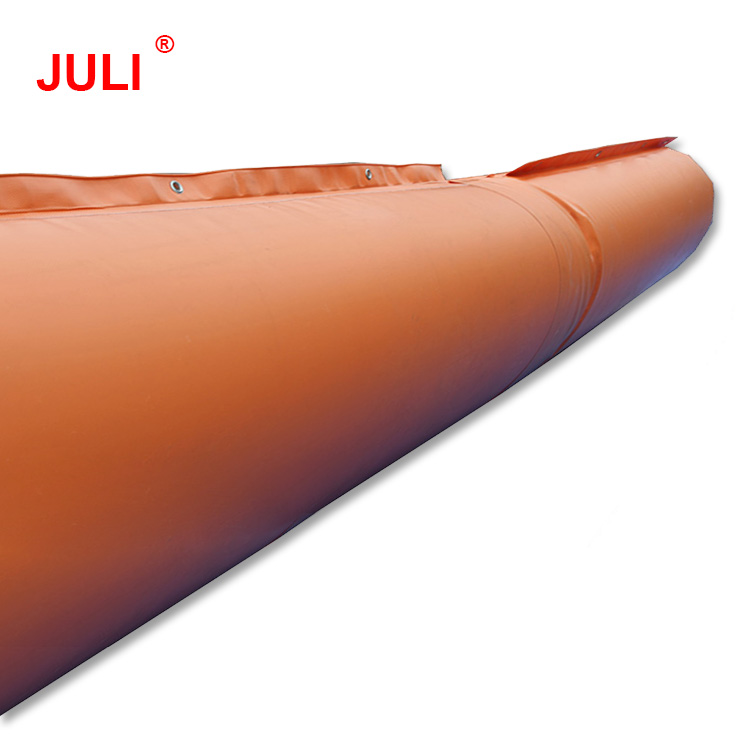

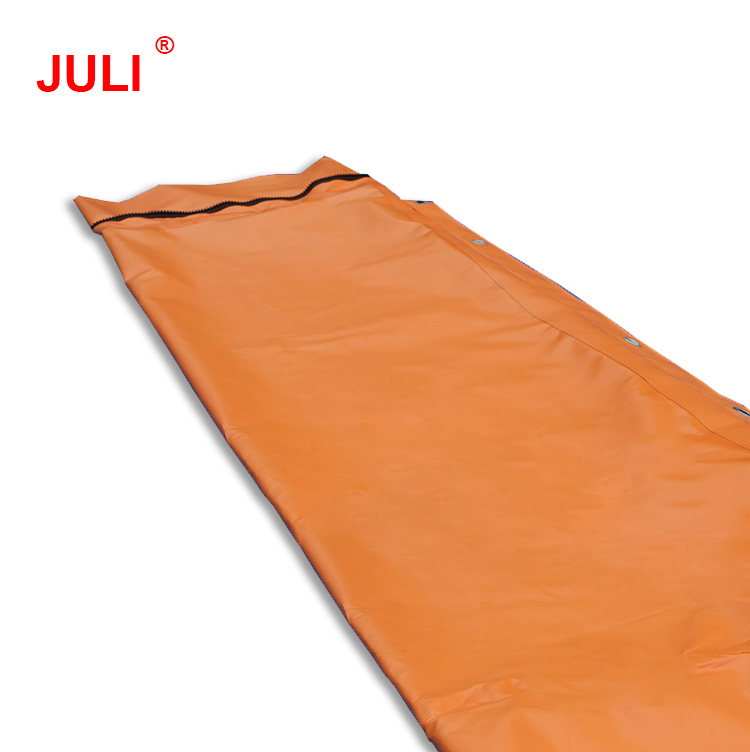

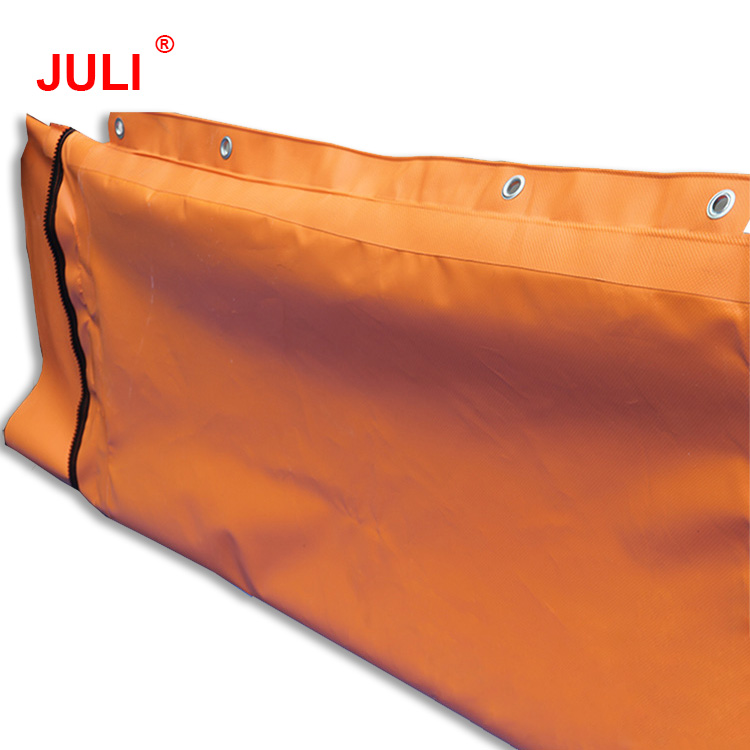

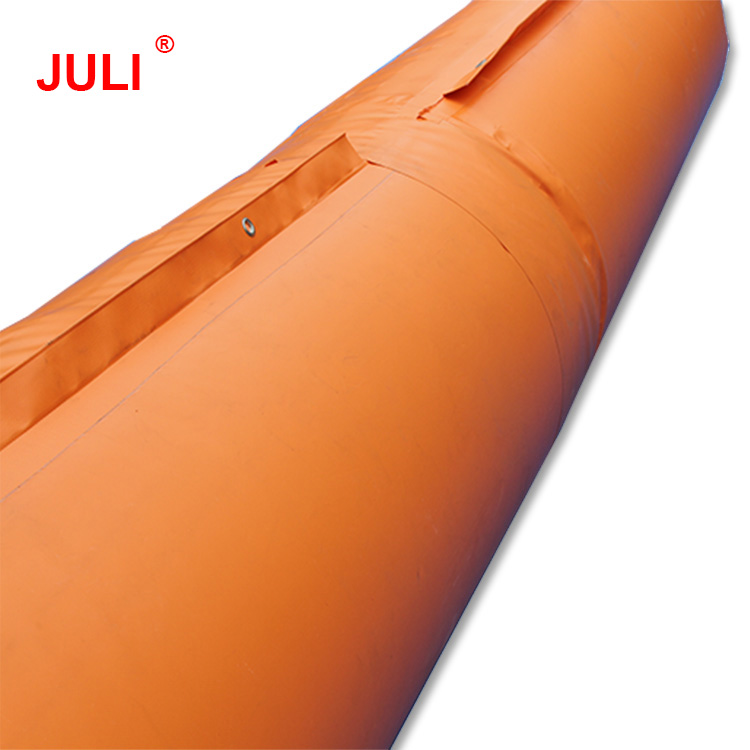

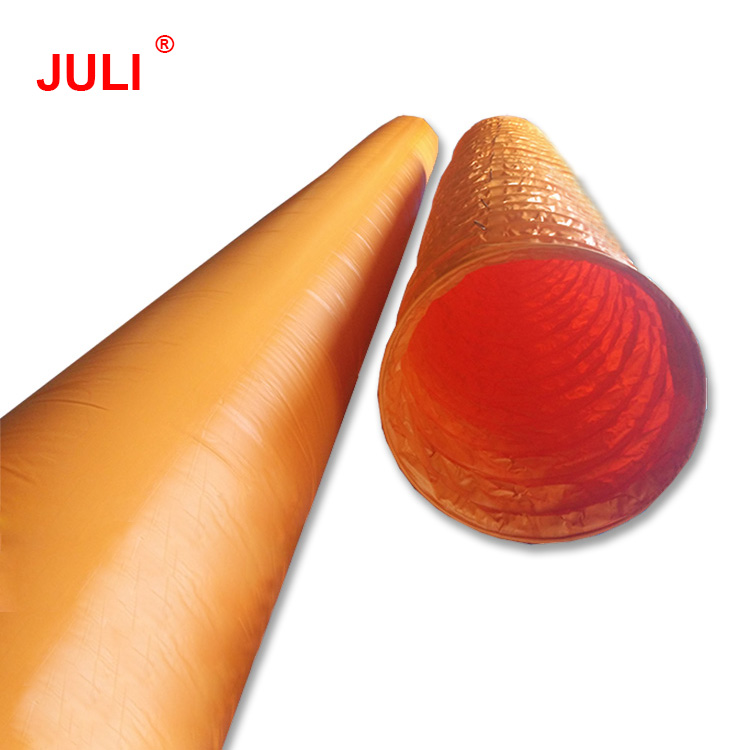

Flexible Ventilation Tube for Mining & Tunnel

FOB Price: 7.50 - 20.00 USD/Meter
Supply Ability: 2,000,000 Meter(s) per Year
Shipping: Sea, air, train
Payment Terms: L/C, D/A, D/P, T/T, Western Union
In Stock

Related products from verified members

Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Sichuan in China

Quick Details

  • Type: Ventilation
  • Brand Name: JULI
  • Certification: ISO 9001:2015
  • Size: 300-3000 diameter
  • color: Yellow, Customized

Specifications

Main Advantages:


  • Flame resistance conforms to EN71-2: 2011/DIN4102/UL94/DIN75200.

  • Woven/knitted polyester fabric with both sides PVC coated.

  • Low friction loss.

  • Dual suspension fin/tab to withstand double pressure.

  • Seam welded by hot air or HF to be airtight and provide low leakage.

  • High wear resistance and tear strength.

  • Anti-static feature(<3*108) optional.

  • Diameter range 300-3000mm.

  • Standard length 20m, custom length is available.

  • Standard coupling: sealing flap extend, other connection way is available.

  • Annual production 2,000,000m for ventilation ducts and 15,000,000 m2 duct fabric, fully meet your needs.

  • Ready for fast and easy installation.

  • Apply for related certification as different country or region.






Technical details:



Item Unit Result
Fabric Color - Black, yellow, orange or customized
Base fabric  - Knitted/woven polyester fabric with both sides PVC coated
Weight G/m2 400-900 or customized
Length m 1-300 or customized
Seam strength N/50mm 1000-2500 or customized
Tensile strength (warp/weft) N/50mm 1500-3000 or customized
Tear strength(warp/weft) N 400-600  or customized
Adhesion strength N/50mm 60-100 or customized
Antistatic <3*108  or optional
Wind pressure resistance PA 3000-10000
Flame retardant - EN-71/UL94/DIN4102  or customized
Duct Diameter mm 300-3000 or customized
Longitudinal seam(related to length) pcs 1-4
Circumferential seam(related to diameter) pcs 1-5
Sealing flap extend mm 100-200
Non-perpendicularity with duct axes 3
Steel ring material - Spring manganese steel or cold drawn steel
Diameter of steel ring mm 5-10 or customized
Grommet spacing mm 500-800  or customized
Suspension way - Suspension fin/patch or customized
Connection way  - Steel ring or zipper coupling
Torsional capacity Duct length (5m) mm 1/24 of circumference
Duct length (>5m) 1/16 of circumference
PS: All of the above data can be customized.
