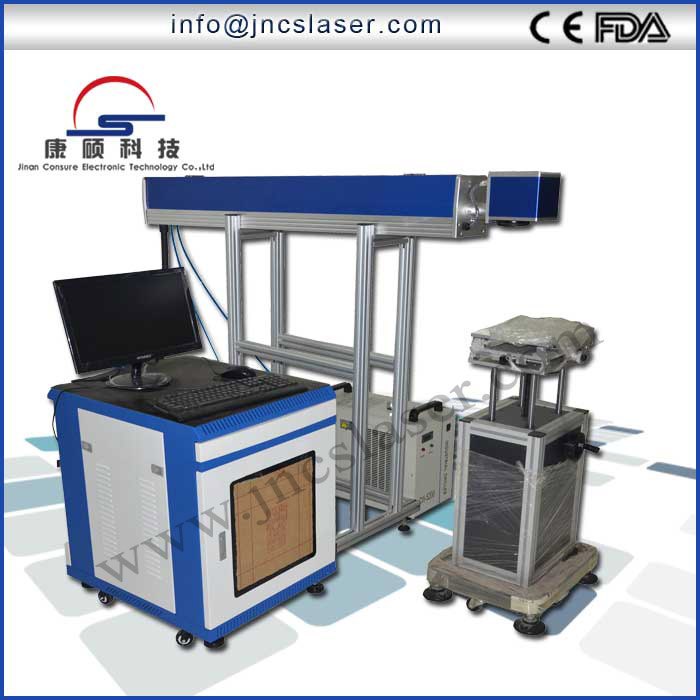

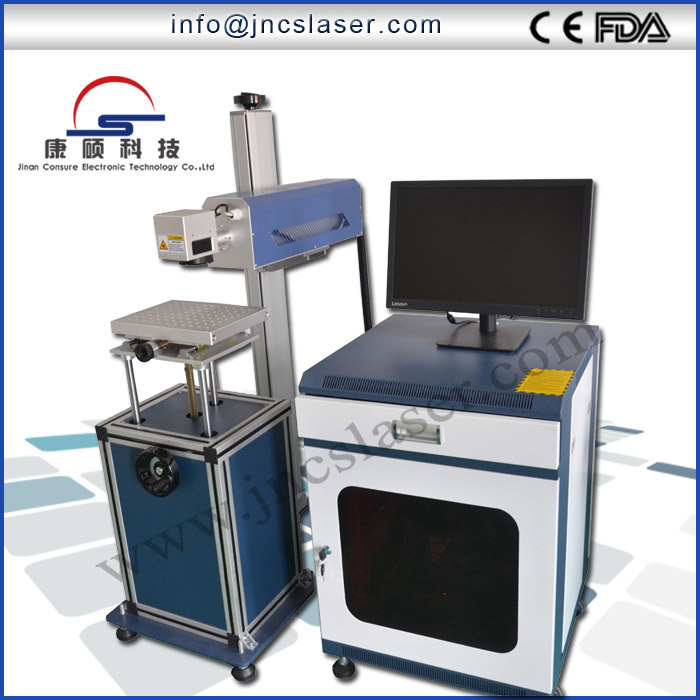

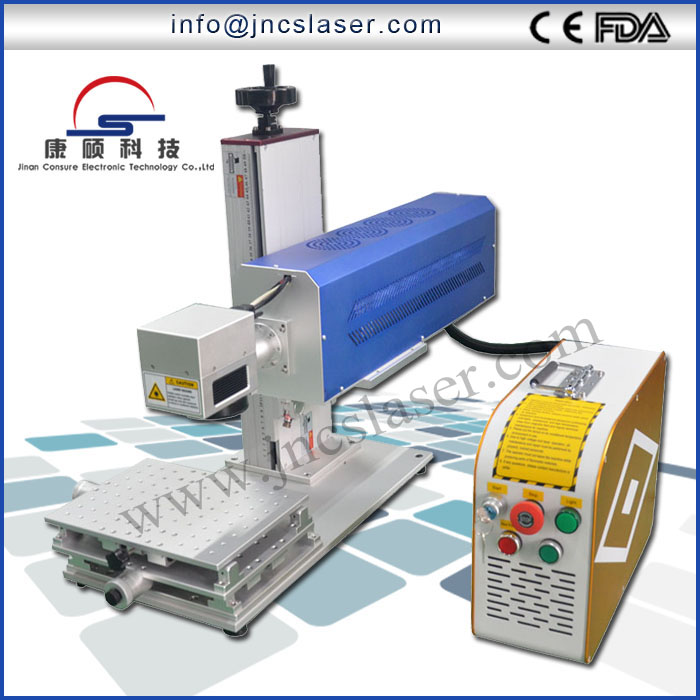

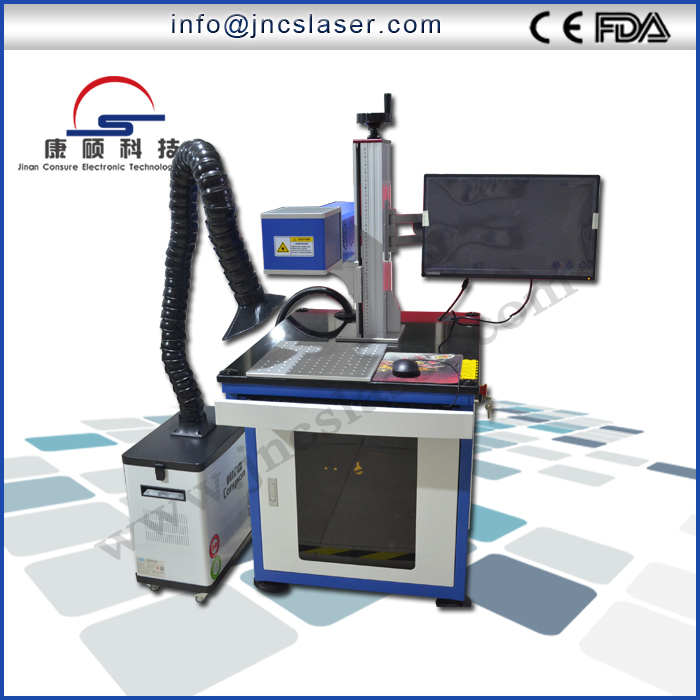

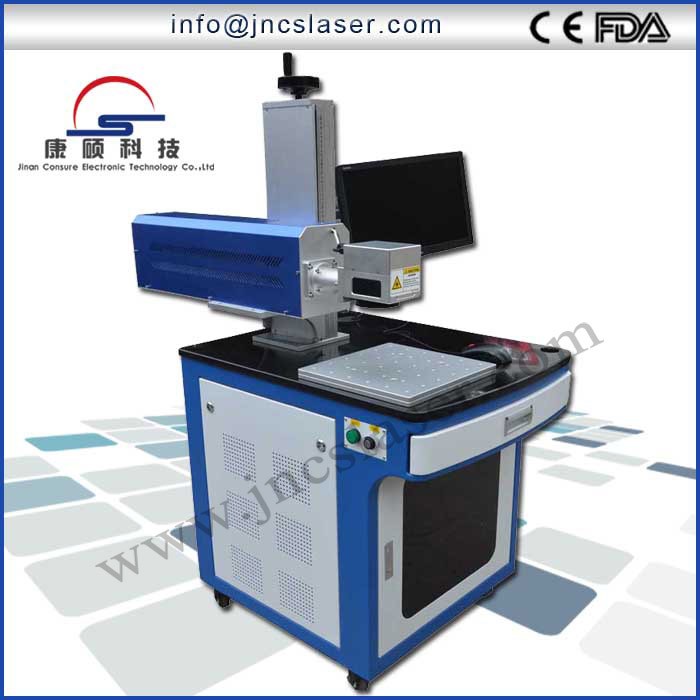

CO2 Laser Marking Machinery for Glasses Marking

FOB Price:	2500.00 - 3500.00 USD/Set
Supply Ability:	1,000 Set(s) per Year
Shipping:	5-7woking days after payment, machine will be shipped by air or by sea from qingdao port
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shandong in China
Packaging Details:	plywood box

Quick Details

Application: Laser Marking
Certification: CE
Brand Name: CS
Graphic Format Supported: AI,BMP,DXF,PLT,TIF JPG
Condition: New
Applicable Material: most of nonmetal materials
Power(W): 40w/60w/100w
Control Software: Beijing JCZ EZCAD
Cooling Mode: Air Cooling
CNC or Not: Yes
Laser Type: CO2
laser source: 40w/60w/100w
Wave length of laser: 10.6nm
Laser Head: Scanning head
Marking scope: 110*110 /140*140mm/210*210mm/300*300mm optional
Marking Line width: 0.03mm

Specifications

co2 laser marking machine

Machine Feature:

1.High precision and fast speed. Marking depth is controllable optionally.

2.Wide application. It can mark most non-metals.

3.No consumption and pollution.

4.the marking lines are clear, it can withstands heavy wearing.

5.Chinese and English software are optional. the software works in Windows environment and it is compatible with many file formats, for instance, PLT, PCW, DXF, BMP and others saved by CORELDRAW, AUTOCAD, PHOTOSHOP and other softwares. Meanwhile, SHX and TTF can be imported into the software directly.

Technial Parameters

Model:CO2RF40W RF60W

Wave length of laser:10.6μm

Laser repetition frequency: ≤25KHZ

Laser power:RF 40W or 60W

Marking scope:110*110 /140*140mm/210*210mm/300*300mm Optional

Marking depth:≤0.3mm(adjustable according to materials)

Laser Head:Scanning head

Linear Speed:≤7000mm/s

Min.Line Width:0.03Mm

Min.Letter:0.2Mm

Repeated accuracy:±0.01mm

Cooling ways: AirCooling

Power supply: AC220V/ 50Hz

Process Material:Process Material

Support format:PLT, BMP, DXF, JPG, TIF, AI etc

Industry Application:

Tobacco, food and beverages, wines, medical packing, leather, plastic, rubber, wood products, advertisement, arts and crafts, glass, printing, ornament,etc

Marking Materials:

Leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate, non-metals etc.

Samples:
