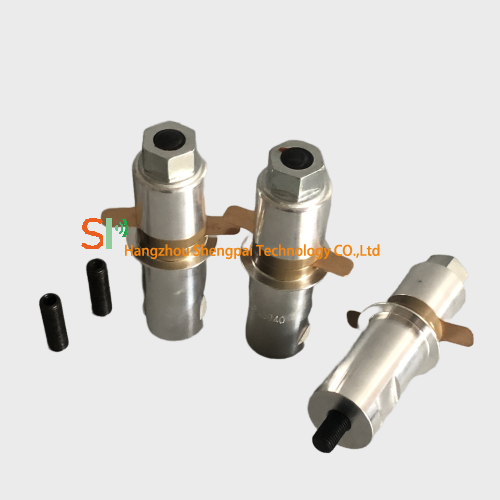

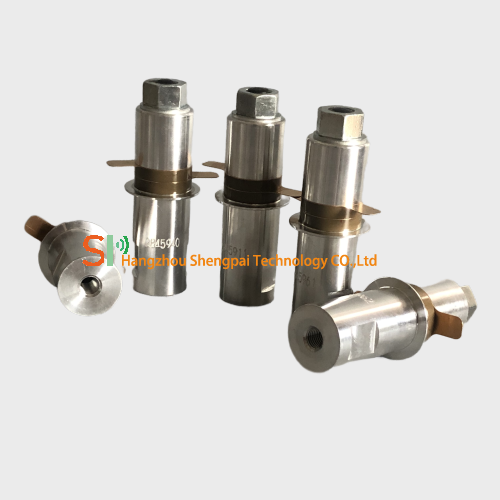

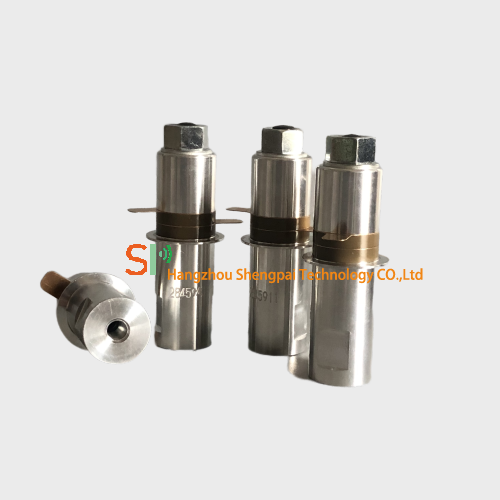

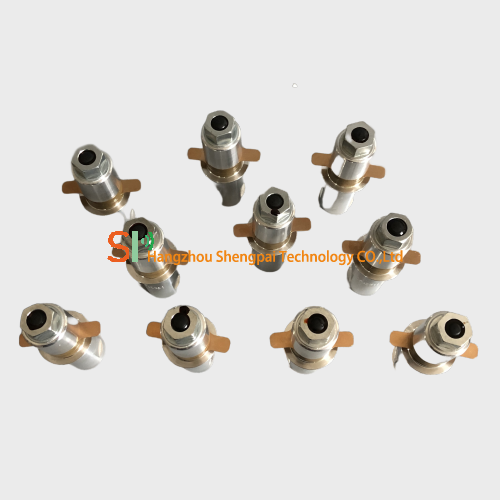

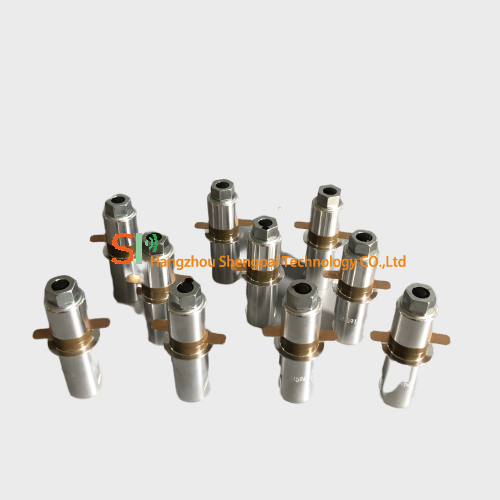

28kHz 300W High Quality Ultrasonic Transducer
| FOB Price: | 10.00 - 299.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: SP
- Color: silver-coloured
- Material: Steel
- OEM: hangzhou shengpai technology Co.,Ltd
- Description: 28KHz converter
Specifications
Composition of ultrasonic transducer:
the transducer consists of a housing, a matching layer, a piezoelectric ceramic disc transducer, a back liner, a lead cable and a Cymbal array receiver.
Cymbal array receiver is composed of 8 ~ 16 Cymbal transducers, two metal rings and rubber gaskets.
the piezoelectric ceramic disc transducer is used as the basic ultrasonic transducer, by which the ultrasonic signal is transmitted and received.
the Cymbal array receiver is located on the disc type piezoelectric transducer, and acts as an ultrasonic receiver to receive Doppler echo signals outside the frequency band of the disc transducer.
Specifications:
Model |
SP-2528-2Z |
Frequency |
28Khz |
Output power |
300Watt |
Joint bolt |
M8*1 |
Ceramic disc Diameter |
25mm |
Quantity of Ceramic discs |
2pcs |
Capacitance |
1.95~2.25nF, 2.3~2.5nF |
Amplitude |
3um |
Application |
Spot Welding Machine |
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system, which can be widely used to do welding in various kinds of industries.
Applied Industries:
Automobile industry, electric industry, medical industry, household appliance industry, non-woven fabric, clothing, packing, office supplies, toys, etc.
Applied Machines:
Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. the properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.
6. Provide customized service
7. One year warranty
