TKJYX-III 50kv Dielectric Boots & Gloves Withstand Voltage Hipot Te
| FOB Price: | 6159.00 - 15397.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Payment Terms: | T/T, Other |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
-
Price:10,000.00-10,000,000.00 USD/SetMin. Order:1 Set -
Price:100.00-1,000.00 USD/PieceMin. Order:1 Piece
| Export Markets: | Southeast Asia |
|---|---|
| Place of Origin: | WUHAN in Chile |
Quick Details
- Brand Name: gdmk
- color: blue and red
- Elongation at Break: Voltage15kV
- Min. Bending Radius: time1min
- Consistency of rod: Resolution0.1kV0.1mA
- Model Number: TKJYX-III
- Leaking Current: No breakdown
Specifications
Product Introduction

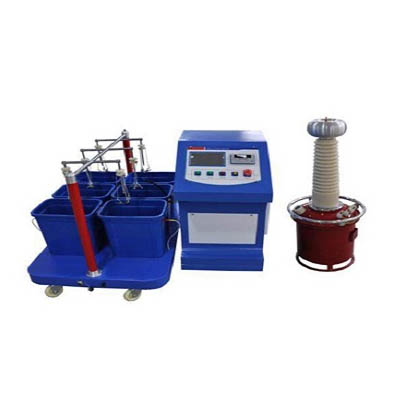

Insulation boot (glove) withstand voltage is designed and manufactured by our company according to the test procedure of insulated boots (gloves) and in accordance with the opinions of users. Insulation boot (glove) withstand voltage uses automatic (lower) voltage to automatically read out the leakage current of each test item. the whole test process is completed automatically and the test data is automatically printed which effectively solves the irregular test method in the past. this simplifies the testing procedures and improves the testing speed. More reliable identification of the leakage current of the insulated boots (gloves) power frequency withstand voltage and other parameters. It is the ideal equipment for insulating boots (gloves) to ensure the safety of test workers. Its main features: test 6 test items at the same time and read the leakage current of each test item to accurately judge the unqualified test items; the test vehicle is equipped with casters at the bottom for easy movement using a large white light display under strong light Still clearly visible with a one-click shuttle easy to operate with a good interactive experience.
Product features Product Characteristics
1 automatic and fast: the use of high-fine stepper motor to control the voltage regulator boost process according to the national standard test parameters fully automatic pressure test. after the test starts the instrument automatically closes and automatically boosts the boosting speed according to the national standard. It reaches the scheduled voltage and starts to count and keeps the test voltage. It automatically depressurizes the timer until the preset time. after zero the power is automatically turned off indicating that the test is over. Display each sample leak Current and display the test result
2 full-featured: full Chinese interface work status display simple and clear operation wide application; with status display with reminder function the user can see the status of the device at a glance; rotate the mouse operation all functions can be rotated by one Mouse setting all digital adjustment abandoned the old potentiometer adjustment mode the field is very convenient to use; button directly set the target Voltage leakage Current pressure time application freely
3 intelligent security protection: with Current over the protection of the Voltage. Accurate and fast protection ensuring the safety of personnel and equipment
4 output Voltage large measurement is convenient and flexible: the device can customize the output of any voltage of 1-30kV the leakage Current threshold can be set arbitrarily 1-20mA the test time can be arbitrarily set 1-10min and the common insulation equipment parameters are in accordance with the national standard. Integrated synthesis module easy and quick to test
5 friendly man-machine interface: white light large screen 320*240 dot matrix Chinese character graphic interface clear and beautiful writing; can be clearly visible under strong light using high-performance rotating mouse easy to operate long life; comes with high-speed micro printer instant print test data
Product Parameters
Technical Parameters
| Insulating boot test | Voltage | 15kV |
| Leakage current | ≤6mA | |
| time | 1min | |
| Resolution | 0.1kV, 0.1mA | |
| Precision | Voltage±(2%3d)Current±(2%3d) | |
| Insulating glove test | Voltage | High pressure: 8kV Low pressure: 2.5kV |
| Leaking Current | High pressure≤9mA Low pressure≤2.5mA | |
| time | 1min | |
| Resolution | 0.1kV, 0.1mA | |
| Precision | Voltage±(2%3d)Current±(2%3d) | |
| Insulating rubber pad test | Voltage | High pressure: 15kV Low pressure: 3.5kV |
| Leaking Current | No breakdown | |
| time | 1min | |
| Resolution | 0.1kV, 0.1mA | |
| Precision | Voltage±(2%3d)Current±(2%3d) | |
| Custom test | Voltage | 1-30kV |
| Leaking Current | 1-20mA | |
| time | 1-10min | |
| Resolution | 0.1kV, 0.1mA | |
| Precision | Voltage±(2%3d)Current±(2%3d) | |
| Working power supply | AC220V 50Hz | |
| Output Voltage | 0-30kV | |
| Capacity | 3kVA | |
| Test numbers | 6 pcs each time | |
| Ambient temperature | 10℃ 50℃ | |
| Operating box volume | 35*22*37cm | |
| Operating box quality | 12kg | |
| Test vehicle volume | 75*90*102cm | |
| Test vehicle quality | 60kg | |
