Hyde Science & Technology Limited
China Manufacturer with main products: Test Chamber, Drying Oven |
High Low Temperature & Humidity Test Chamber
| FOB Price: | 12000.00 - 25000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | EXW, FOB, CIF, DAP |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden case |
Quick Details
- Usage: High low temperature and humidity test chamber
- Power: Electronic
- Brand Name: HD
- Warranty: one year
- weight: 500kg
Specifications
High low temperature and humidity test chamber
High low temperature and humidity test chamber is used to assess the performance of the equipment and test materials for resistance to temperature changes and the effects of various moisture conditions.
Model |
TH7006HD |
TH701HD |
TH702HD |
TH705HD |
TH710HD |
Internal volume |
64L |
110L |
252L |
504L |
1000L |
Internal dimensions (D*W*H) |
400*400*400mm |
450*450*550mm |
600*600*700mm |
700*800*900mm |
1000*1000*1000mm |
External dimensions (D*W*H) |
1250*900* 1300mm |
950*900* 1500mm |
1500*850* 1650mm |
1750*1050* 1850mm |
2100*1200*1950mm |
Temperature Control mode |
BTHC: Balanced temperature & humidity control | ||||
Working environment temperature |
+5+35 ℃ | ||||
Performance | |||||
Temperature range* |
-70℃~+150℃ (high temperature: 180℃, optional); (low temperature: -80℃, optional); | ||||
Humidity range |
20~98%R.H. (low humidity: 10%R.H. Optional) | ||||
TempErature fluctuation |
≤0.5℃ | ||||
TempErature uniformity |
≤2.0℃ | ||||
TempErature deviation |
±2.0℃ | ||||
Humidity deviation |
+2~-3% (>75%RH), ±5% (≤75%RH) | ||||
Heating rate |
1...3℃/min. | ||||
Cooling rate |
0.7...1.5℃/min. | ||||
Material | |||||
Shell material |
Cold rolled sheet steel, spray plastics on surface | ||||
Internal material |
Stainless steel | ||||
Thermal insulation material |
Polyurethane foam | ||||

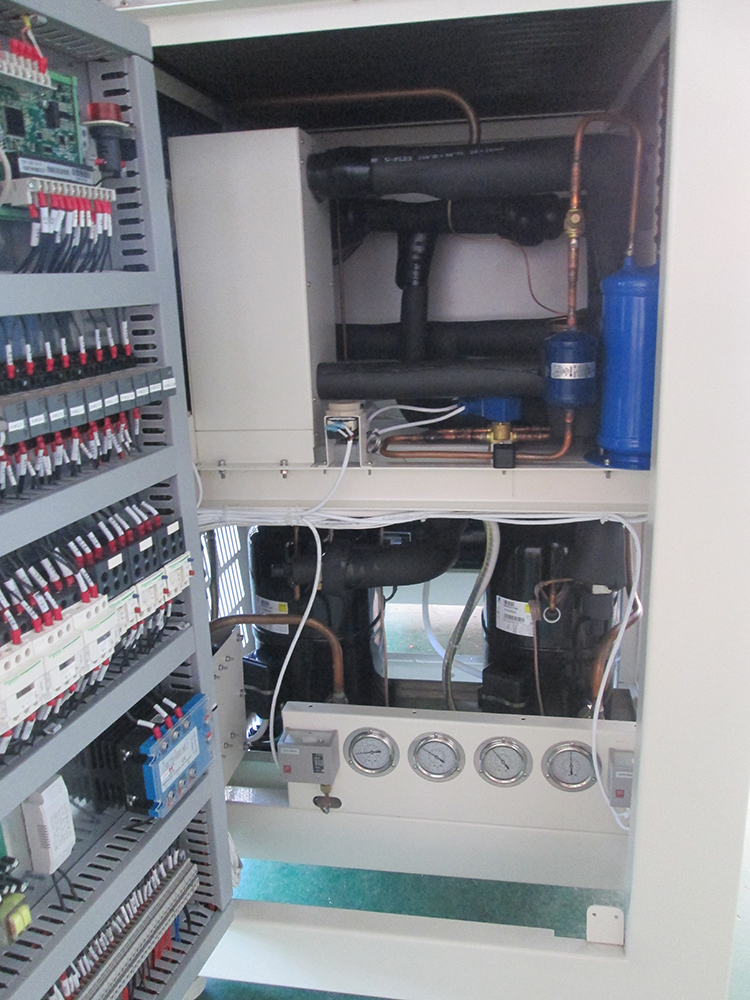

Refrigeration system | |||||
Refrigeration mode |
Mechanical compression, one-stage or two-stage refrigeration | ||||
Compressor |
Imported enclosed compressor | ||||
Refrigerant |
R404A/R23 (-80℃: R508) | ||||
Cooling mode |
Air cooling | ||||
Heater |
Nickel-chromium alloy heating wire | ||||
Blower |
Centrifugal blower | ||||
Humidifier |
SUS304 stainless steel heating pipe; | ||||
Observation window |
260*350mm |
400*470or 400*500 mm | |||
Temperature sensor |
Pt100 | ||||
Controller |
Touch screen, programmable logic controller | ||||
Power supply |
AC220V/380V, 50Hz | ||||
