| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | WOODEN CASE |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Warranty: 1 year
- Certification: CE
- Brand Name: UnionTech
- Condition: New
- Weight: 1400kg
- Dimension(L*W*H): 1500*1200*200mm
- Power(W): 3kw water Cooling Spindle
- Voltage: 220v-440v
- Model Number: UT-1512
- CNC or Not: CNC
- Working area: 1500*1200*200mm
- Control system: DSP Control System
- Spindle: 3kw water Cooling Spindle
- Inverter: 5.5kw Fuling inverter
- X, Y Transmission: Helical rack gears&pinion
- Z transmission: TBI ball screw
- Motor: Yako driver
- Driver: Leadshine 860H
- Table Surface: Vacuum working table with PVC
- Name: wood carving cnc router
Specifications

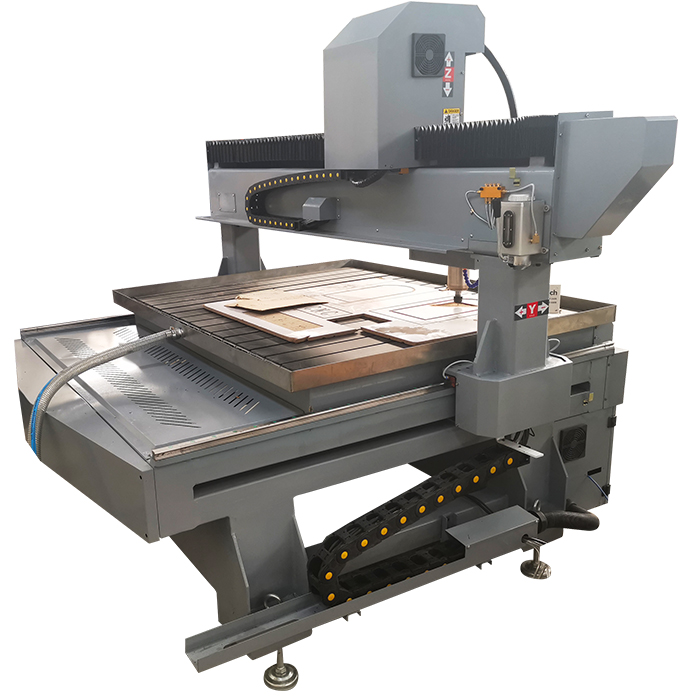

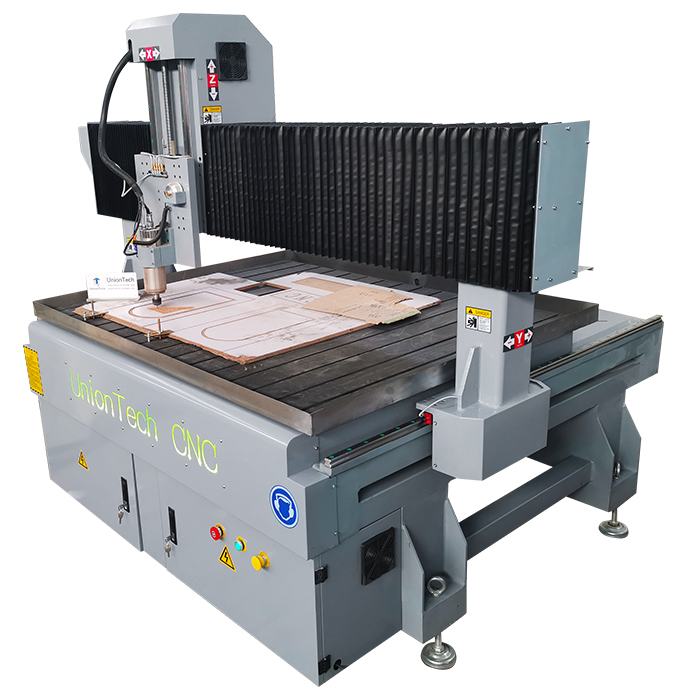

Hot Model 1512 Wood Carving CNC Router with DSP Control System
| Features: |
- Imported original ABBA 20 square guide rails, longer life and smooth moving.

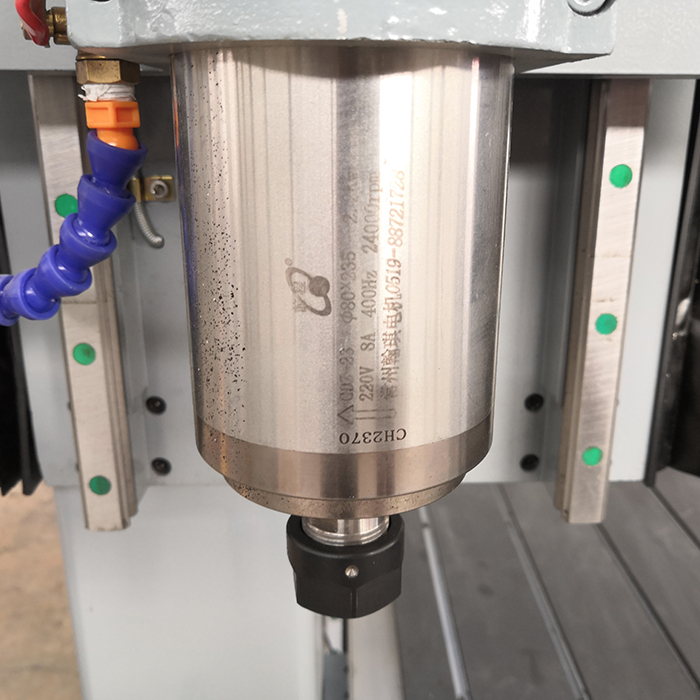

- Chinese best water cooling spindle with 24000rpm.
Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger
Power,longer lifetime,and it makes the machine more stable.
- with DSP control system, It can support offline operation. Easy to operate.
Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful.
for option,we can change toJapan YASKAWA servo or TaiWan DELTA servo motors and drivers.
| Parameters: |
Model |
UT-1512 |
Working area |
1500*1200*200mm (can be customized) |
Working Voltage |
380V, 3PHASE, 50HZ (can be customized) |
Control System |
Ncstudio control system |
Control box |
Computer control box |
Spindle |
3KW air cooling spindle |
Spindle speed |
0-18000RPM |
Motor and Driver |
Leadshine driver and stepper motor |
Inverter |
3.7kw Fuling inverter |
Structure |
Heavy duty thicker and bigger welded frame and gantry |
Table surface |
T-slot and Vacuum Working Table with 4 zones |
Gantry structure |
Thicker steel tube, Gantry Moving |
Vacuum pump |
5.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ) |
Calibration |
Manual tool sensor calibration |
Transmission |
X,Y Axis: Helical rack pinion, Taiwan Hiwin/PMI/CSK 20# Rail Linear Bearing, Z Axis: Taiwan TBI Ball Screw |
Command language |
G Code |
Software |
ArtCam, Ucancam,Type3 |
Optional |
Servo motor, Rotary device: 200mm diameter* 2000mm length |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,Craft sash,
Composite gates, Cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,Crystal word making, Blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial Marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Relief sculpture, 3D engraving & Cylinder object engraving.
| the factory to show: |
Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. with advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.
| FAQ: |
UnionTech standard size and configuration CNC router machine delivery time is 7 days, ATC series machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 25 days.
Q2. Can you send machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, they can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. this is the first time to use CNC router machine, is it easy to operate?
Yes, it is easy for a newer, if you can draw with software, the machine operation is no problem, because we will support:
1).English guide video and instruction book together with the CNC router.
2).Free training course in our factory. Engineers are available to serve overseas.
