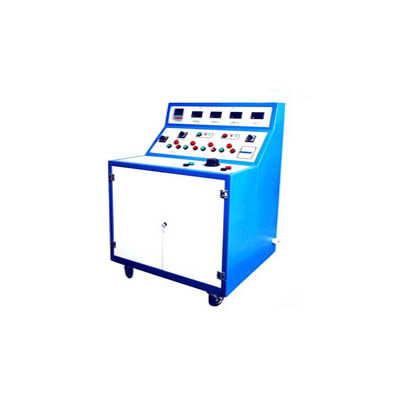

TKKGG-HHV/LV Switchgear Panel Testing Bench

FOB Price:	770.00 - 15397.00 USD/Set
Supply Ability:	10 Roll(s) per Month
Payment Terms:	T/T, Other

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	Southeast Asia
Place of Origin:	Hubei in China

Quick Details

Brand Name: gdmk
color: blue
Elongation at Break: Input: 3 phase 4 line AC 380V
Min. Bending Radius: Input frequency: 50Hz/60Hz is optional
Consistency of rod: DC operating voltage output DC 0-300V adjustable
Model Number: TKKGG-H

Specifications

Tle" style="font-size:18px;white-space:normal;background-color:#FFFFFF;padding:0px 0px 8px;margin:0px 0px 12px;border-bottom:1px solid #DDDDDD;position:relative;color:#00479D;">Product Overview

TKKGG-H Series HV/LV Switch Cabin TKKGGHHVLV Switchgear Panel Testing Bench Et Test Bench is mainly applied for ex-work energized testing for high voltage and low voltage cabinet manufacturers. the test bench could provide various AC/DC power source in order to detect switch cabinet.

Tle" style="font-size:18px;white-space:normal;background-color:#FFFFFF;padding:0px 0px 8px;margin:20px 0px 12px;border-bottom:1px solid #DDDDDD;position:relative;color:#00479D;">
Features

Reading directly: Digital meters to display current voltage power factor test value.

Measuring accurately: High precision test value is accurate.

Full protections: Each circuit is with air switch protection.

Portable: Small size light weight easy to move.

Tle" style="font-size:18px;white-space:normal;background-color:#FFFFFF;padding:0px 0px 8px;margin:20px 0px 12px;border-bottom:1px solid #DDDDDD;position:relative;color:#00479D;">Specifications

Main Technical specifications:

Input: 3 phase 4 line AC 380V

Output voltage and current:

3 phase AC 0-50A output (10V adjustable) one group

3 phase AC 100V output (fixed value) one group

AC operating voltage output is AC 0-380V 220V the current is conventional and adjustable.

DC operating voltage output DC 0-300V adjustable.

Single phase AC 220V output (fixed value plug type) two groups

3 phase 4 line AC 380V output (fixed value wiring port) one group.

Necessary output units to be increased output protection and equipped with air switch.

Power supply: AC 110V/115V/120V/127V/220V/230V/240V is optional

Input frequency: 50Hz/60Hz is optional
