Back up Roller Bearing with Pivot for Metal Flattening Machines

FOB Price:	20.00 - 200.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Shipping:	FOB SHANGHAI
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, Eastern Europe, Eastern Asia
Place of Origin:	Henan in China
Packaging Details:	Polywood case

Quick Details

Type: Roller
Structure: Other Structure
Seals Type: NBR/STEEL+NBR/SHIELD
Precision Rating: P0/P6
Outside Diameter: 30-300 mm
Bore Size: 20-200 mm
Brand Name: LYSYM
Model Number: LYSYM

Specifications

Back up roller bearing with pivot for metal flattening machines

LYSYM for levelers and metal flattening machines are made in two different styles:

with full complement of cylindrical rollers

with roller cages in mould steel or bronze.

the full complement style allows the bearing to reach a high load capacity both dynamic and static.

the roller cage style (made of two or more cages), along with the wide working surface, allow for increased flattening performance and high speed. the distance rings on the outer ring and the pivot, plus the circle clearance, which is calculated at the minimum, allow a good support of axial loads. the style with roller cages represents the most advanced series of back-up rollers.

this series of backup rollers is usually manufactured with two lateral thrust bearings in the inner body, either with balls or rollers, which guarantee a very strong support of axial loads.
Back up roller bearing with pivot structure:

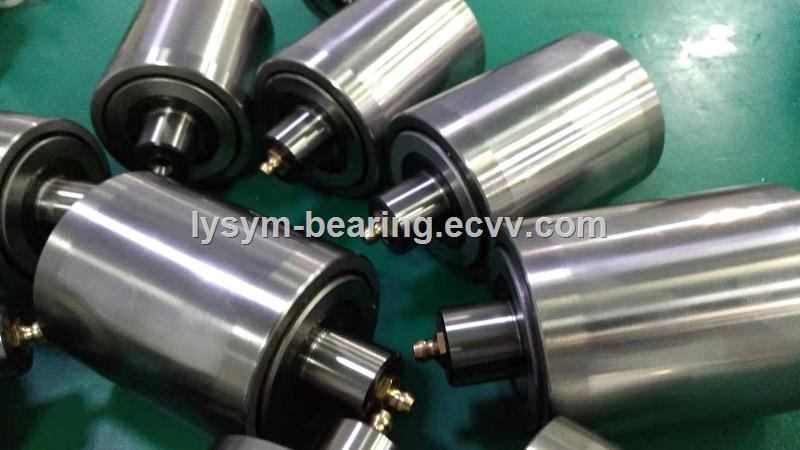

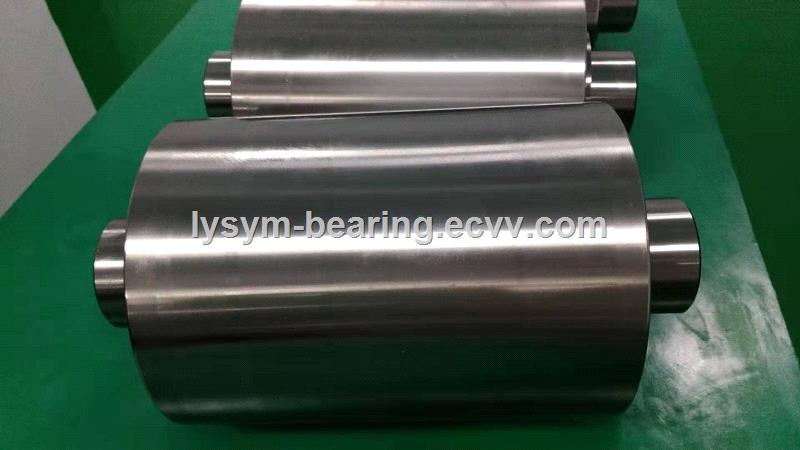

Back up roller bearing with pivot photos for you:

for more info, contact us now!
We OEM for some famous bearing brand in Europe.
LYSYM bearing won't let you down.
