4 Axis Filament Winding Machine with for CNG, LPG, CHG, Hydrogen Cylinder

FOB Price:	150000.00 - 160000.00 USD/Set
Supply Ability:	1 Set(s) per Month
Shipping:	Shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tianjin in China
Packaging Details:	In bulk, wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Usage: Hydrogen
Brand Name: Vidatech
Condition: New
Warranty: 1year

Specifications

the core technology is designed,research, development by Vidatech ourselves.
as multi axis,multi spindles high pressure vessels making filament winding machine Is portal type with 1-5movement axis and 1-6 working spindles.
the roving(glass fiber/carbon fiber) impregnated with resin will be on mandrel by the movement of mandrel rotation, trolley horizontal movement, cross feed and roving comb rotation under the winding pattern control software.
Filament winding direction axis 1-5
Working spindle 1-5
Vessel diameter: DN50-DN1500mm
Vessel maximum length: 2500mm
Fiber tension control system: High precision adjustment 1-20N
Electric Control System: Core Adaptive control system

Application:

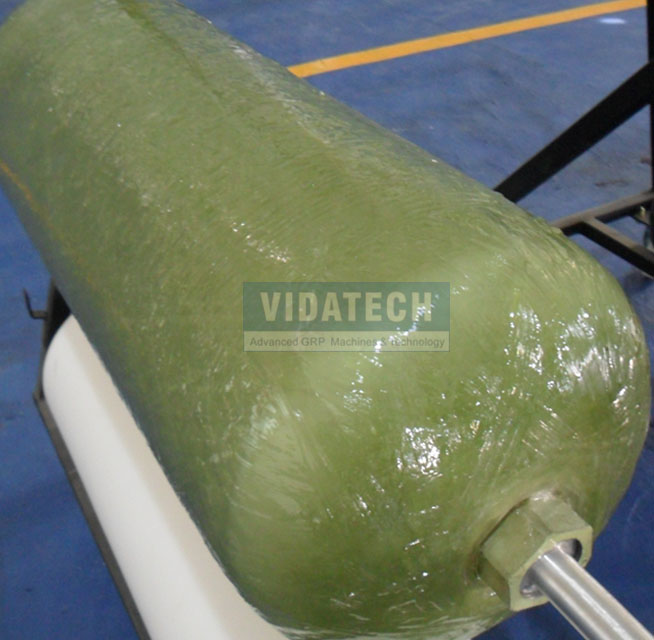

1. Composite high pressure vessels/cylinders(Type 2-4,Type II- IV)
2. Rescue vessels
3. Cmpressed CNG gas tank,CHG hydrogen gas vessels
4. Military parts
5. Aerospace parts
6. Any other product required the reinforcement strength made by multi axis winding

Filament Winding Machine with 4 CNC axes of motionfor CNGLPGCHG
