Temperature Humidity Vibration Test Chamber
| FOB Price: | 20000.00 - 50000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | EXW, FOB, CIF, DAP |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | wooden cases |
Quick Details
- Usage: Temperature humidity vibration test chamber
- Power: Electronic
- Brand Name: HD
- Warranty: one year
- weight: 500kg
Specifications

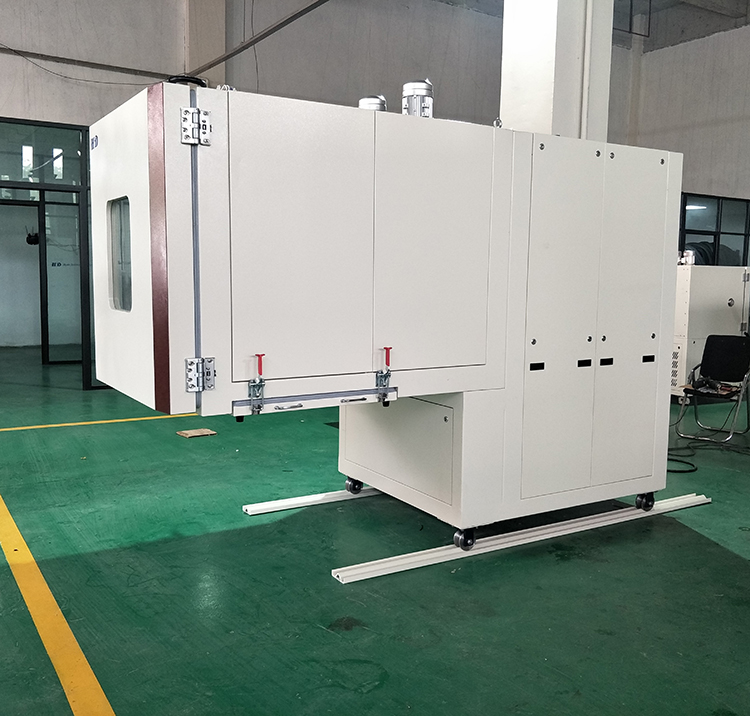

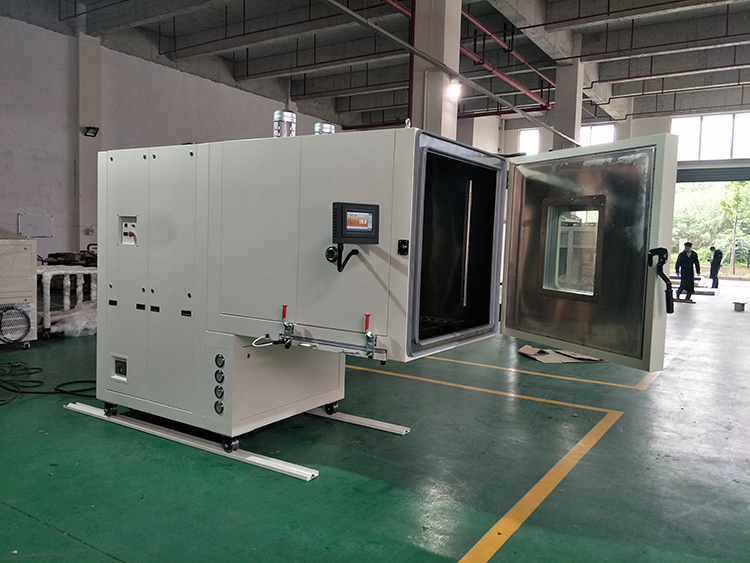

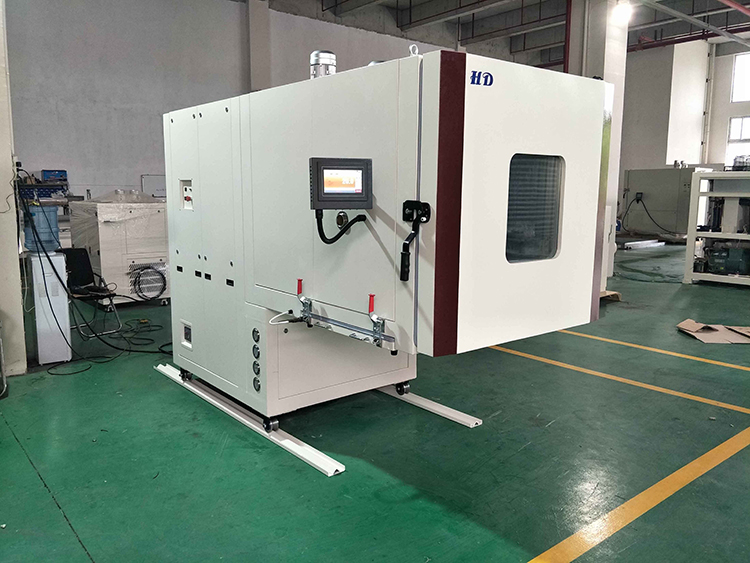

Temperature humidity vibration test chamber
this chamber is designed to do stress test on the testing product as a whole by means of forced mechanical loads, as well as to test samples for the effects of changes in temperature and humidity.
Model |
HD-PCT705 |
HD-PCT710 |
Internal volume |
504L |
1000L |
Internal dimensions (D*W*H) |
700*800*900mm |
1000*1000*1000mm |
External dimensions (D*W*H) |
2500*1000*2150 mm |
2830*1200*2250mm |
Table dimensions of vibrating table |
Table≤400*400 (400) |
Table≤600*600 (600) |
Performance | ||
Temperature range |
-70+150℃ | |
Temperature fluctuation |
≤1℃ | |
Temperature uniformity |
≤2℃ | |
Temperature deviation |
±2℃ | |
Humidity range |
20%...98%RH | |
Humidity deviation |
+2%...-3%RH (humidity>75%RH), ±5.0%RH (humidity ≤75%RH) | |
Heating and cooling time |
Heating: 3℃/min.; Cooling: 0.7--1.5℃/min | |
Material | ||
Shell material |
Cold rolled sheet steel, spray plastics on surface | |
Internal material |
Stainless steel | |
Thermal insulation material |
Polyurethane foam | |
Refrigeration system | ||
Refrigeration mode |
Mechanical compression, two-stage refrigeration | |
Compressor |
Imported compressor | |
Cooling mode |
Air cooling | |
Controller |
Programmable logic controller, 7'' LCD touch screen | |
Power |
AC380V, 50Hz, Three-phase four-wire + earth wire | |
