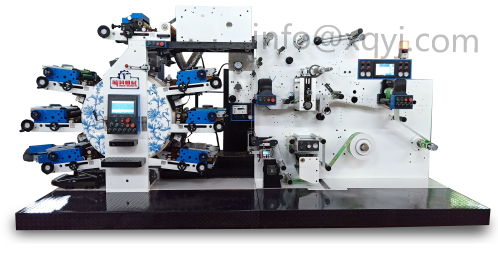

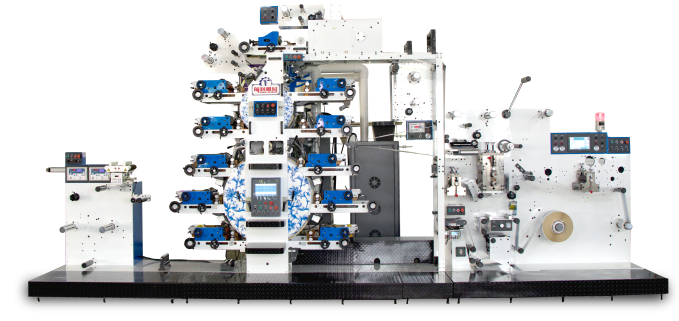

Full Rotary High Speed Letterpress Printing Machine

FOB Price:	100,000.00 - 230,000.00 USD/Set
Supply Ability:	15 Set(s) per Month
Shipping:	FOB shenzhen/ EXW

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Southeast Asia, Africa, Mid East
Place of Origin:	Guangdong in China

Quick Details

Type: Flexographic Printer
After-sales Service Provided: Engineers available to service machinery overseas
Color & Page: Multicolor
Usage: Card Printer,Cloths Printer,Label Printer,Paper Printer,
Brand Name: Qianrun
Condition: New
Certification: CE ROHS
Weight: 8.5KG
Dimensions(L*W*H): 5.8*1.8*2.25mm
Gross Power: 380V
Automatic Grade: Automatic
Model Number: RS260-6C+2F
Plate Type: Letterpress
color QTY: 2-12colors
printing speed: 100m/min
web material: paper, adhesive sticker,film and etc
Optional configuration: cold permanent system

Specifications

GUANGDONG QIANRUN MACHINERY SCI&TECH CO., LTD

Dasha Square, Dalingshan Town, Guangdong Province, China

1.Brief Introduction:

Function

Unwinder-Printing(2~22 colors)-Gold Stamp-Lamination - Die cutter - Waste Recycle - Rewinder

2.Techincal parameters


Model Number	RS260-2C	RS260-4C	RS260-6C+1F	RS260-8C+1F	RS260-10C+1F
Number of Printing color	2 color embossed	4 color embossed	6 color embossed + flexo glazing	8 color embossed + flexo glazing	10 color embossed + flexo glazing
Max. Web Width(mm)	260(10.25 inch)	260(10.25 inch)	260(10.25 inch)	260(10.25 inch)	260(10.25 inch)
Max. Printing Width(mm)	254(10 inch)	254(10 inch)	254(10 inch)	254(10 inch)	254(10 inch)
Max Printing Length(mm)	457.2	457.2	457.2	457.2	457.2
Max Speed	100m/min	100m/min	100m/min	100m/min	100m/min
Ink	UV off set ink/UV flexo ink	UV off set ink/UV flexo ink	UV off set ink/UV flexo ink	UV off set ink/UV flexo ink	UV off set ink/UV flexo ink
Centre Impression Drum	1000mm rubble-lined	1000mm rubble-lined	1000mm rubble-lined	1300mm rubble-lined	1300mm rubble-lined
Max. Dia of Unwind Roll	800mm	800mm	800mm	800mm	800mm
Max. Dia of Rewind Roll	800mm	800mm	800mm	800mm	800mm
*Machine Size (LWH:m)*	5.81.82.25	5.81.82.25	5.81.82.25	61.82.25	71.82.25
Net Weight (Kgs)	3000	3000	7500	8000	9000
Power(V/Kw)	3phase 380V, 45KVA, 50/60HZ	3phase 380V, 45KVA, 50/60HZ	3phase 380V, 45KVA, 50/60HZ	3phase 380V, 45KVA, 50/60HZ	3phase 380V, 45KVA, 50/60HZ
Air Pressure	0.6Mpa(6kgf/cm )	0.6Mpa(6kgf/cm )	0.6Mpa(6kgf/cm )	0.6Mpa(6kgf/cm )	0.6Mpa(6kgf/cm )
Operation Noise	85db	85db	85db	85db	85db

3.Performance features:

Advantages

1. Compared with common label printing machines, our full rotary label printing machine can reach a high speed of 100m/min and with more precise positioning and more accurate color printing. Advanced ink distribution ensures more even coloring.

2.with both flatbed die cutting and rotary die cutting systems.

3.Koldfoil stamping in the front, middle, back, and local or positioned stamping can be completed synchronously and quickly.

4.Multi-color printing on backside can be realized by optional backside printing device.

5.with function of spacer and local degumming, base paper stripping off, gelatinizing and sealing.

6.HP inkjet technology is applied in bar code label designing.

7.Optional inspection machine will feed and inspect labels automatically, which saves labor costs.

8.with Corona surface processor.

Standard Accessories(RS260-6C+1F)

1.Letterpress print station

2.Flexo varnish surface coating

3.UV dryer

4.Printing cylinder

5.Egdes trimming device

6.Rotary die cutter

7.Corona surface processor

8.Electrostatic eliminator

9.Lamination

10.Front cold stamping

11.Waster recycling device

12.Backside printing unit

13.Glue side printing unit

Optional Configurations (RS260-6C+1F)

1. after cold stamping

2. Static state observation system

3. Cooling system

4. Optional 2-22 color

5. Digital printing for barcode

6. Rotary screen printing device

Printing Materials

Adhesive Tape,Washing Mark,Art Paper,PET,PE,PVC,PP,Synthetic Paper,Protective Film,Pearlescent Film,Dumb Silver,Laser paper

Industry Appilcations

Cosmetic Label,Food Label, Water Label, Drug label, Electronic Label,Bar Code Label, Toy Label,PVC Label,Reverse Stickers

Customization

According to customer's requests, RS260 can be customized from 2 colors to 12 colors or other models like RS320(Max Web Width: 320mm),RS400(Max Web Width: 400mm),RS460(Max Web Width: 460mm).

ThisRotary label printing machine is compatible with cosmetic label,Food label, water label, drug label, electronic label,Bar code label etc.

ThisRotary label printing machine is compatible with cosmetic label,Food label, water label, drug label, electronic label,Bar code label etc.
