Automotive Glass Windshield Vacuum Pre Laminate Machine De Airing Furnace

FOB Price:	110000.00 - 400000.00 USD/Set
Supply Ability:	10 Set(s) per Month
Shipping:	By sea
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Covered by stretching film Wooden case, to be packed in standard export pack.3-4 40'HQ

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: FUZUAN MACHINERY
Weight: 1ton
color: Stainless steel original color
Model Number: FZVPL-8
Maximum Glass Size: 1850*1250 mm
Minimum Glass Size: 1000*500 mm
Glass Thickness: 1.6mm-6 mm
Depth Of Bend: 0-165 mm
Cross Bend: 0-30 mm
Control System: PLC
Fields Of Application: Automotive Glass
Machinery: Laminated Front Windshields Processing Line

Specifications

AUTOMOTIVE LAMINATED GLASS PRODUCTION LINE, VACUUM PRE-LAMINATE MACHINE

1. PURPOSE/DESCRIPTION of PROCESS

in the process for laminated windshield glass production, the bent glasses come from bending furnace on metallic racks. the glasses are separated by pairs (inner and outer glasses together).
Glass pairs on metallic racks will be brought to loading position of glass processing line where they will be loaded on conveyors.
Then the glasses will be unpaired on the conveyors and move to the washing machine: sheet by sheet (the Inner first and Outer following). All the glasses are oriented by wings downward (Concave down, face 4 on the belts of conveyors). after the washing machine, dry glasses move upon conveyor to cooling tunnel (where it will be cooled down till temperature needed for assembling with PVB sheets).

Inner and outer glasses will be conbinated with the PVB film together, and then placed with silicon ring, finally the windshields are flow into the next vacuum processing.

Windshield Processing Machinery

Automatic Glass Loading Machine
Auto Glass Pre-processing line (Cutting & Breaking & Grinding Machine)
Flat Glass Washing and Drying Machine
Auto Glass Silk Screen Printing and Drying and Cooling System
Taclum Powder Spraying Machine
Glass Bending Machine
Automatic Glass Loading Machine
Curved Glass Washing and Drying Machine
PVB Assembly Line (PVB Film is sandwiched between 2 sheets of glass)
Vacuum Pre-Laminate Machine (De-airing of assembled glass)
Autoclave
Rear view mirror button bracket
Glass Inspection Line

2. APPLICATION

Automotive Vacuum Pre-Laminate Machine for Vehicle laminated windshield glass processing, SafEty glass laminated processing, Car glass processing, Truck front windscreen processing.

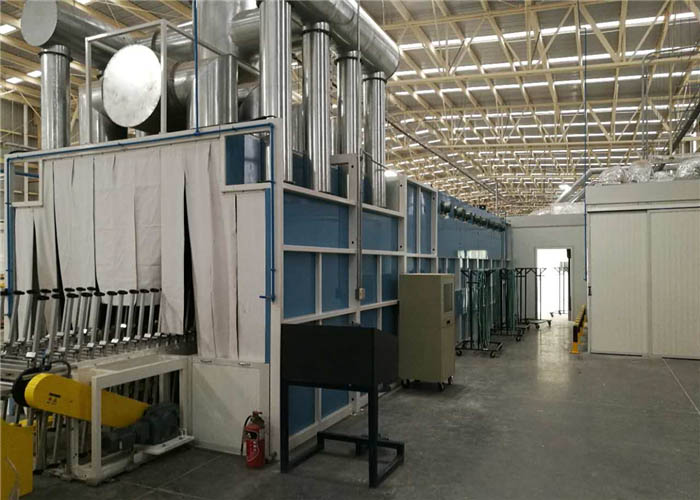

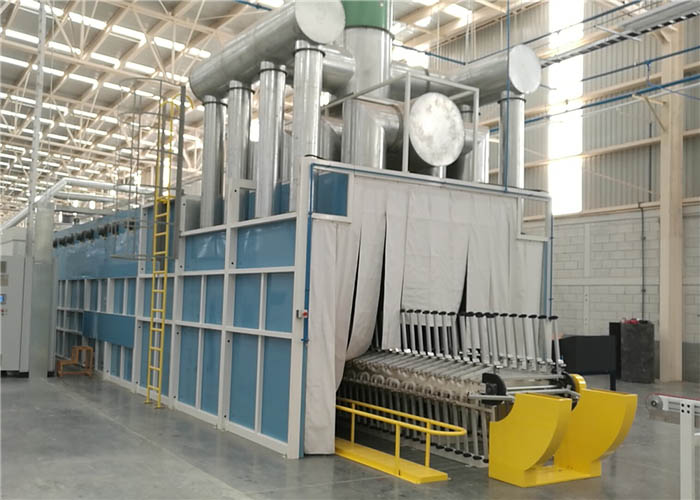

Automotive Glass Windshield Vacuum Pre Laminate Machine De Airing Furnace

3. PRODUCTION CAPACITY

the transfer speed for FZVPL-8: 25s/PC

4. DESCRIPTION

4.1 Structure

this Car Glass Vacuum Pre-Laminate Machines for OEM Laminated Windshield Glass Processing is composed mainly of:

Glass loading conveyor.
Glass heating section.
Glass cooling and transition section
Vacuum system
Glass unloading section

4.2 Technical Parameters

Maximum Glass Size	1850*1250 mm
Minimum Glass Size	1200*400 mm
Glass Thickness	1.6mm 6 mm
Conveyor Height	1100-950mm +/- 30 mm
Cycle Time	25s/PC
Orientation of Glasses	by convex up (" wings" down)
Deepth of Bend	Max 240mm
Cross-curvature	Max 40mm
Glass Transfer Speed	3 - 18 m/min
Dimension	16000mm (Customized)
Total power	300 KW

4.3 Utility

Voltage/Frequency	380V/50Hz 3ph (Adjustable according to the customer)
PLC Voltage PLC	220V
Control Voltage	24VDC
Voltage Variation	+/-10%
Temperature	18℃~35℃
Humidity	50%(Max≤75%)

5. ADVANTAGES

Special design for the heating and cooling system, to effectively reduce the generation of glass bubbles after high pressure.
Conveyor with frenquency inverter.
Suitable sensors will be installed to detect glass presence.
Automatic temperature control
Suitable for automobile glass mass production.

Optional

System that can disconnect the vacuum ring automatically of the connection of vacuum of the conveyor.

Automatic vacuum valve close
Automatic silicon hose removal
Automatic vacuum silicon ring removal
Automatic silicon ring return system

6. OUR SERVICE

6.1 Pre-sale Service

FUZUAN's professional technical team will provide you with an all-round and timely service before you make the final decision. It includes,

Help the customer choose the most suitable glass processing machines, automotive tempered or laminated line machines, according to the target market and production volume requirements.
Help the customer choose the materials, related in the automotive glass field, such as the raw glass material, mirror button, rubber ring, wiper seat connection etc.
Help the customer arrange all the automotive glass processing machines in the workshop.
Arrange visits to other glass processing companies.

6.2 after-sale Service

FUZUAN will provide you Complete and systematic after-sale service,which can deliver its technology service quickly to reduce equipment
Malfunction possibility and shorten downtime. It includes:

on-site installation and training.

English manual and Video for machine using and maintenance.

1 year warranty pEriod (Except wearing parts) , life-Long maintenance.

Via remote seRvice, Faults can be immediately localized and targeted actions can be initiated.

24 hours technical support by email or skype or whatapp.

High-quality spare parts increase the lifetime of your machine, secure the efficiency and smooth production. We provide you a reliable spare parts service. A fast and on time delivery is our top priority.

7. COMPANY BRIEF INTRODUCTION

FUZUAN is located in Rong Yang Industrial Zone, Xishan District, Wuxi, Jiangsu Province China, we mainly provides professional ONE-STOP glass solution for Automotive Glass, including the Laminated & Tempered Processing Lines for vehicle, such as cars, trucks, passenger cars,Cart, bus etc. and we are a high-tech enterprise integrating production, R&D, technical service and sales,wIth our technological expertise and strong focus on successful implementation, we develop solutions that make the difference, for our customers.

FUZUAN 's main service customers includes AGC, SAINT-GOBAIN, VITRO, PGW, FUYAO GROUP, SYPK AUTOGLASS, XINYI GLASS, TM GLASS, WYP AUTOMOTIVE, AFG AUTO GLASS etc, all major professional glass enterprises in China and overseas.
