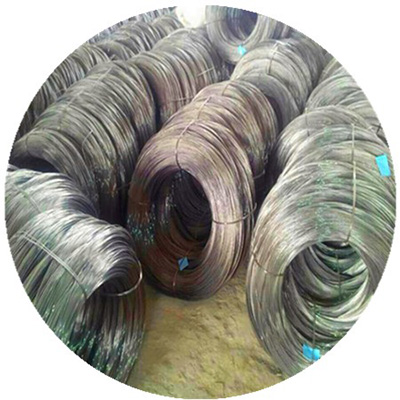

SKH59 HS2-9-1-8 1.3247 M42 HSS High Speed Tool Steel Round Wire

FOB Price:	4000.00 - 5000.00 USD/Ton
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Steel Wire Rope Netting

Price:33.00-115.00 RMB/Square Meter

Min. Order:1 Square Meter
Black Annealed Wire

Price:450.00-550.00 USD/Ton

Min. Order:5 Ton
Plant Spiral Support Wire

Price:

Min. Order:5 Ton
Hastelloy Wire

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China

Quick Details

Brand Name: OEM
Alloy Or Not: Is Alloy
Application: Rope
Type: Drawn Wire
Standard: AISI

Specifications

Quick Details

Steel Grade:: SKH59 HS2-9-1-8 1.3247 M42

Standard:: AiSi, ASTM, bs, DIN, GB, JIS

Place of Origin:: Jiangsu, China

Type:: Drawn Wire

Application:: Bearing

Alloy or Not:: Is Alloy

Model Number:: SKH59 HS2-9-1-8 1.3247 M42

Brand Name:: Fushun

Tolerance:: ±3%

Processing Service:: Cutting

Grade:: SKH59 HS2-9-1-8 1.3247 M42

Shape:: Round wire

Surface Condition:: Black, Peeled,Polished

Delivery Condtion:: Cold drawn+annealed

MOQ:: 1t

Similar grades:: 1.3247 M42 Skh59

Product name:

M42 hss

Physical Properties
Properties	Unit	TEMPERATURE °C / °F
Properties	Unit	20 / 70	400 / 750	600 / 1110
DENSITY	Kg/m3 lbs/in3	8.03.290	7.93.286	7.87.284
MODULUS of ELASTICITY	KN/mm32 psi	225 33 10 6	200 29 10 6	180 26 10 6
COEFFICIENT of THERMAL EXPANSION from 20°C / 70°F	Per °C per °F		11.5 10-6 6.4 10-6	11.8 10-6 6.6 10-6
THERMAL CONDUCTIVITY	W/m °C Btu/sq. ft. H °F/in.	24 166	28 194	27 187
SPECIFIC HEAT	J/kg °C Btu/lb °F	420 0.10	510 0.12	600 0.14

Mechanical Properties	Metric	Imperial
Hardness, Rockwell C (oil quenched from 1204°C, 5 minutes)	64.3	64.3
Hardness, Rockwell C (oil quenched from 1177°C, 5 minutes)	65.5	65.5
Hardness, Rockwell C(oil quenched from 1163°C)	65.8	65.8
Izod impact unnotched (oil quenched at 1191°C; 510°C temper temperature)	13.6 J	10.0 ft- lb
Izod impact unnotched (oil quenched at 1191°C; 622°C temper temperature)	24.4 J	24.4 J
Machinability (1% carbon steel)	35.0 40.0%	35.0 40.0%
Poisson's ratio	0.27-0.30	0.27-0.30
Elastic modulus	190-210 GPa	27557-30457 ksi

Forging of High Speed M42 Tool Steel
Pre heat the M42 high speed steel slowly and uniformly to 650-760°C and equalise. Then increase more quickly to the forging temperature of 1010-1150°C and equalise prior to forging. Do not allow the forging temperature to drop below 980°C, if this occurs reheating will be necessary. Always cool the m42 high speed steel very slowly after forging.


Machinability
AISI Steel grade M42 tool steel can be drilled, turned, threaded, broached, milled and tapped when it is in its annealed condition and rated at 45% of 1% carbon steel.


Heat Treatment of M42 Tool Steel High-speed steel material
* Annealing
AISI M42 high speed steel is heated at 871°C (1599°F) and then cooled slowly in a furnace.
* Stress Relieving
to relieve stresses created by extensive machining or tooling with complex geometries. Heat in a neutral atmosphere for 1 to 2 hours after reaching a temperature of 1110 to 1200°F (600 to 650°C), followed by slow cooling in the furnace.
* Hardening
AISI M42 high speed steel is preheated to 871°C (1599°F), soaked and finally heated to 1204°C (2199°F).
* Tempering
Tempering M42 tool steel at 560°C / 1040°F or higher 3 times for at least 1 hour at full temperature is recommended.

Application of M42 Tool Steel High Speed
AISI M42 tool steel is a high-speed steel suitable for cutting tools such as, twist drills, broaches, taps, milling, cutters,
Saws, reamers etc. in terms of performance, HSS grade M42 is a steel to be used in conditions where the demand for hot hardness is of great importance i.e. Where high performance is essential.
Typically employed to machine the super alloys and exotic, AISI HSS M42 tool steel is employed in drills, hobs, taps, end mills, milling cutters, form and gear cutters, broaches and chasers.

We are a better choice and high speed steel supllier for AISI M42 tool steel / DIN 1.3247 steel / SKH59 high speed steel
Materials. Send us your request and let's work together.
