| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
Quick Details
- After-sales Service Provided: Overseas service center available
- Certification: limingf heavy country
- Weight: 11tons
- Brand Name: Liming Heavy Industry
- Condition: New
- Use: Granite
Specifications
the following example is for you reference.
1.Brief Introduction:

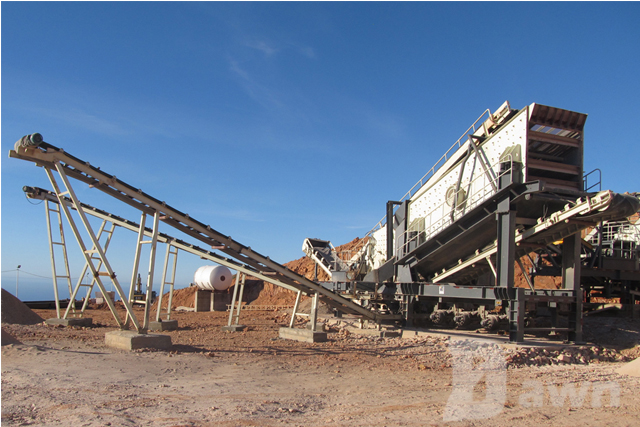

NK series mobile crusher is new generation of mobile crushing station equipped with intelligent control system. It makes all components completely airborne, so there is no need to install machine and pour foundation. It can be put into use as soon as it arrives at the production site, which is very flexible.
2.Techincal parameters:
Mobile Primary Jaw Crusher
Feeding hopperModel
NK100E Mobile Crusher
NK1213C Mobile Crusher Power
138.5kW
228.5 kW Weight
35T
31T Capacity
150-350t/h
150-300t/h Volume
6m3
6m3 Width
2500mm
2500mm Vibrating screen Model
FK0936
FK0936 Loading width
960mm
960mm Loading length
3600mm
3600mm Crusher Model
PE3040 Jaw Crusher
CI5X1213 Impact Crusher Motor power
110kW
200kW Feeding depth
760mm
- Maximum feeding size
680mm
550mm Discharge outlet
70-150
>30mm Discharge belt Belt conveyor width
1000mm
1000mm Discharge Height
3639mm
3639mm
| Model | NK300H Mobile Crusher (No pre-screening) | NK300H Mobile Crusher (with return screening) | NK1213 Mobile Crusher (No pre-screening) | NK1213 Mobile Crusher (with return screening) |
| Power | 283 kW | 323.5 kW | 231.5 kW | 272 kW |
| Weight | 34T | 42T | 29T | 37T |
| Capacity | 110-440t/h | 110-440t/h | 150-300 t/h | 150-300 t/h |
| Main machine | ||||
| Model | HPT300 Cone Crusher | HPT300 Cone Crusher | CI5X1213 Impact Crusher | CI5X1213 Impact Crusher |
| Maximum feeding size | 220mm | 220mm | 300mm | 300mm |
| Power | 220kW | 220kW | 200 kW | 200 kW |
| Vibrating screen | ||||
| Model | - | SKX1536 | - | SKX1536 |
| Power | - | 15kW | - | 15kW |
| Speed | - | 1000r/min | - | 1000r/min |
| Vibration intensity | - | 4.5G | - | 4.5G |
| Screen dimension (W*L) | - | 1500X3600mm | - | 1500X3600mm |
| Belt conveyor | ||||
| Feeding belt conveyor width | 1000mm | 1000mm | 1000mm | 1000mm |
| Host discharging belt conveyor width | 1000mm | 1000mm | 1000mm | 1000mm |
| Screening transporter belt width | - | 500mm | - | 500mm |
| Return belt conveyor width | - | 500mm | - | 500mm |
| Discharging belt conveyor width | - | 1200mm | - | 1200mm |
| Discharging belt conveyor height | 3334mm | 3124mm | 3334mm | 3124mm |
| SKX1860 Vibrating Screen (2 layers / 3 layers) | |
| Power | 72/79.5 kW |
| Weight | 27/31T |
| Capacity | 70-600t/h |
| Vibrating screen | |
| Power | 22kW |
| Screen dimension (W*L) | 1800X6000mm |
| Speed | 1000r/min |
| Vibration intensity | 4.5G |
| Belt conveyor | |
| Feeding belt conveyor width | 1000mm |
| Side-out belt conveyor width | 650mm |
| Discharging belt conveyor width | 1200mm |
3.Performance features:
2.Modular design
3.Intelligent operation
4.Customized main machine
5.Go into operation quickly
6.Maintenance friendly
