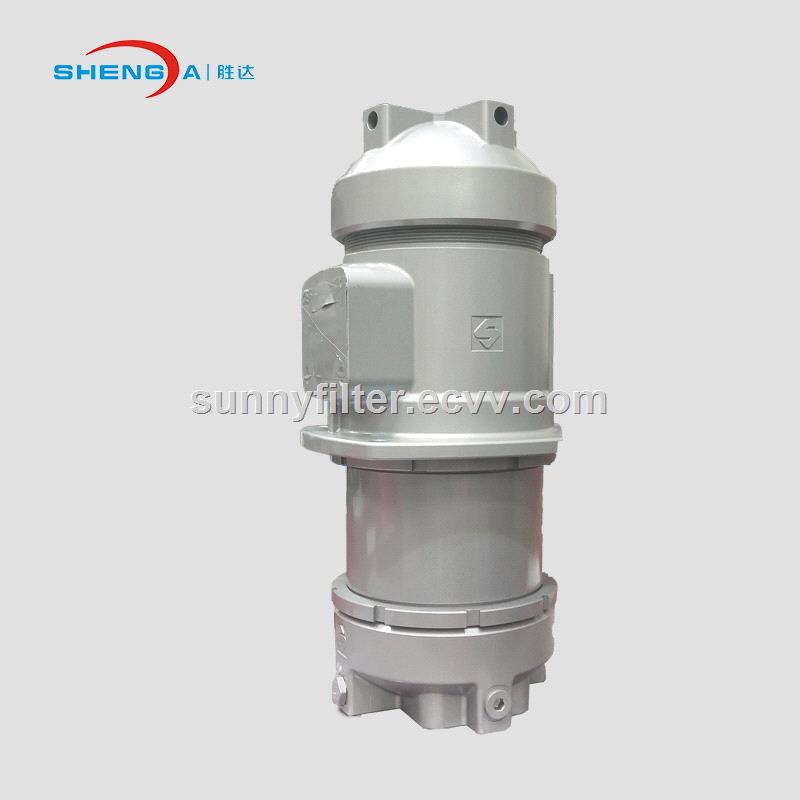

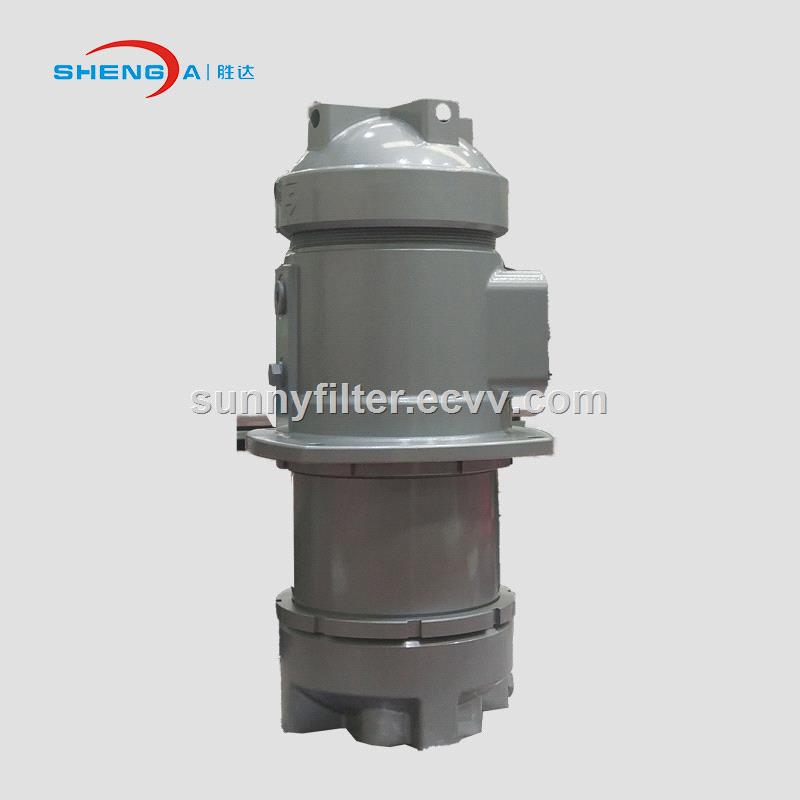

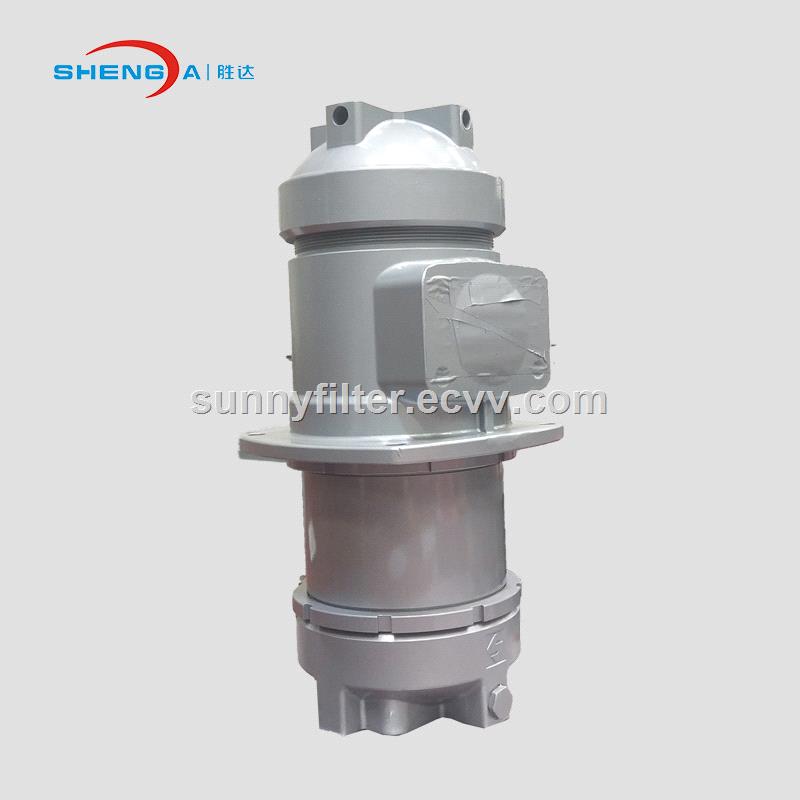

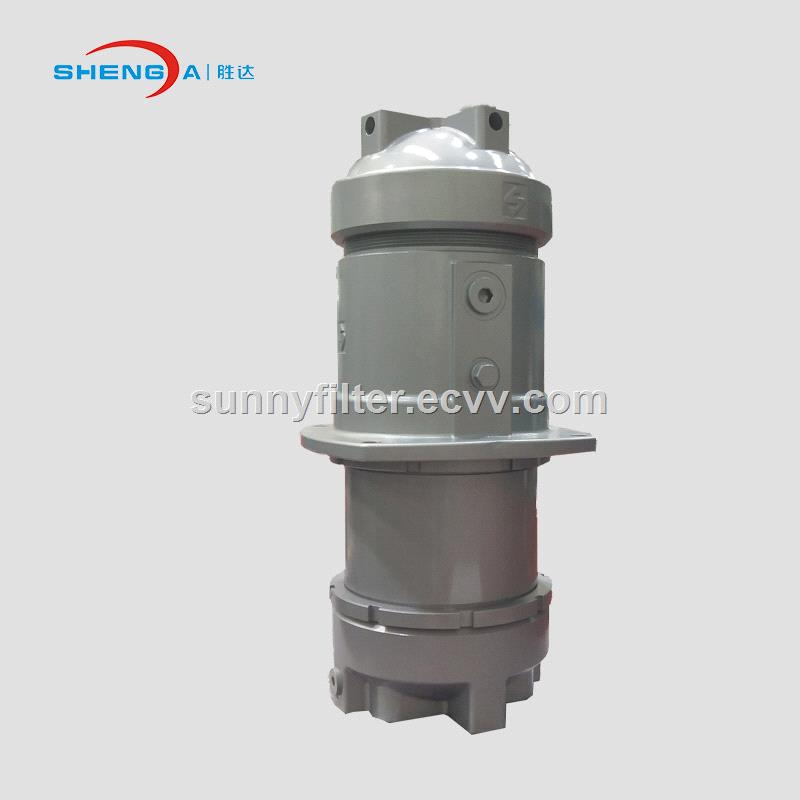

Inline Low Pressure Oil Filter Assembly

FOB Price:	50.00 - 500.00 USD/Set
Supply Ability:	500 Set(s) per Month
Shipping:	qingdao/shanghai/tianjin port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard export seaworthy cartons and plywood cases

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Weight: 15kg
Brand Name: Shengda
Condition: New
Structure: Cartridge
Type: Return Filter
flow: up to 3500 l/min
pressure: up to 25 bar
material: aluminum/ aluminum-carbon steel
seals: NBR
temperature range: -10~ +100 centigrade
mounting: tank-top or inline filter
type of clogging indicator: visual/ electric/ visual and electric
clogging indicator: with or without
Bypass valve: with or without
Applicaition: hydraulic inline system

Specifications

Inline Filter (SDNF)

---up to 3500 l/min

---up to 25 bar

---material: aluminum/ aluminum-carbon steel

1. Introduction:

Inline filter (SDNF type) is mainly installed on the top of oil Tank or in the inline system, to remove the impurities like abrasives from the Pipeline, in that way, to protect the oil tank, and prolong the life time.

It consists of a filter housing with a removable Upper cover.

2. Filter Element

Max. Allowable DP:

BN/ HC 20 bar P/HC 10 bar W/HC 20 bar

V 210 bar BN/AM- 10 bar AM- 10 bar

3. Description

Mounting as Tank-top or inline filter

Temperature range -10℃~ +100℃

Pressure setting of clogging indicator PA= 2 bar 10% (others on Request)

Bypass cracking pressure Po= 3 bar 0.5 bar (others on request)

4. Application

It can be used for mineral oils, lubrication oils, non-flam Fluids, synthetic and rapidly biodegradable fluids.

Inline low pressure oil filter assembly
