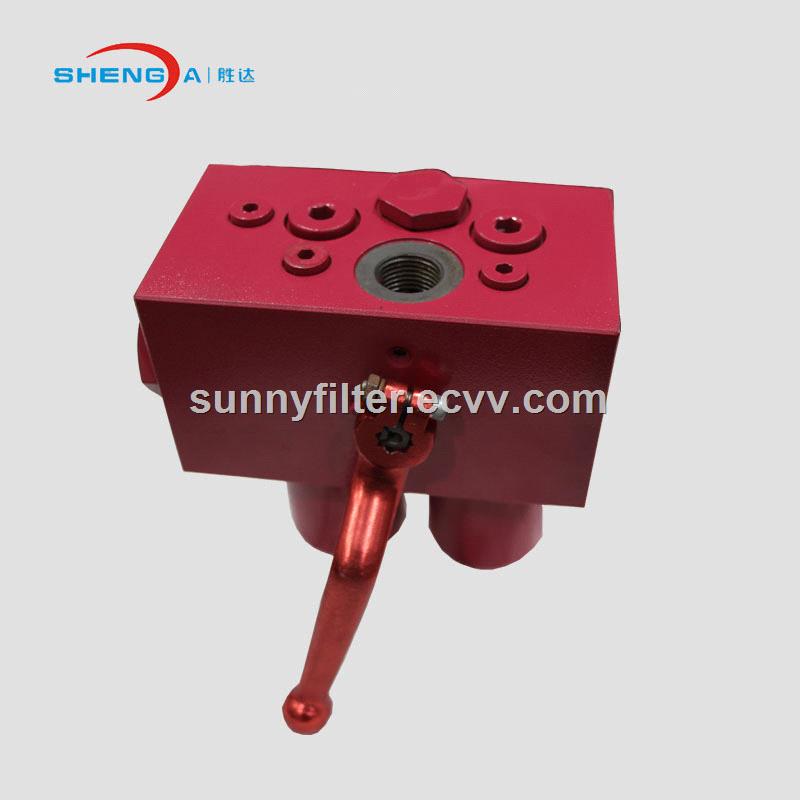

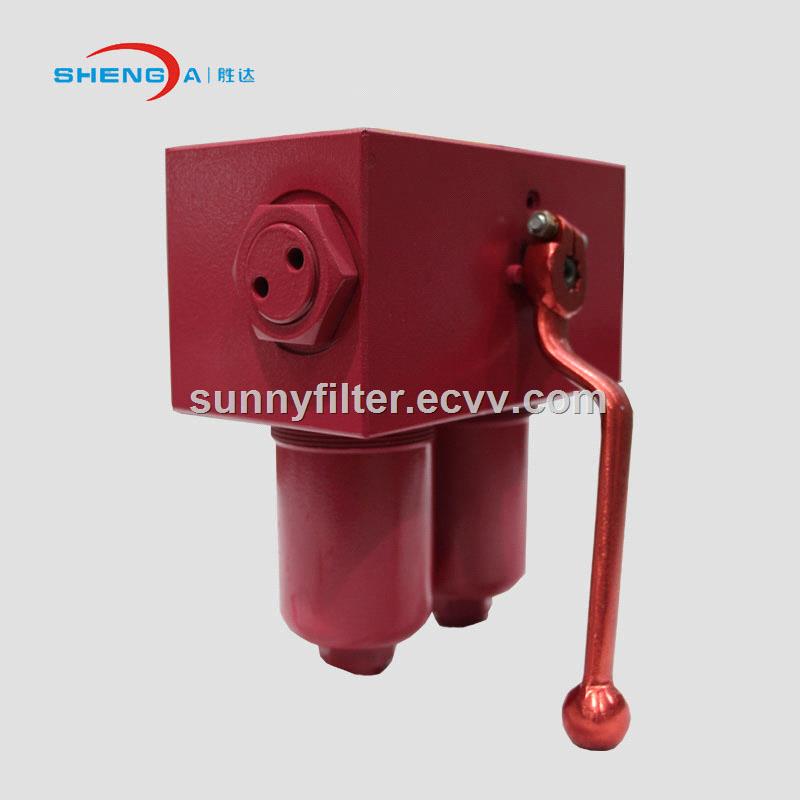

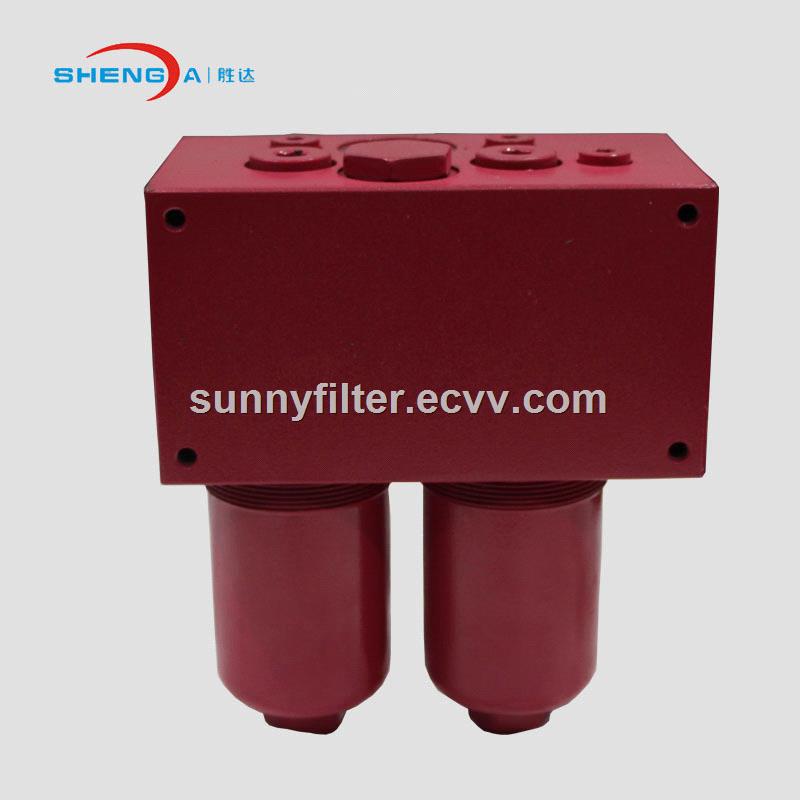

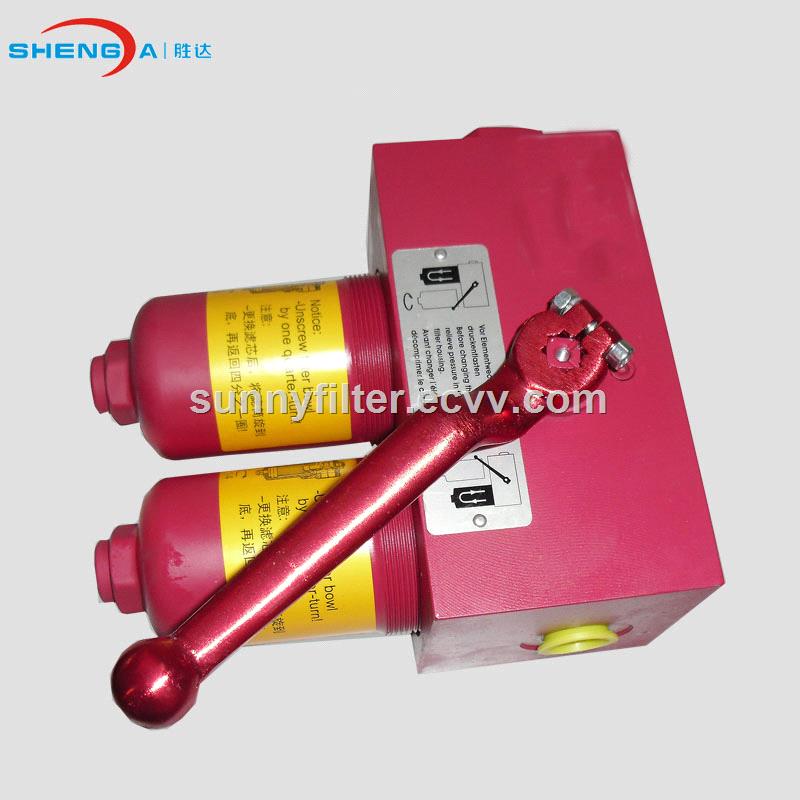

Duplex Hydraulic Pressure Oil Filter Inline Filter Assembly
| FOB Price: | 50.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece(s) per Month |
| Shipping: | qingdao/shanghai/tianjin port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Standard seaworthy export cartons and plywood cases |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001:2008
- Weight: 15kg
- Brand Name: Shengda
- Condition: New
- Structure: Cartridge
- Type: Return Filter
- Mounting: As inline oil filter
- Flow: up to 600 L/min
- Pressure: up to 315 bar
- material: GGG steel
- Temperature range: - 10 ~ 100 centigrade
- Seals: NBR
- type of clogging indicator: visual/ electric/ visual and electric
- Filter precision: 3,5,10,20,25,50,100,200micron
- Bypass valve: with or without
- Applicaition: hydraulic inline system
Specifications
Change-over Pressure Oil Filter (SDDFDK)
---up to 600 L/min
---up to 315 bar
---material: GGG steel
1. Technical Specifications
1.1 Filter Housing
Construction
the filter housings Are designed in accordance with international regulations. They consist of a Filter head with screw-in filter bowls.
Standard equipment:
* ball change-over valve
* two-piece filter bowl for SDDFDK 9901320, 2640, 3690 (as an option for SDDFDK 660)
* connection for a clogging indicator
* drain screw with pressure relief
* pressure equalization line (for size SDDFDK 330 and above)
1.2 Filter Elements
Max. Allowable D.P.:
BN/HC: 20bar; W/HC: 20bar V: 210bar
2. Description
Mounting
as inline oil filter
Temperature range
- 10 ℃ ~ + 100 ℃
Seals NBR (=Perbunan) /Nitrile Butadiene Rubber
3. Notes
* Filter Housings must be earthed.
* When Using electrical clogging indicators, the electrical power supply to the system Must be switched off before removing the clogging indicator connector.
4. Application
It can be used for mineral oils, lubrication
Oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
