Inline Duplex Oil Filter Assembly

FOB Price:	50.00 - 500.00 USD/Piece
Supply Ability:	500 Piece(s) per Month
Shipping:	qingdao/shanghai/tianjin port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard export cartons and plywood cases

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Weight: 15kg
Brand Name: Shengda
Condition: New
Structure: Cartridge
flow: up to 400 L/min
pressure: up to 63bar
material: aluminum
bypass valve: without
mounting: as inline oil filter
seals: NBR
type of clogging indicator: Visual/ Electric/ Visual and electric
Filter precision: 3,5,10,20,25,50,100,200micron
Filter element type: DN
Applicaition: hydraulic inline system

Specifications

Change-over Inline Oil Filter (SDFLND)

---DIN 24550

----up to 400 L/min

---up to 63bar

---material: aluminum

1. Technical Specifications

1.1 Filter Housing

Construction

the filter housings Are designed in accordance with international regulations. They consist of a Filter head with built-in change-over valve and screw-in filter bowls.

Standard equipment:

* without bypass valve

* connection for a clogging indicator

* oil drain plug (FLND 160 to 400)

1.2 Filter Elements

Max. Allowable D.P.:

BN/HC: 20bar; W/HC: 20bar

2. Description

Mounting as inline oil filter

Temperature range - 30 ℃ ~ + 100 ℃

Pressure setting of clogging indicator PA= 5bar -0.5bar (others on request)

Cracking pressure of bypass valve Po=7 Bar±0.5bar (others on request)

Seals NBR (=Perbunan) /Nitrile Butadiene Rubber

3. Notes

* Filter Housings must be earthed.

* When Using electrical clogging indicators, the electrical power supply to the system Must be switched off before removing the clogging indicator connector.

* Filters with switching valve are designed to have a permissible leakage depending on the operating medium.

4. Application

It can be used for mineral oils, lubrication Oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

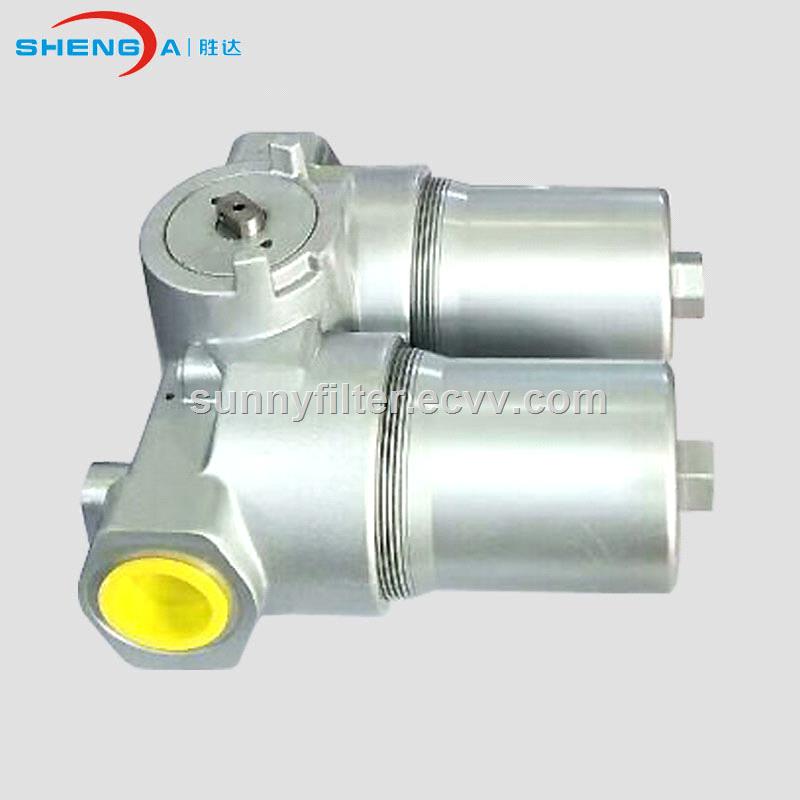

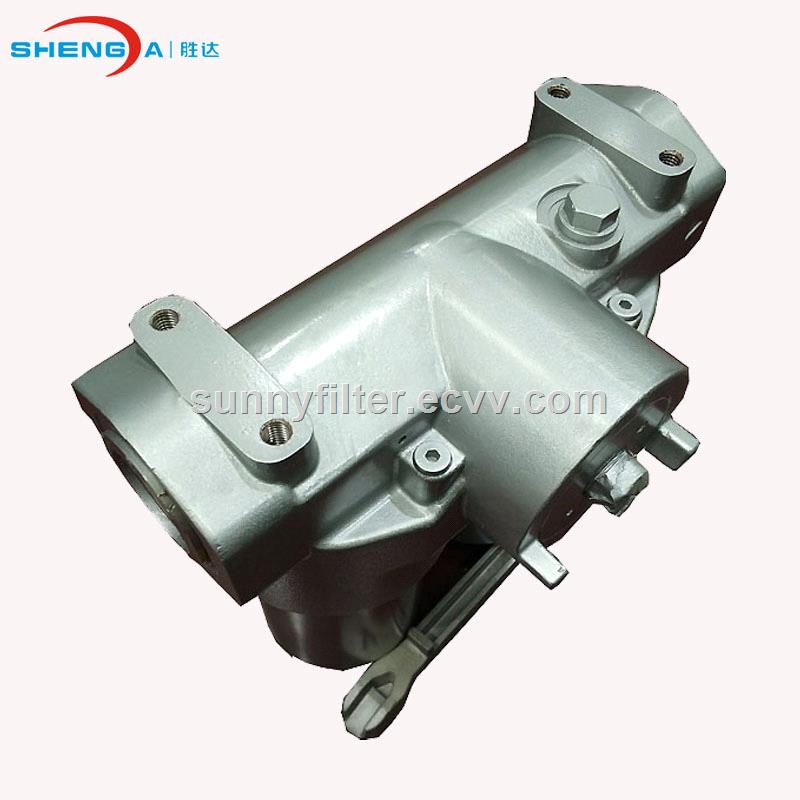

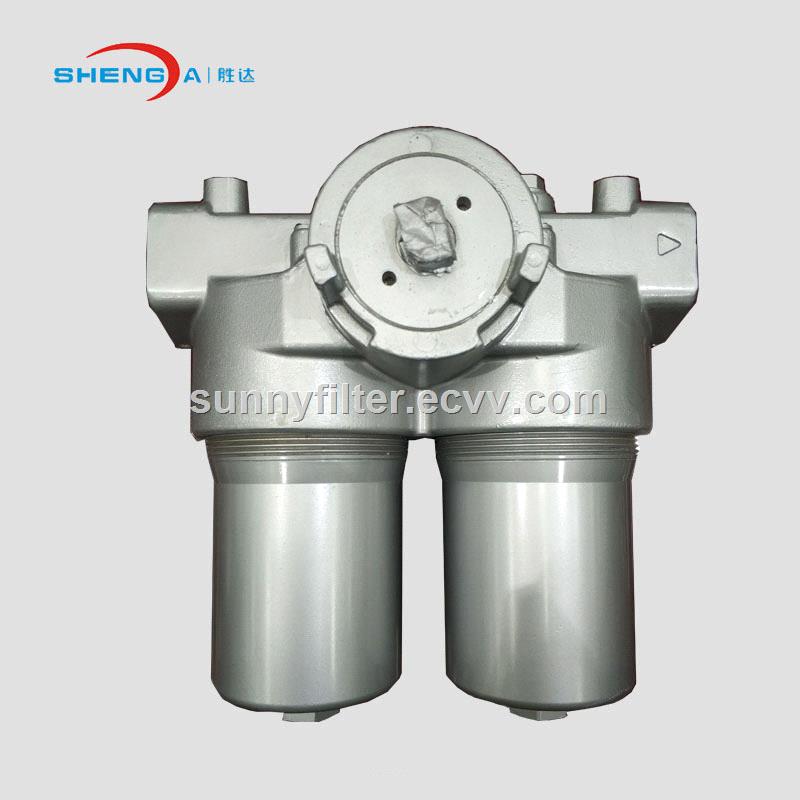

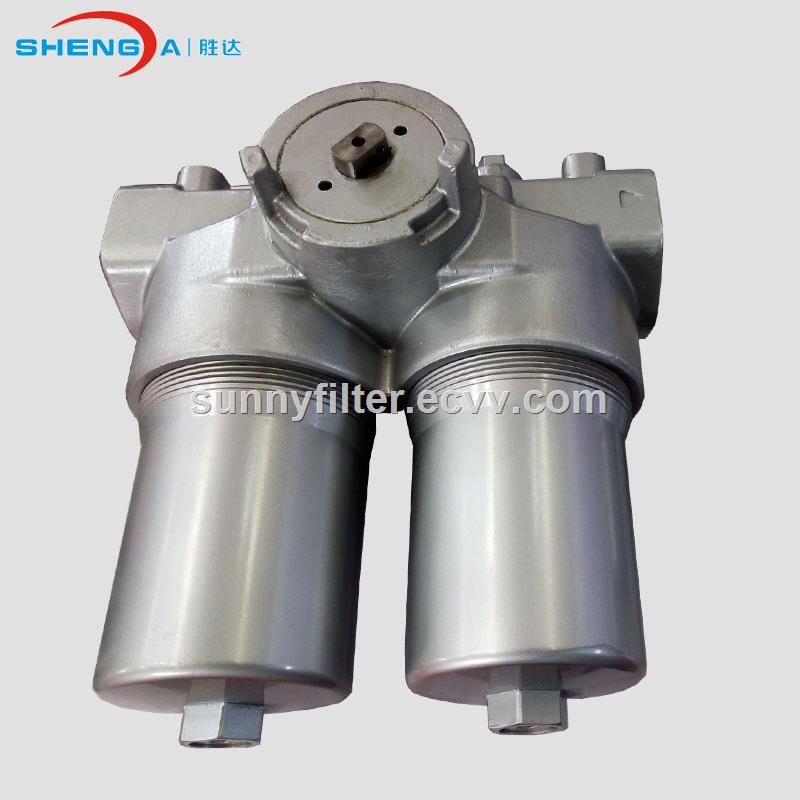

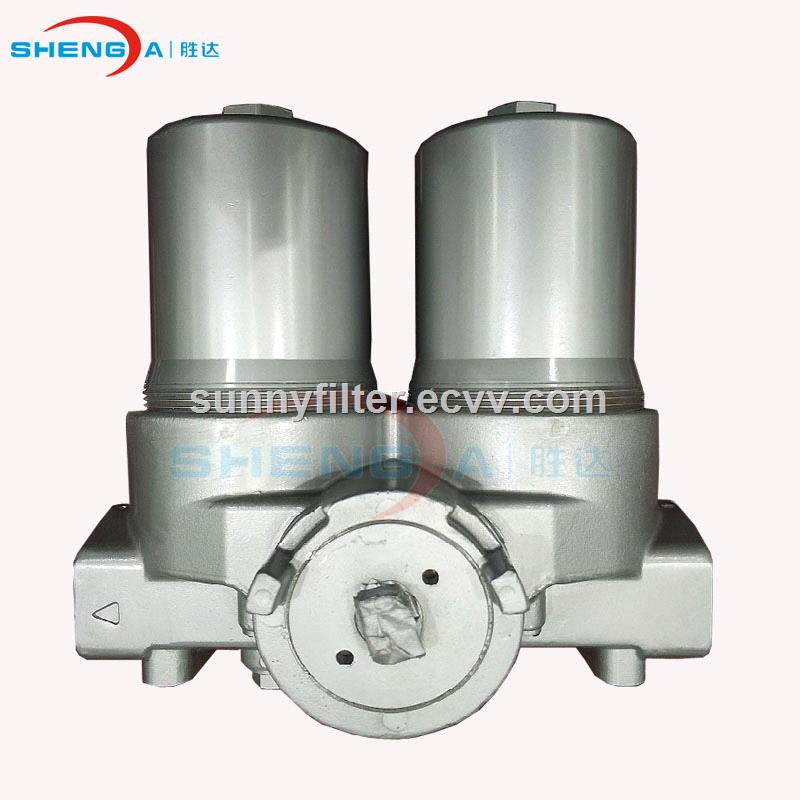

Inline duplex oil filter assembly
