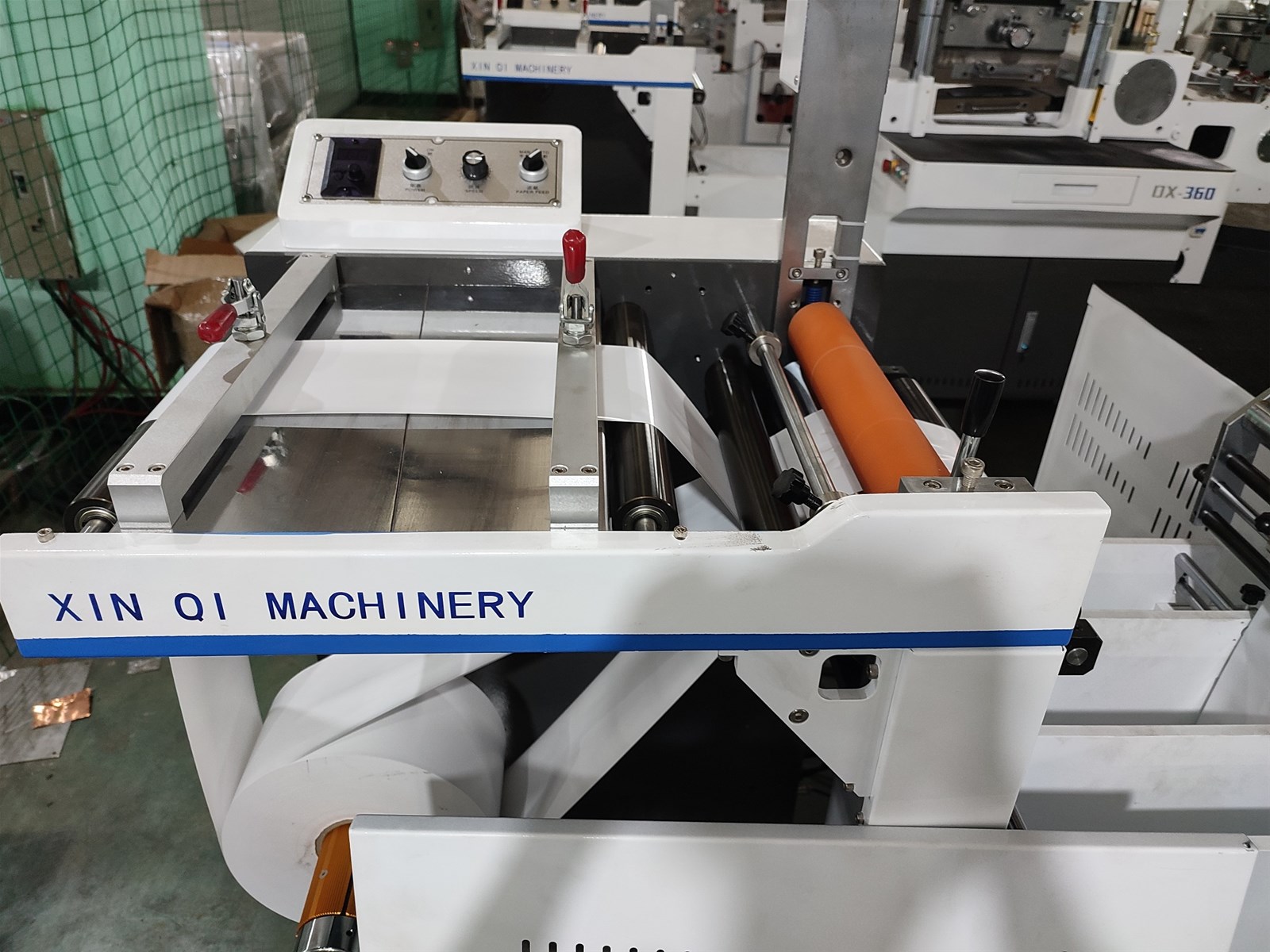

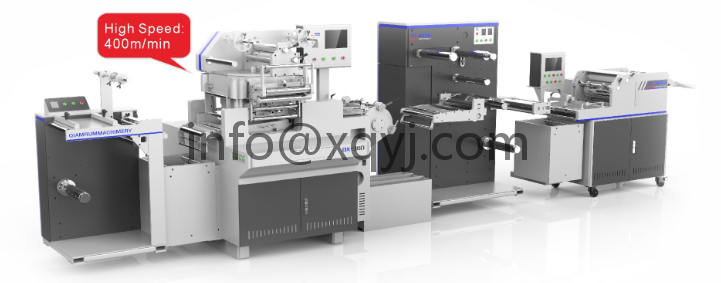

Die Cutting Machine High Speed Paper Plastic Film Die Cutter
| FOB Price: | 28,000.00 - 43,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set(s) per Month |
| Shipping: | FOB shenzhen |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, Southeast Asia, Africa, Eastern Asia |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 4500*2000*2000mm |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Condition: New
- Brand Name: XinQi
- Weight: 3500
- color: black and white
- Model Number: XQ-D360X
- Cutting accuracy: +/-0.1mm
- Max Die-cut size: 350*350mm
- Max paper width: 360mm
- Max paper length: 350mm
- Max paper speed: 24000times/h
Specifications
GUANGDONG QIANRUN MACHINERY SCI&TECH CO., LTD
Dasha Square, Dalingshan Town, Guangdong Province, China
1. Function:
Unwinder - Hot Foil - Lamination - Die cuter - Waster - Paper sheet cutter or Rewinder
2. Advantages:
1. Simple in operation, fast, flexible,accurate in positioning.
2. Advanced automatic control system to ensure automatic shutdown when without paper or when when reaching the preset number of paper.
3. Inching contact is emplyed for die cutting during mechanical action, as a result the pressure is evenly distributed.
4. the built-in centralized oil supply system ensures high-speed operation with low noise and no abrasion.
5. Adopt centralized touch screen control system with high-speed up to 24000 times/hour.
6. Vortex suction ensures constant paper tension and no scratches on materials.
7. Common rubber die saves costs.
3. Parameters: Model Number DX360X (Single Cutter) DDX360X (Double Cutter) Max. Die-Cut Size(mm) 350X335 350X335 Max.Paper width(mm) 360 360 Max.Paper speed(Times/h) 350-24000 350-24000 Power(V/Kw) 380/9 380/10 Machine size(L*M*X) mm 4000X1500X1500 5000X1500X1500 Net weight(Kg) 3500 5500
4. Basic Configurations

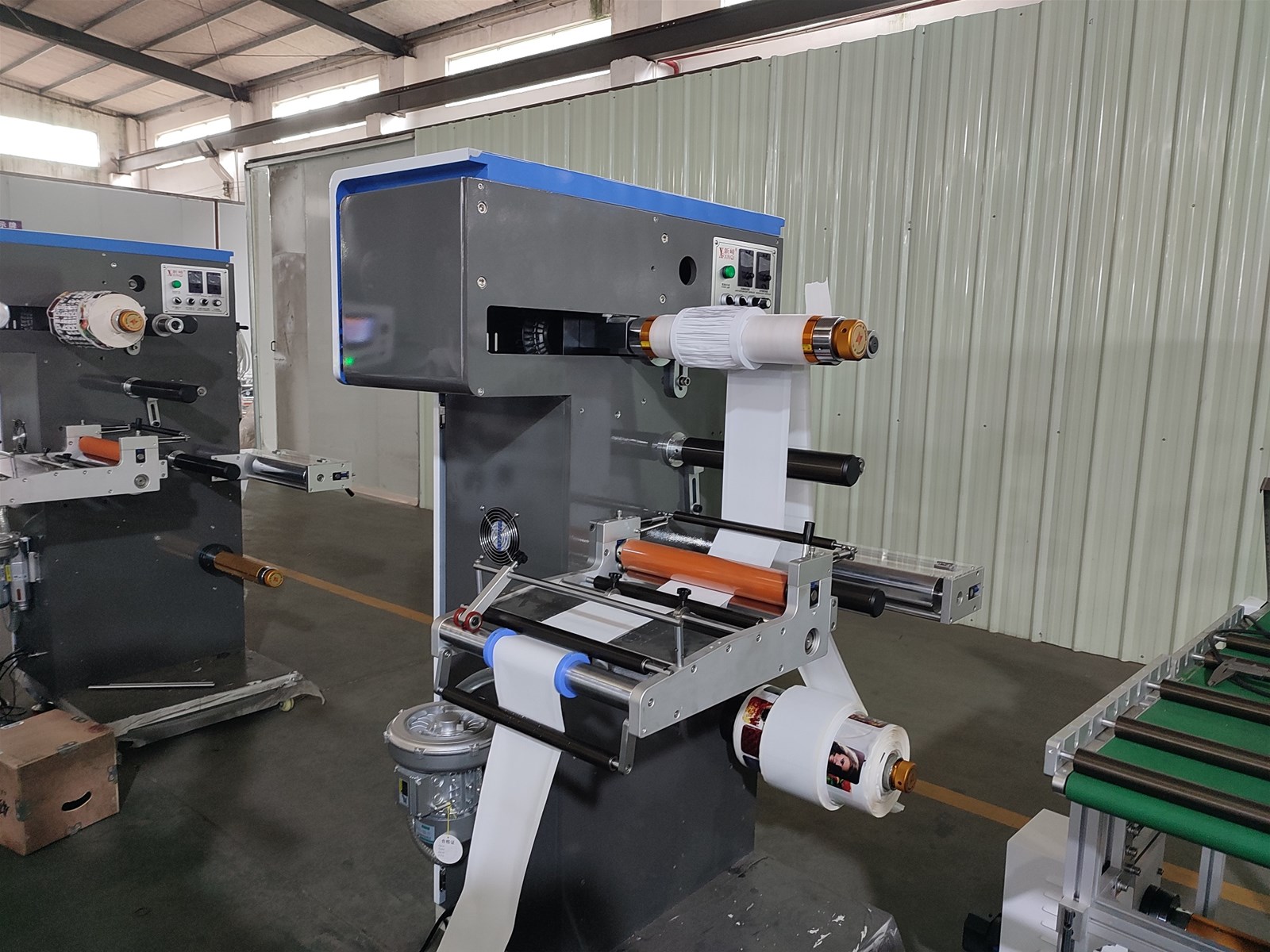

1. One set unwinder w/ lamination.
2. One set rewinder w/ waste recycling device.

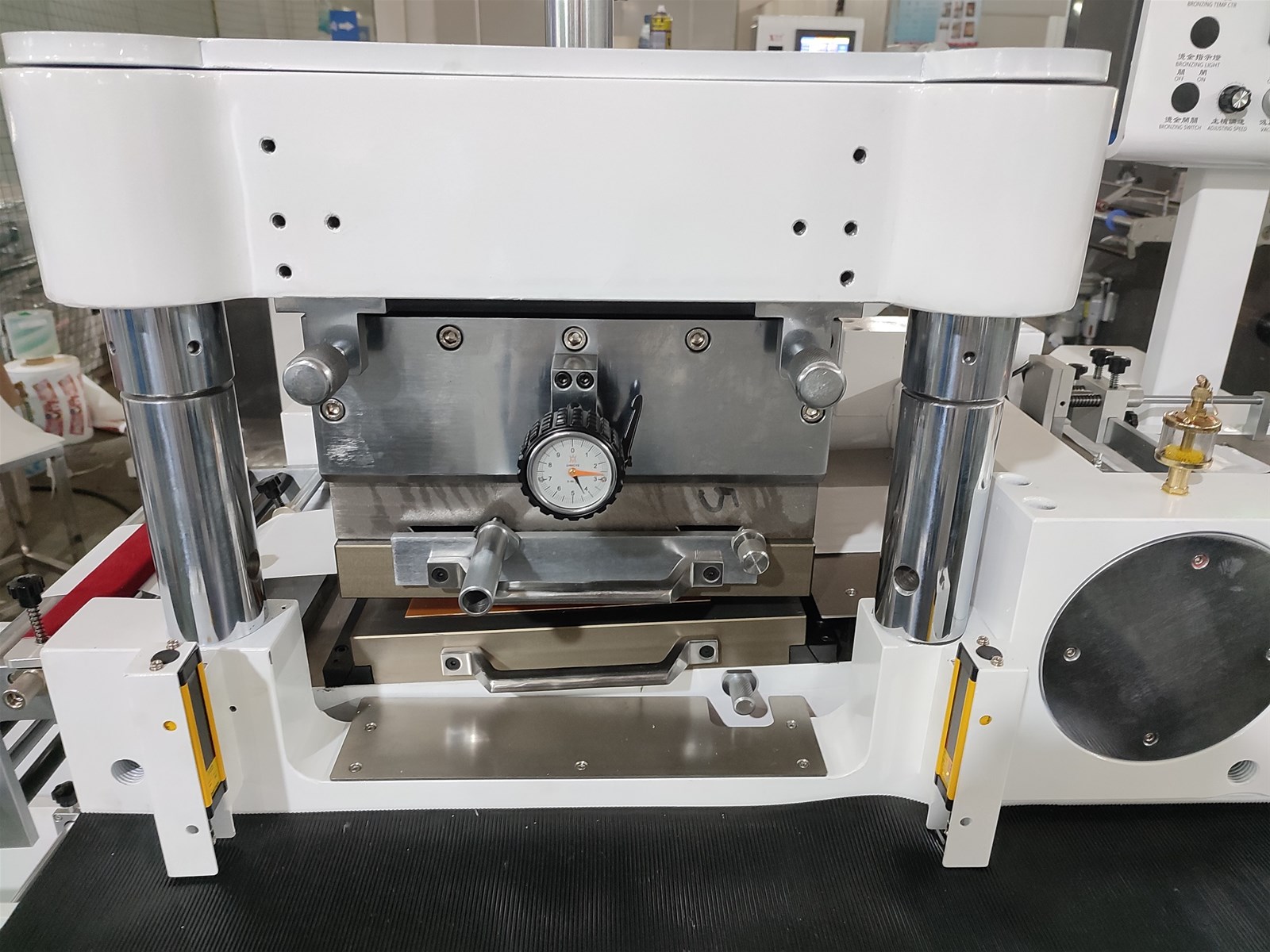

3. One set main die cutting machine.
4. One piece of upper/lower plate for die cutting respectively.
5. A standard toolkit.
Optional configurations
1. Foil stamp device.
2. High speed Paper sheet cutter.
3. Conveyer belt device.
5. Applicable printing materials
Self adhesive materials, tags, wash labels, Polyester and aluminum foils.
