Glass Polariscope Displaying Residual Stress In Real Time

FOB Price:	1100.00 - 1300.00 USD/Set

In Stock

Inquiry Now

Related products from verified members

Tel Line Tester

Price:

Min. Order:
Tester for Yarn Dyed Textile Printing & Dye...

Price:322.92 USD/Piece

Min. Order:1 Piece
Fluid Testing Machine LD11

Price:100.00-10,000.00 USD/Set

Min. Order:1 Set
Surface Roughness Teste SRT-6100

Price:400.00-500.00 USD/Piece

Min. Order:1 Piece
Box Rain test chamber

Price:8,000.00-40,000.00 USD/Piece

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Usage: Glass Testing Instrument
Power: Electronic
Brand Name: PTC
Warranty: 1 year
weight: 8KG
Model Number: PSV-202
Function: Observing residual stress inside glass products
Detecting method: Sensitive Color
Viewing field: 200*200mm
Analyzer: diameter 100mm

Specifications

Polariscope for transparent Quartz, glass and plastic

(Ref.PSV-202)

Detecting object

1. transparent glass products with complex construction.

Such as: penicillin bottle, ampoule, mobile phone cover, lighting tube, solar glass,automobile glass,sapphire, glass container, glass handicraft

2. transparent plastic samples

Plastic bottle, cosmetic bottle, beverage bottle, plastic tray, plastic film

3. Crystaline material

Specifications

Retardation of full-wave plate: 560nm

Viewing field: 200mm*200mm

Measuring height:236mm

Overall size: 310*285*350mm

Voltage: 24VDC( with a AC/DC adaptor )

Light source:

Weight:8KG

Measuring Principle

the internal stress of glass and plastic products has a birefringent characteristic. In other words, if there is stress inside of these types of products, light from he polarized lamp will be divided into different units, which produce optical interference phenomenon(ripple patterns) in turn.

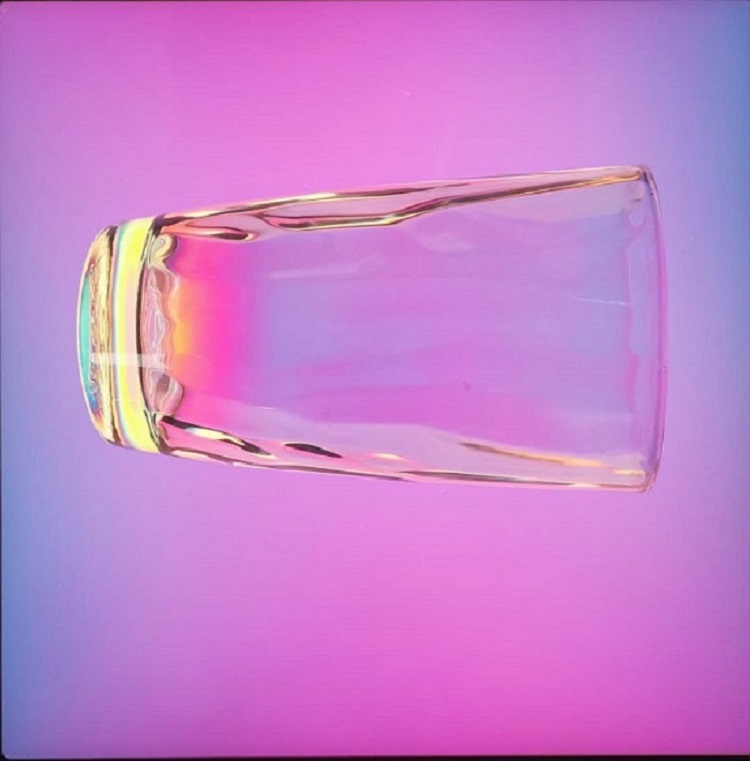

under white-light lamp, you can see aubergine ripples, which is caused by the presence of stress.

from the observation of colored patterns, you can see stress distribution directly, then evaluate and improve the annealing process.

the inspection of plastic molds is more complex as the colored patterns cased by stress is irregular. A similar situation may occur with glass products, which is called stress stretching. for example, a qualified mold will have a large amount of stress released by tension.
