>Products Catalog > Handing Tools > API Y SERIES SLIP TYPE ELEVATOR 3 1/2" for DRILL PIPE & TUBING

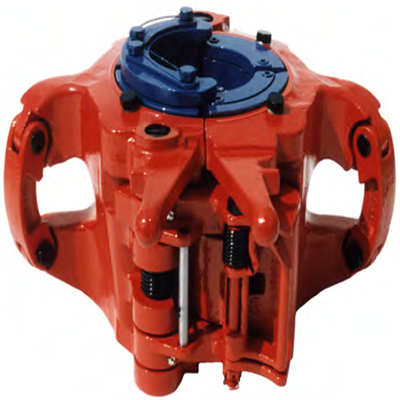

API Y SERIES SLIP TYPE ELEVATOR 3 1/2" for DRILL PIPE & TUBING
| FOB Price: | 1.00 - 100000.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Use: Well Drilling
- Material: High Manganese Steel
- Certification: API
- Type: Hydraulic Support
- Brand Name: UPET
Specifications
"Y" series elevators are conventional slip type elevators for handling tubing and small casing. There are 7 types ranging from 20 to 200 ton capacity and covering pipe sizes from 1.050" to 7 5/8" OD. They feature a four slip design which give an optimum contact on the pipe to prevent bottlenecking and gauge damage. these elevators function as companion tools for the tubing spiders. The "YC" type elevator is capable of handling dual tubing strings. All type "Y" series elevators operate with the latch lock combination for safety. The "MYC" and "YC" provide a 7" and the "HYC" a 10 1/2" of insert contact to grip your casing or tubing.
TECHNICAL SPECIFICATIONS
Type |
Cap |
Size |
Weight |
Link Size |
Min/Max | ||||
tons |
inches |
mm |
lbs |
kg |
inches |
mm |
inches |
mm | |
HYC |
200 |
2 7/8"- 7 5/8" |
73-194 |
997 |
452 |
2 1/4" |
57 |
3 1/2" |
89 |
MYC |
125 |
3 1/2" - 7" |
89 -178 |
750 |
336 |
2 1/4" |
57 |
3 1/2" |
89 |
YC |
75 |
3 1/2" - 7" |
89 - 178 |
445 |
206 |
2 1/4" |
57 |
2 3/4" |
70 |
1.HYC CASING ELEVATOR
the HYC elevator is a powerful 200 ton capacity elevator and can handle from 31/2" to 7 5/8" tubing or casing. the full range can be achieved with the use of three sets of slips. All slips provide a full 10 1/2" of insert contact to firmly grip your casing or tubing. the HYC elevator as with all Type 'Y' series elevators operate with the latch lock combination for safety.
2.MYC CASING ELEVATOR
MYC type elevator is the newest in the series of Y type elevators. with its 125 tons capacity the MYC completes the range of Y type elevators for handling either external upset or API collar type casing or tubing. The MYC has a range of 31/2" to 7", utilizing the same slips as the YC elevator. All slips provide a full 7" of insert contact to firmly grip your casing or tubing. The MYC operates with a latch and a latch lock combination for safety.
.
3.YC CASING ELEVATOR
the YC is an exceptionally versatile elevator that handles either external upset or API collar type casing simply by installing the proper size insert-type slips and slip-setting ring assembly. In addition, slips can be provided that enable the YC to handle dual strings of tubing. To reduce the possibility of the elevator opening under load, a latch lock is provided in addition to the spring type-latch. The rugged, long-lasting slip inserts are easily changed when they become worn.
YT SLIP TUBING ELEVATOR
the YT is an outstanding combination tool for use with any of the power tubing spiders. It has four slips each contacting 9 inches (228.6 mm) of pipe length. the interlocking slips form a circle around the tubing, assuring a uniform grip. Slip inserts are easily replaceable. Only one set of slip bodies is required to handle all tubing sizes from 1.315 (44.4 mm) through 2 7/8" (73.02 mm). A sturdy latch and safety latch lock combination holds the YT securely in closed position.
HYT TUBING ELEVATOR
the HYT is designed to accommodate the widest possible range of tubing. the key is the various combinations possible with three different slip-setting rings, reducing inserts and two sizes of slips. the HYT handles 23/8", 2 7/8" or 31/2" (60.33, 70.02 or 88.9 mm) OD tubing, with any type of upset and any wall thickness. the slip provides a full 12" (304.8 mm) of vertical contact on the pipe. the entire tool is made for long field life, with stainless steel corrosion resistant latch and hinge pins
TECHNICAL SPECIFICATIONS and WEIGHT
Type |
Cap |
Size |
Weight |
Link Size | |||||
tons |
Inches |
mm |
lbs |
kg |
min. |
mm |
max. |
mm | |
YT |
75 |
1.315"-3 1/2" |
33-89 |
355 |
161 |
2 1/4" |
57 |
2 3/4" |
70 |
HYT |
150 |
2 3/8"-3 1/2" |
60-89 |
740 |
336 |
2 1/4" |
57 |
3 1/2" |
89 |
