>Products Catalog > open frame monitor > 18.5 Inch High Brightness Wide Screen Open Frame LCD Monitor with Projected Capacitive Touch

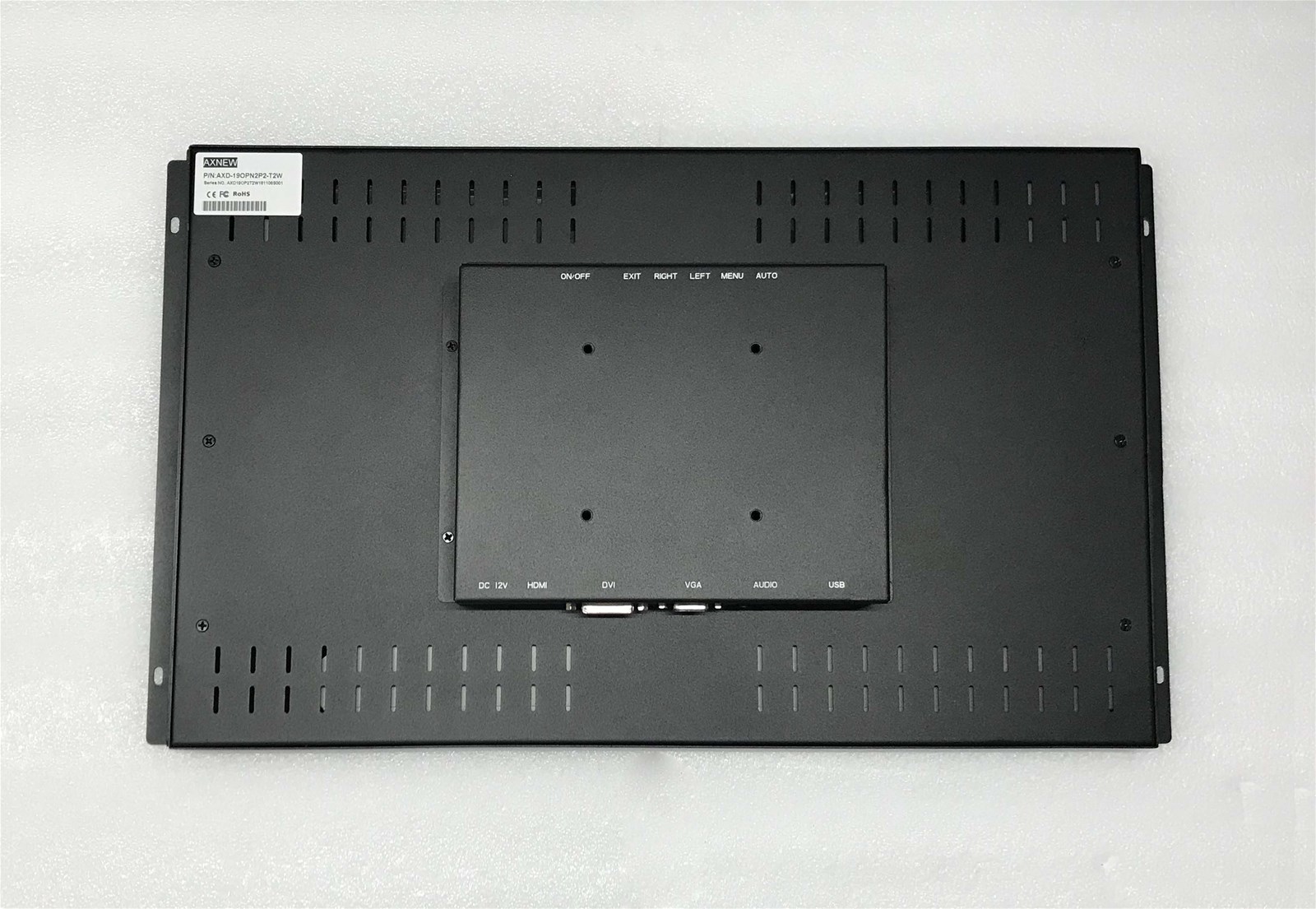

18.5 Inch High Brightness Wide Screen Open Frame LCD Monitor with Projected Capacitive Touch
| FOB Price: | 150.00 - 250.00 USD/Unit |
|---|---|
| Supply Ability: | 3,000 Unit(s) per Month |
| Shipping: | Air , sea , DHL express |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | 2 pieces/carton |
Quick Details
- Brand Name: axnew
- Resolution: 1366x768
- Interface Type: D-Sub,HDMI
- Screen Size: 18.5
- Products Status: Stock
- Model Number: AXD-19OPN2P3 -T2W
- Type: Capacitive
- Size: 18.5
- signal: hdmi, vga
- capacitive touch with anti-vandal: thickness 2.9mm
Specifications
| Display Specifications | |
| Display | 18.5" Color TFT High brightness LCD Monitor |
| Model Name | AXD-19OPN2P3 -T2W |
| Active Display Area (mm) | 413.4 (H)x 234.0(V) |
| Pixel Pitch (mm) | 0.300(H)x0.300(V) |
| Resolution (Pixel) | 1366x768,16.7M (6 bit + Hi-FRC) |
| Brightness (CD/m^2) | 300cd/m2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 22.5W typical, normal operation |
| Touch Screen | Capacitive touch ;USB interface |
| OSD Control | on the back side |
| I/O Connectors | 1x12v,1XVGA,HDMI |
| Power Input | DC 12V,5A 48W |
| Mechanical Specifications | |
| Construction | Steel metal slim frame |
| Dimensions | Subject to the drawings |
| Mounting | Fixing braket;Embedded optional |
| Power source | AC 100~240V/ 12V 4A AC/DC adapter |
| Environment Specifications | |
| Operating Temperature | -5~50℃ |
| Storage Temperature | -10~60℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 18.5" High brightness LCD Monitor with VGA HDMI input and power adapter |
