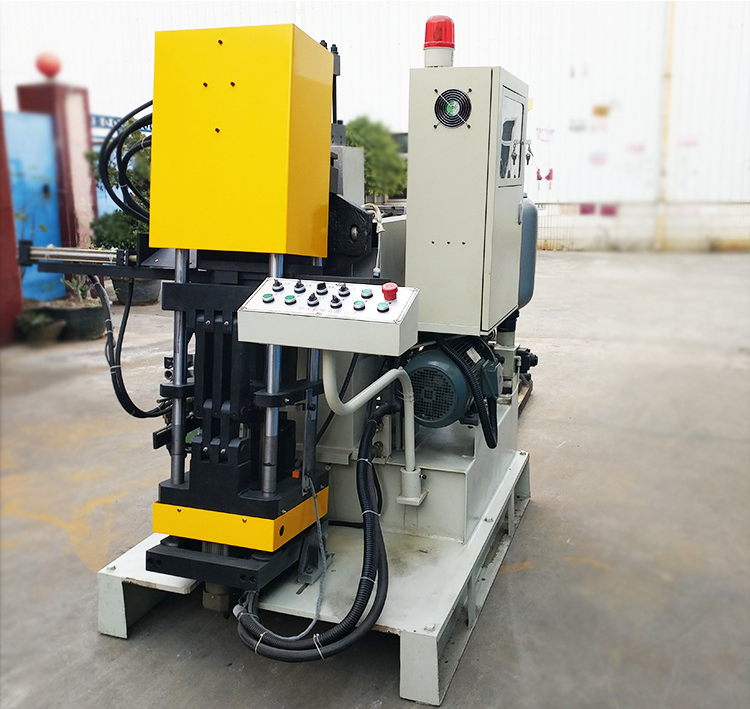

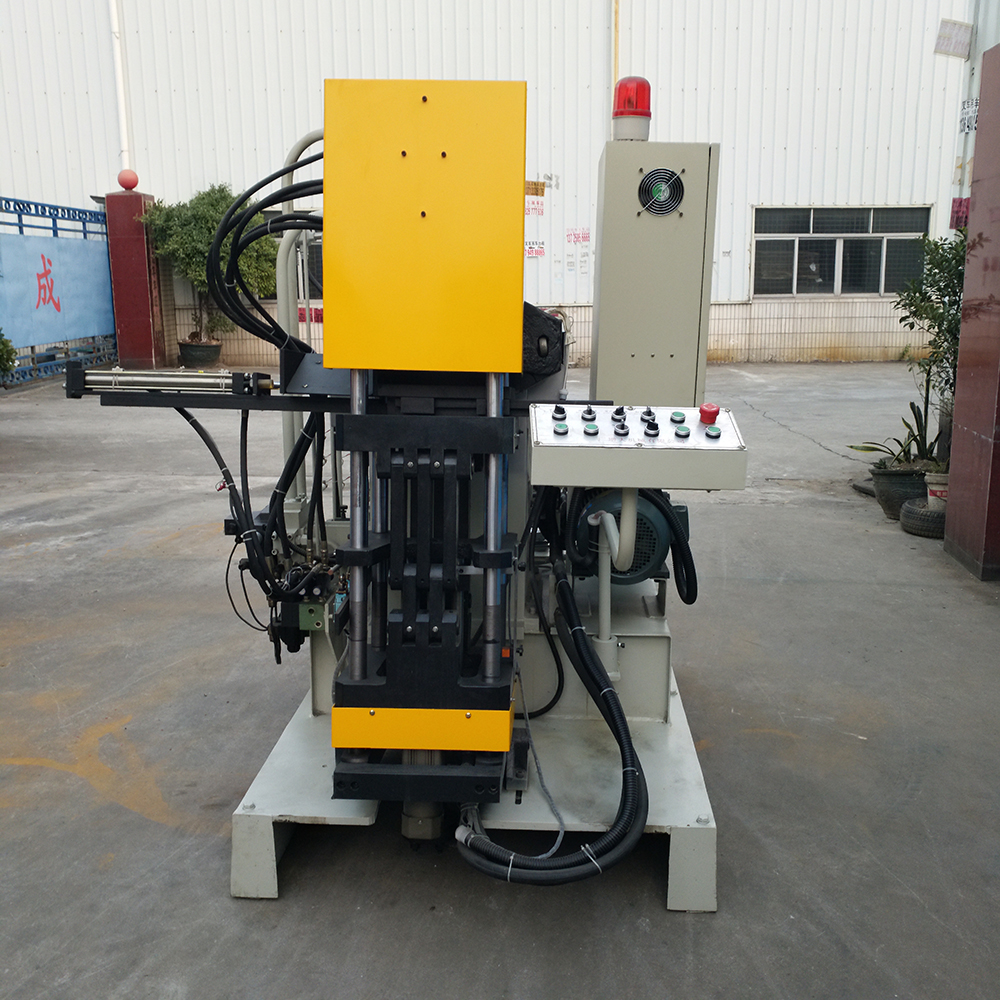

Small Vertical Zinc/Lead Injection Moulding Hot Chamber Die Casting Machine

FOB Price:	18000.00 - 20000.00 USD/Set
Shipping:	By sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ce
Brand Name: HONGHE
Condition: New
Weight: 1500kg
Dimension(L*W*H): 230*90*200cm
Power(W): 5.5kw
Voltage: 380v
Model Number: HHD-15T

Specifications

Small vertical zinc/lead injection moulding hot chamber die casting machine
Small vertical zinclead injection moulding hot chamber die casting machine

Item	15 Ton
Clamping Force	150KN
Mold Thickness	120mm-180mm
Space between Tie Bars	234mm*240mm
Diameter of Tie Bars	35mm
Injection stroke	70mm
Shot Weight	0.4 Kg(Zn)
Plunger diameter	35mm
System Working Pressure	5-7 Mpa
Motor Capacity	5.5 KW
Nozzel heater consumption	1.5 KW
Melting Pot Capacity	70 Kg(Zn)
Diesel Furnace Consumption	2 Kg/h
Machine Weight	1.5 Ton
Machine Dimension	23090200cm
