Chongqing Zora Mechanical & Electrical Equipment Co., Ltd.
China Manufacturer with main products: Transformer Tester Equipment, Secondary Circuit Tester Equipment, High Voltage Tester Equipment, Resonant Test System Equipment |
Home
>Products Catalog > AC 0-100KV Transformer Oil Breakdown Voltage Efficient Transformer Oil Bdv Tester at Mouth For Industrial
AC 0-100KV Transformer Oil Breakdown Voltage Efficient Transformer Oil Bdv Tester at Mouth For Industrial
| FOB Price: | 630.00 - 930.00 USD/Piece |
|---|---|
| Supply Ability: | 200 Piece(s) per Month |
| Shipping: | Express/ship |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 1.Wooden box with foam inside; 2.No fumigation,not influence the delivery; 3.Standard of IEC; 4.Customer OEM packing is also available; 5.Can be delivered by air,ship; 6.The products are packaged in paper or wood. |
Quick Details
- Usage: Transformer Oil BDV Tester
- Power: Electronic
- Brand Name: GOLD
- Warranty: 1 years
- weight: 16KG
- Model Number: GDYJ-502A
Specifications
, a type of and cooling oil used in and other electrical equipment, needs to be periodically to ensure that it is still fit for purpose. this is because it tends to deteriorate over time. Testing sequences and procedures are defined by various international standards, many of them set by .Transformer oil testing consists of measuring and other and properties of samples of the oil, either in a laboratory or using portable test equipment on-site.
Product Description
AC 0-80/100KV Epoxy Transformer Oil Breakdown Voltage Test Set Introduction:
L It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;Proof test:5 minutes standard test, Manual test;
L the oil test vessel with temperature measurement unit, so it can detect oil temperature.
L It has large LCD display(256*128mm), all the selection can be done by touch panel with color LCD;
L It also with micro-printer and can store 100 groups data, test data can also be upload to PC and output word report automatically;
L It is multi-functional, stable, and easy for operation .
AC 0-80/100KV Epoxy Transformer Oil Breakdown Voltage Test Set Specifications:
No. |
Parameters |
Specifications |
1 |
Output voltage |
AC 0~80KV (100KV for choice) |
2 |
Rate of voltage rise |
0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
3 |
Max. Test times |
9 |
4 |
Stir time |
0~999s |
5 |
Wait time |
0~999s |
6 |
Measurement accuracy |
±(1% of full scale + 2 digits) |
7 |
Resolution |
0.1KV |
8 |
Oil Temperature measurement range |
0°C to 70°C, or better |
9 |
Temperature resolution |
1°C, or better |
10 |
Data storage |
100 groups |
11 |
Weight |
38kg |
12 |
Size |
550 mm*500mm*580mm |
13 |
Power supply |
AC220V, 50Hz/60Hz |
14 |
Working environment |
Room temperature to 45°C, humidity<85% |

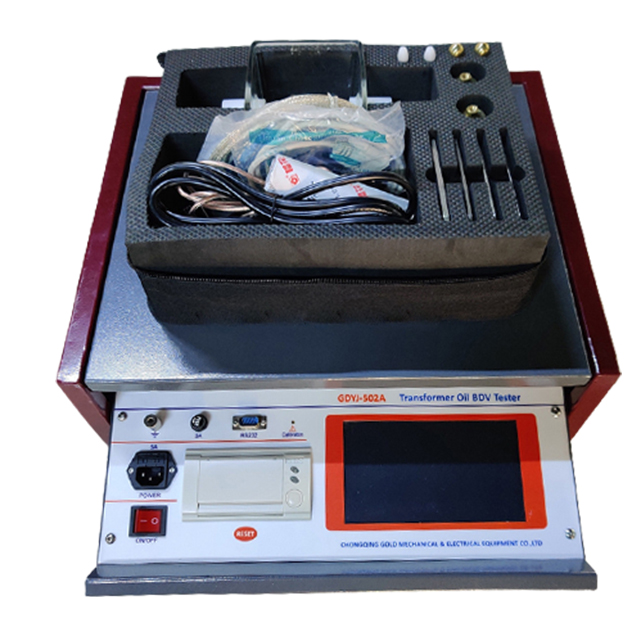

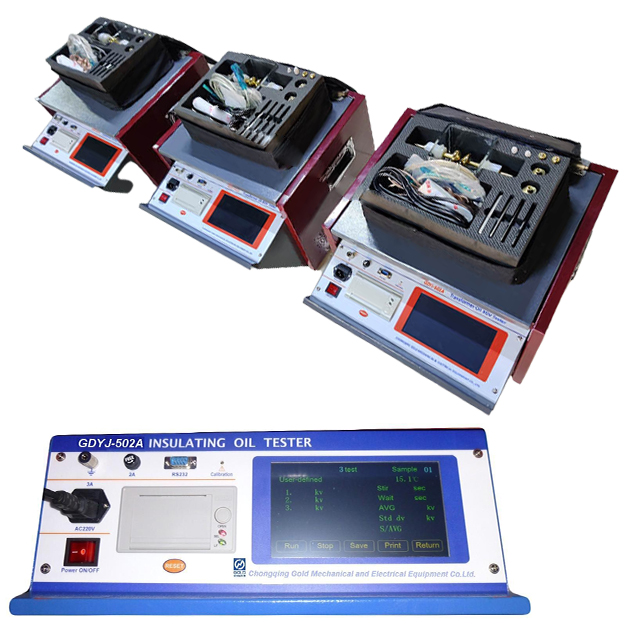

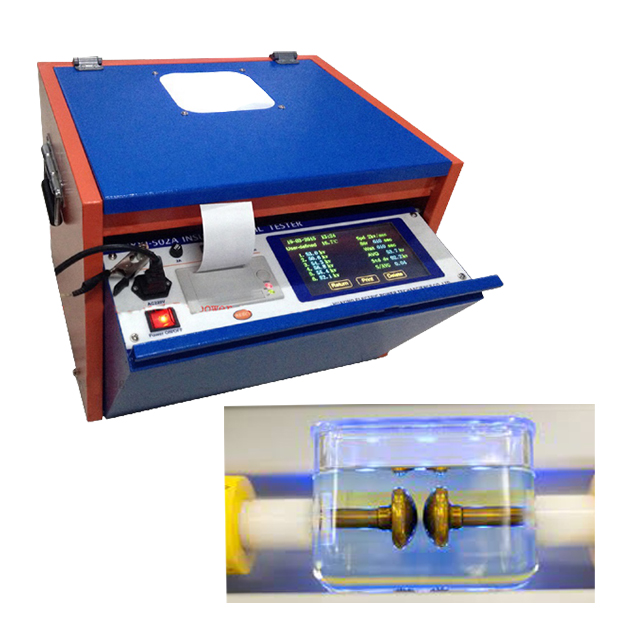

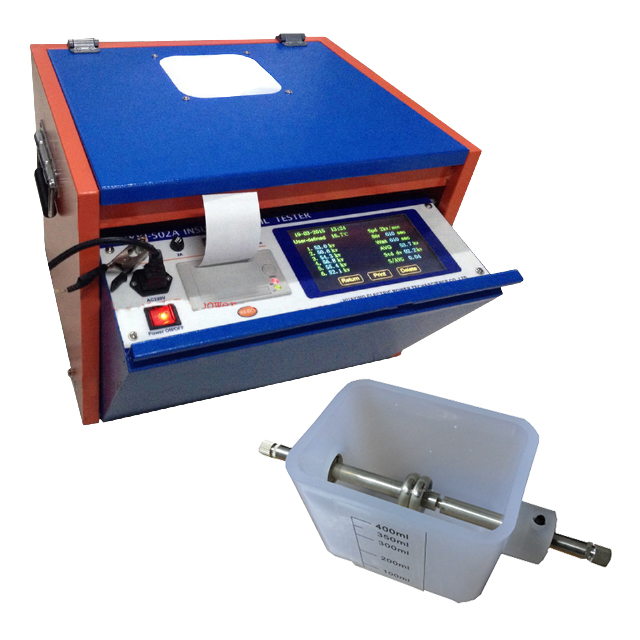

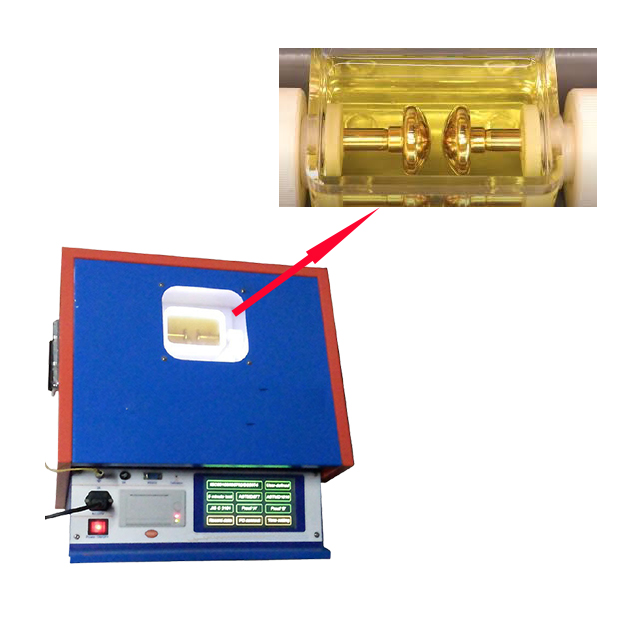

AC 0-80/100KV Epoxy Transformer Oil Breakdown Voltage Test Set GDYJ-502A Product display
CHONGQING GOLD
MECHANICAL & ELECTRICAL EQUIPMENT CO., LTD
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd. Mainly design and manufacture the oil purifier and electrical testing equipment for more than 11 years.
after several years' development, our products have become high intelligent and wide coverage. and our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
and we have gained strong advantage and high reputation in international market.
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
