2021 New Type Multi Head Engraving Machine 4 Axis CNC Wood Router with 4 Spindle

FOB Price: 7000.00 - 8000.00 USD/Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE
  • Brand Name: UnionTech
  • Condition: New

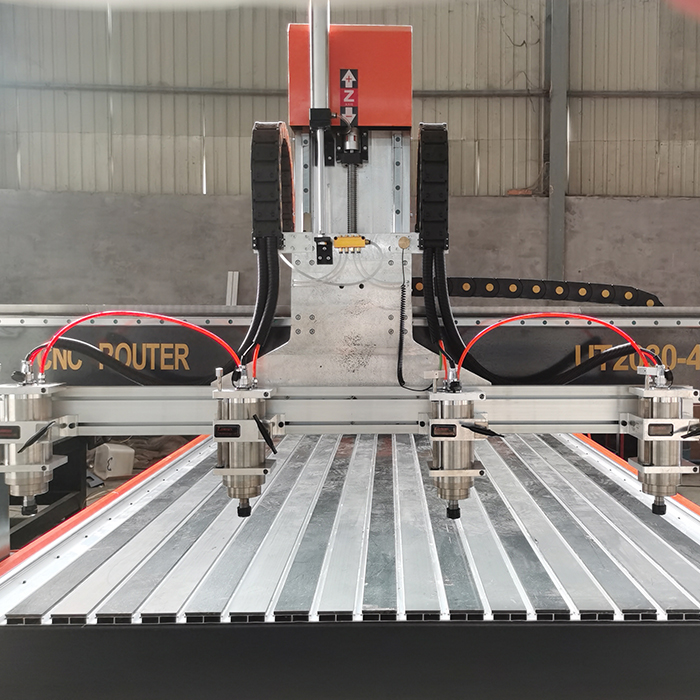

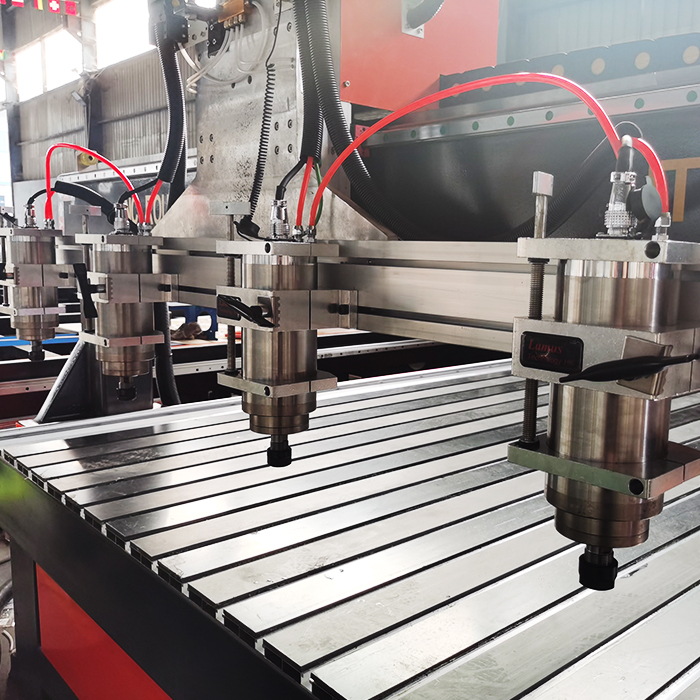

2021 New Type Multi Head Engraving Machine 4 Axis CNC Wood Router With 4 Spindle


Product Description

2021 New Type Multi Head Engraving Machine 4 Axis CNC Wood Router with 4 Spindle


2000 * 3000mm the standard working size, equipped with 300mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. We have Italian HSD brand spindle for option.


  1. UnionTech 4 axis CNC router Uses HIWIN25 linear square rails, XYZ axis adopts import ball

    screw, move smoothly, high accuracy carving. High-speed low noise.

  2. UnionTech 4 axis  CNC router Has widened machine head part assembly additional bob-weight.

    and ancillary shorting, make the whole machine Move more smoothly.

  3. UnionTech 4 axis CNC router with computer connection directly, support break, continue

    Carving after cut off electric.

  4. UnionTech 4 axis CNC router has multi-function, it can Make the machine work on flat or cylinders.



X,Y,Z Working Area

2000*3000*300mm for flat working,

200mm diameter, 2000mm length for rotary axis

Table Surface

Movable T-slot Table


Welded Structure

X, Y Structure

25# HIWIN linear guide, helical rack

Z Structure

Hiwin Rail Linear guide and TBI Ball Screw

Max. Power Consumption

(without Spindle)2.5kw~3kw

Spindle Power

4* 3kw water cooling spindle

Spindle Speed


Drive Motors

Leadshine 850W servo motor

Working Voltage

AC380V/50-60Hz,3PH (Option: 220V/1phase)

Command Language

G Code

Operating System

NCstudio control system

Rotary device

4 sets, 200mm diameter

Computer Interface


Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Optional parts

Japanese YASKAWA servo motor,

Italy HSD air cooling spindle




  Product details:




   World best brand Italy HSD 3kw air cooling

   spindle. ER25 collet.
   Good qualiy and high precision. 4.5kw, 6kw,

   7kw for Options.



   Leadshine pure servo motor and driver,

   powerful and high quality, with alarm function.
   Chinese easy servo motor or YASKAWA servo

   motor for options.

 Weihong 95A four-axis control system. Computer-   controlled, fast reading speed. Intelligent   processing memory, supports power fail to

 safeguard and Breakpoint function.








1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,Craft sash,

Composite gates, Cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,Crystal word making, Blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial Marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. Relief sculpture, 3D engraving & Cylinder object engraving.



  the factory to show:


Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. with advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.




Q1. Delivery time of CNC router machine?
UnionTech standard size and configuration CNC router machine delivery time is 7 days, ATC series machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 25 days.
 Q2. Can you send machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, they can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
 Q3. this is the first time to use CNC router machine, is it easy to operate?
Yes, it is easy for a newer, if you can draw with software, the machine operation is no problem, because we will support:
1).English guide video and instruction book together with the CNC router.
2).Free training course in our factory. Engineers are available to serve overseas.
