Zibo Yuhai Electronic Ceramic Co., Ltd.
China Manufacturer with main products: Piezoelectric Ceramic Disk, Piezoelectric Ceramic Ring, Piezo Tube, Piezo Sphere, Piezo Transducer, HIFU Piezo, Piezoelectric Ceramic Plate,... |
Piezoelectric CeramicDisc PZT-5H
| FOB Price: | 0.30 - 20.00 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: Yuhai
- Size: Custom
- Type: Disc
- Material: PZT-5H
- Color: yellow
Specifications

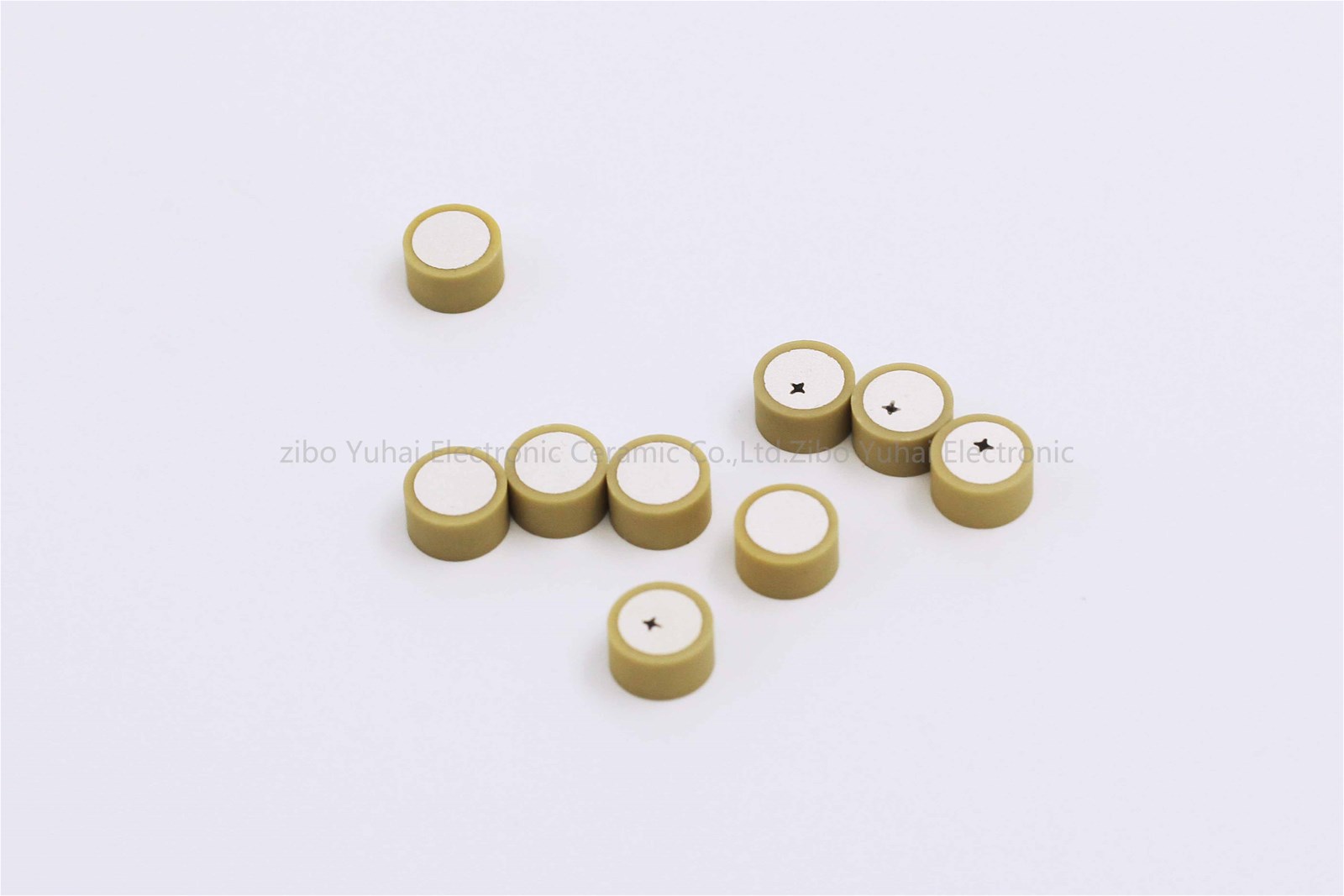

Piezoelectric ceramic disc
Quick delivery
High performance
Custom electrode
Features:
- Sizes from 3mm up to 200mm
- Thickness from 0.2mm up to 20mm
- Choice of metallisation (Silver, Nickel, Gold and others on request)
Technical data:
Dimensions: diameter 3mm, thickness 2mm
| Radial Frequency(FM) | 508 KHz ± 2KHz |
| Statics Capacity (pF) | 110pF ± 12.5% |
| Dielectric loss(tgδ)(1v,KHz) | ≤2% |
| Frequency Bandwidth F |
>138000 Hz |
Test Condition: 25±3 °C 40~70% R.H.
Fr, Zm, Kr => Radial mode vibration
Cs tanδ => LCR meter at 1KHz 1Vrms
Material: PZT-5H
PZT-5H has very high permittivity, coupling, and piezoelectric constant, but lower time stability. It is used in applications requiring fine movement control or for sensitive receivers. Its low Curie temperature restricts its operating temperature range. Applications include medical diagnostics, industrial NDT, STM/AFM, and nano-positioning.
| "Soft" PZT materials | |||
| Properties | PZT-5H | ||
| Dielectric Constant | Tr3 | 3200 | |
| Coupling factor | KP | 0.68 | |
| K31 | 0.38 | ||
| K33 | 0.76 | ||
| Kt | 0.52 | ||
| Piezoelectric coefficient | d31 | 10-12m/v | -275 |
| d33 | 10-12m/v | 620 | |
| g31 | 10-3vm/n | -9.7 | |
| g33 | 10-3vm/n | 22 | |
| Frequency coefficients | Np | 1900 | |
| N1 | 1393 | ||
| N3 | 1550 | ||
| Nt | 2100 | ||
| Elastic compliance coefficient | Se11 | 10-12m2/n | 18 |
| Machanical quality factor | Qm | 70 | |
| Dielectric loss factor | Tg δ | % | 2 |
| Density | ρ | g/cm3 | 7.5 |
| Curie Temperature | Tc | °C | 230 |
| Young's modulus | YE11 | <109N/m2 | 56 |
| Poison Ratio | 0.36 |
Yuhai company also provides
Piezoceramic materials (PZT), more than 30 formulations of piezo materials
Piezoceramic components
Customized components and ultrasonic transducers/transducers
Various different shapes in many different geometries such as disks, plates, tubes, customized shapes
High resonant frequencies to 10 MHz
Piezo composite machining
Core Competences of Yuhai
More than 30 formulations of piezoelectric materials, stable and superior performance, to meet various piezo applications.
Forming process with dry pressing, rolling film and isostatic pressing.
High precision machining equipment for other special shaped components such as inner, outer circle and hemisphere.
Be the manufacturer of supplying the most complete components varieties in China.
Certified in accordance with ISO 9001.
Product consistency reached 99.9%
OEM Adaptations
Piezo transducers for ultrasonic applications
Assembly of complete transducer components
