Automatic Hand Sanitizer Production Line

Specifications

Hand sanitizerProduction line accessory

the automatic filling line has the functions such as automatic filling and screw type bottle feeding, bottle detecting (no bottle no filling,

No bottle no cap feeding system), connect automatically label machine and packing machine.

1.AUtomatic bottle unscrambler machine

It is able to arrange for the bottle in line erectly to next feeding procedure, easy linking in line the equipment has beautiful figure, advanced design, novel structure. Stably running, low noise, easy operation and cleaning.

Filling quantity: 100-5000 ml plastic bottle

Yield of arranging: ≥99%

Power supply:220 V 50Hz

Speed control: Motor adjusting speed

Single machine noise: ≤60 dB

Weight: Approx.500 Kg

Production capacity: 80-120 b/min

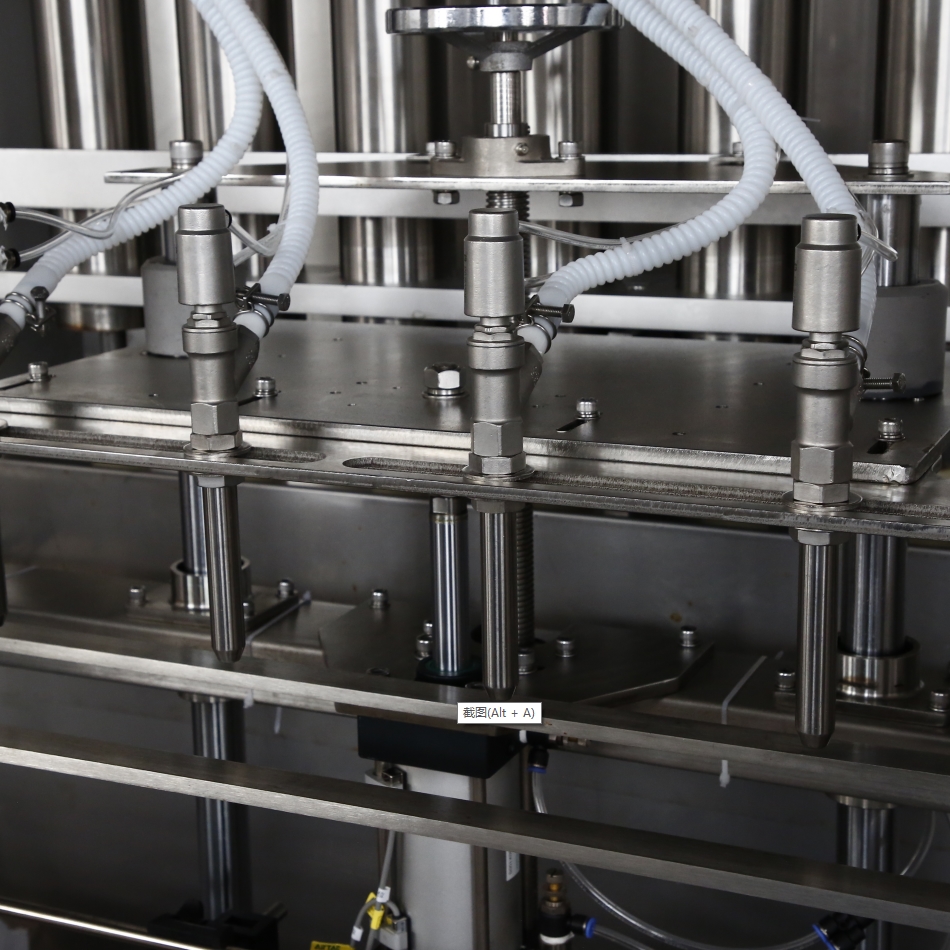

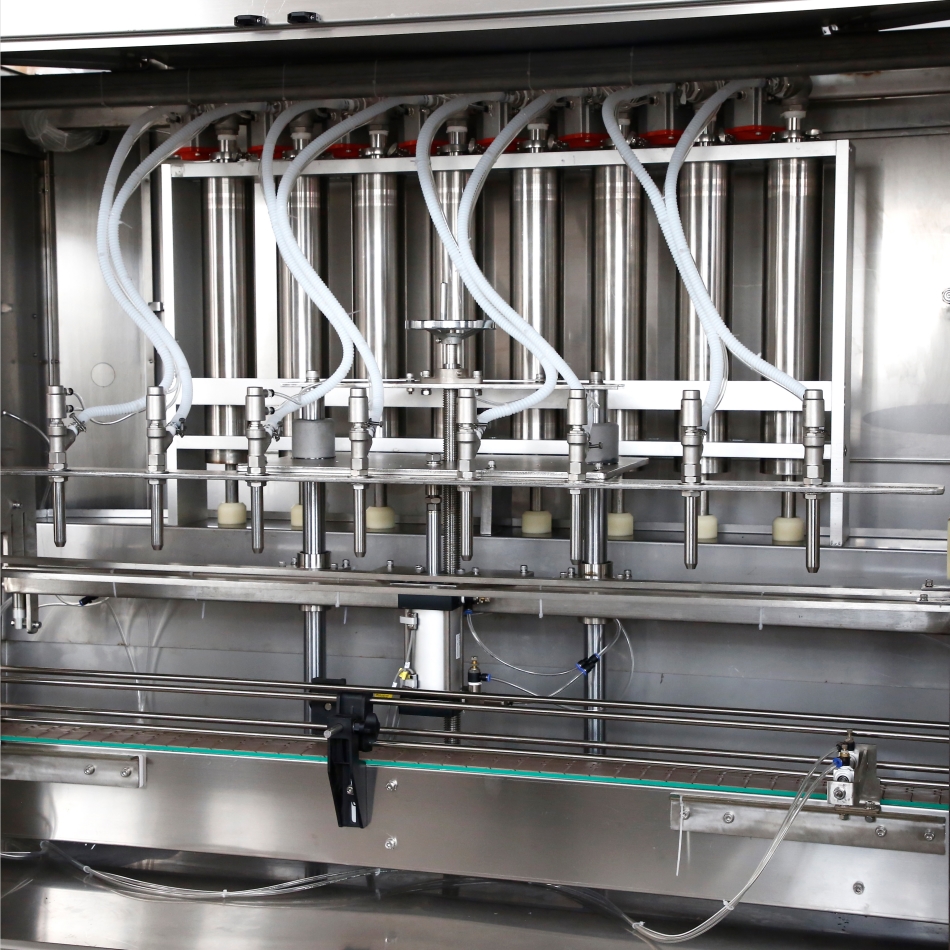

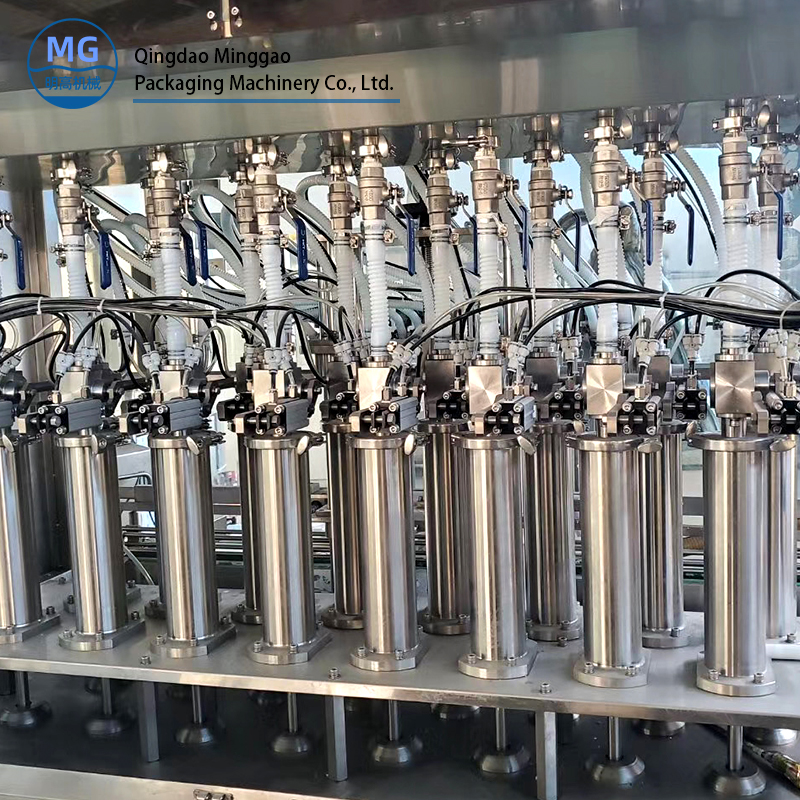

2.AutomaticHand sanitizerFilling machine

1.Filling nozzles head optional 6-20 nozzles

2.Corrosive liquid nozzles head material:titanium alloy and PP/PVDF/PFA material

3.Viscous nozzles head material:Stainless steel 316L

4.Filling speed from 2000BPH-15000BPH

5.Suitable bottle capacity 50ml-5000 ml

6.Filling accuracy ±0.1%

8.Anti explosive motor

9.PLC:Siemens operation screen

10.Supply power:220V/380V

11.Machine weight:550kg

12.Power:1.5Kw

13.Applicable bottle diameter:30mm-100mm

14.Machine size:2000mm * 1200mm * 2300mm

15.Air pressure:0.4Mpa-0.6Mpa

3.AutomaticSanitizerCapping machine

Automatic inline capping machine has four speed adjustable motors which separately used in lid arranging, sleeve lid, lid capping and conveying,in the capping process can be automatic arrange lid, automatic sleeve lid, automatic capping. As the capping machine use bottle clamping belt to ensure the bottles not fall down when lid sleeving and capping, this capping machine has simple structure, good steadiness, adjust convenient, no need to change spare parts, only need some adjustment. Suits for the round shape, rectangular flat shaped and irregular shape bottle capping for foodstuff,pharmacy, cosmetic, daily chemical, fertilizer and chemical industry.

Current supply: 220 V,50Hz (or according to client voltage requirement)

Power: 2.2 Kw

Capping Production speed:2000~9000 bottles/hour

Container month diameter:40-100mm

Suitable cap diameter: 20-90 mm

Machine weight: 650 kg

Machine dimension (LxWxH):2000x850x2050mm

4.Automatic sanitizer label machine

the machine adopts Germany advanced technology and high- powered components small inertia servo motor to reach the real perfect labeling. the system carries out high response and highly reliability by the professional approved program controller of German Siemens CO. and Mitsubishi servo system, it carries out communication between machine and man by touch screen, the precision of the main machine can up to 0.01 meter per min during the process of the sending label control.

5.Automatic case packing machine

Automatic case packing machine is an automatical equipment gathering the case opening,stocking,casing,sealing and other functions in one machine. We can also take the optional mechanical hand to achieve the labeling on the cases and cases stocking for further transportation. The stable speed of this machine can reach 4 cases per minutes. All the performances of the machine have been reach the top level technology of the world.

Speed:360 cases/hour.

Case size: Min 300 x 250 x 200 mm Max 600 x400 x 400 mm

Power AC 380 V 3P 50HZ 7500

Air pressure: >0.6 MPa

Air Consumption: <1 CMB/h

Dimension:4000x2000*2600mm

Weight: 1200 kg

6.Automatic conveyor

Conveyor systems:

Single, dual or triple conveyor extension

Manufacturing of MG conveyors (single, double or triple) in anodized aluminium or stainless steel with transfer curves (flex chains). the width of the conveyor and the motorization power are not standardized: we manufacture customized conveyors.

Stainless steel or polyethylene tube guides are integrated into the conveyor. this complementary solution allows to optimize your packaging line (automatic and semi-automatic filling and labelling machines).

Our custom conveyors/extensions can be adapted to all packaging machines and all automatic labelling machines, automatic filling machines and complete packaging lines designed and manufactured by MG.

MG variable speed conveyors are built to fit your production needs. They are available in a wide variety of lengths, widths, and construction materials and types. both straight and curved configurations (L, S, and U-shapes) are available to help you maximize your production proficiency and fit your space requirements. The modular design allows you to add complete conveyors or extensions to your existing production line. Whatever your packaging environment may be, MG will manufacture the right conveyor to suit your needs.
