Home  >Products Catalog > Sales Recommend Small CNC Router Machine Engraving CNC Router 1325 for MDF Wood

Sales Recommend Small CNC Router Machine Engraving CNC Router 1325 for MDF Wood

FOB Price: 4400.00 - 4800.00 USD/Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE
  • Brand Name: UnionTech
  • Condition: New


Sales Recommend Small CNC Router Machine Engraving CNC Router 1325 for MDF Wood


Product Description

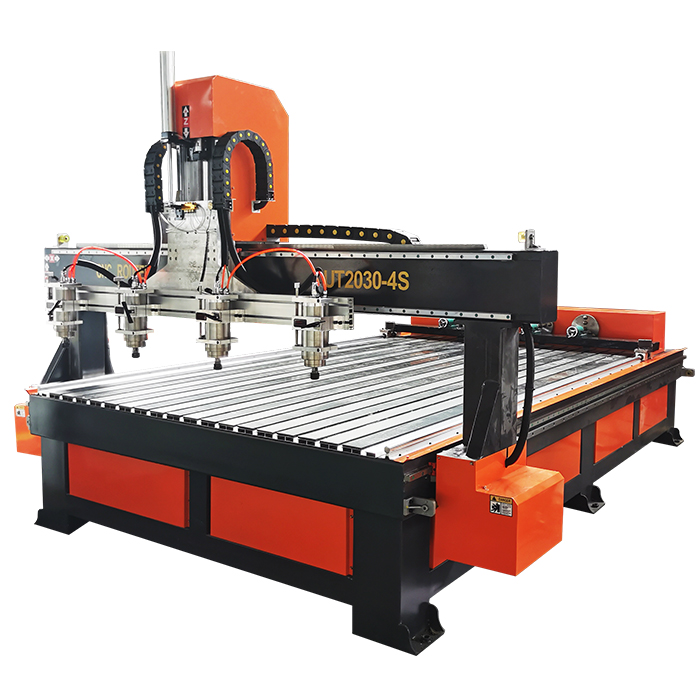

China Manufacture Furniture Making CNC Engraving Router 4 Head Wood Carving Machine for Sale



2000 * 3000mm the standard working size, equipped with 300mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. We have Italian HSD brand spindle for option.


  1. UnionTech 4 axis CNC router Uses HIWIN25 linear square rails, XYZ axis adopts import ball

    screw, move smoothly, high accuracy carving. High-speed low noise.

  2. UnionTech 4 axis  CNC router Has widened machine head part assembly additional bob-weight.

    and ancillary shorting, make the whole machine Move more smoothly.

  3. UnionTech 4 axis CNC router with computer connection directly, support break, continue

    Carving after cut off electric.

  4. UnionTech 4 axis CNC router has multi-function, it can Make the machine work on flat or cylinders.



X,Y,Z Working Area

2000*3000*300mm for flat working,

200mm diameter, 2000mm length for rotary axis

Table Surface

Movable T-slot Table


Welded Structure

X, Y Structure

25# HIWIN linear guide, helical rack

Z Structure

Hiwin Rail Linear guide and TBI Ball Screw

Max. Power Consumption

(without Spindle)2.5kw~3kw

Spindle Power

4* 3kw water cooling spindle

Spindle Speed


Drive Motors

Leadshine 850W servo motor

Working Voltage

AC380V/50-60Hz,3PH (Option: 220V/1phase)

Command Language

G Code

Operating System

NCstudio control system

Rotary device

4 sets, 200mm diameter

Computer Interface


Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Optional parts

Japanese YASKAWA servo motor,

Italy HSD air cooling spindle
