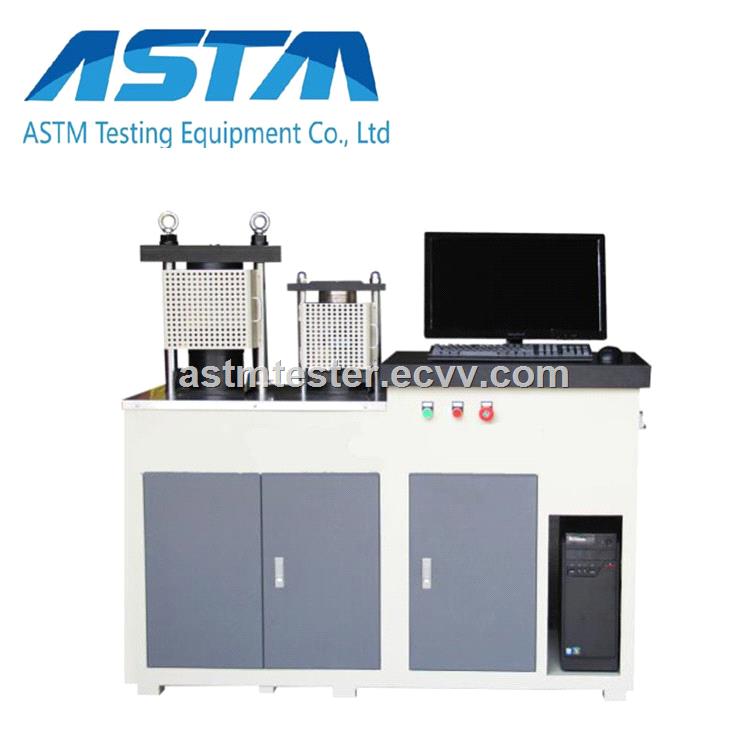

YAW-300C Computer Control Compression-Flexural Testing Machine

FOB Price:	7500.00 - 20000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	Qingdao port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	15 working days after receiving 100% T/T payment

Quick Details

Usage: Cement Testing Machine
Power: Hydraulic
Brand Name: ASTM
Warranty: 12 months
weight: 350kg
Model Number: YAW-300C

Specifications

1.Product description

the test machine is mainly used for compressive strength test of cement, concrete, rock, red brick and other materials; the measurement and control system adopts high-precision digital servo valve, and has a closed-loop control function to achieve constant force loading. The machine runs stably and reliably. It can also be used for the compression test of other materials or the flexural performance test of concrete slabs after the installation of special fixture. Widely used in cement plants and quality inspection stations at all levels.

2.Technical Parameter

Item	Compression	Flexural
Max.Test Force	300kN	10
Test Measurement Range	20kN-300kN	1-10
Test Force and Relative Error Value	≤±1%	≤±1%
Upper and Lower Compression Plate Space	250mm	190mm
Max. Piston Stroke	80mm	60mm
Tow column space	245mm	180mm
Compression Plate size	Φ160mm	Φ160mm
Motor Power	0.75KW
