Suzhou Surpon Instrument Co., Ltd.
China Manufacturer with main products: Signal Isolator, Isolated Safety Barrier |

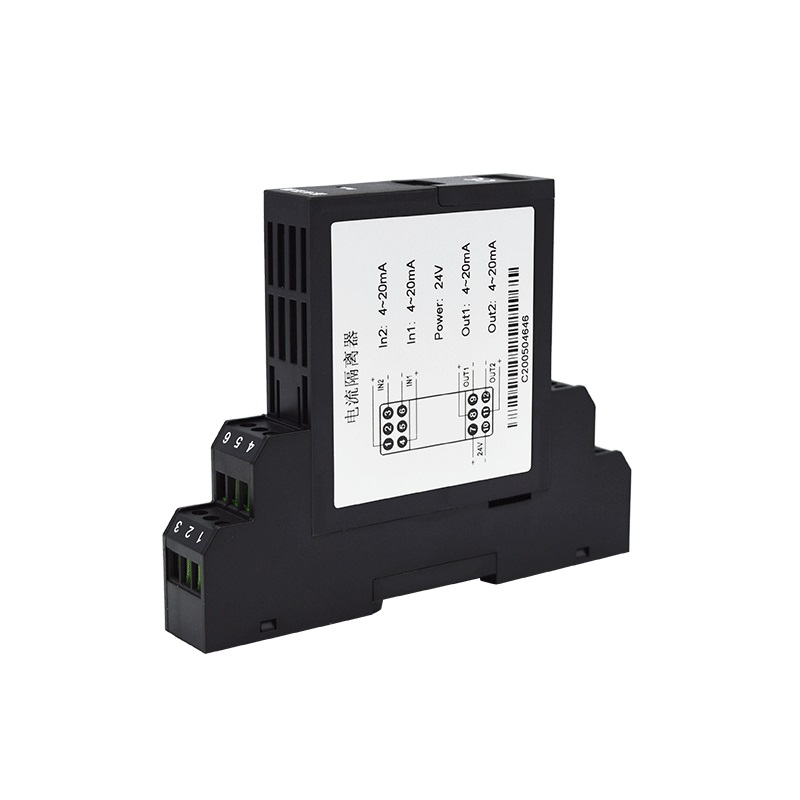

XP Series 2-Channel Signal Isolator
| FOB Price: | 35.00 - 300.00 USD/Box |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Brand Name: surpon
- Size: XP
- Type: XP
- Material: ABS plastic
- Color: black
Specifications
XP Series 2-channel Signal Isolator (two inputs two outputs) is an instrument used in automatic control system to transmit, convert, isolate, transfer and calculate industrial signals. It can cooperate with various industrial sensors and field instruments to meet users' needs of monitoring remote data. It is widely used in data acquisition, signal transmission andConversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.
Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance
XPSEries2-channel SIgnalISolator code table:
Examples of ordering
Refer to the code table above and provide the model number correctly.
Example 1 input: two channels 4-20mA, output: two channels 4-20mA, power supply: 24VDC
order model: XP-A-A420- A420-A420-A420-D(abbreviated as: XP-A-2A420-2A420-D)
Example 2 input: two channels 0-10V, output: two channels 4-20mA, power supply: 24VDC
order model: XP-V-V010-V010-A420-A420-D(abbreviated as: XP-V-2V010-2A420-D)
Example 3 input: two channels 2-wire 4-20mA, output: two channels 2-wire 4-20mA, power supply: output loop
order model: XP-D- A420- A420-L420-L420(abbreviated as: XP-D-2A420-LA420)
Example 4 input: two channels 2-wire 4-20mA, output: two channel 4-20mA, power supply: 24VDC
order model: XP-D- A420- A420-A420-A420-D(abbreviated as: XP-D-2A420-2A420-D)
