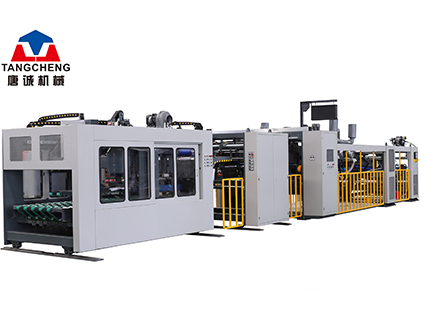

Hot Sale Automatic Corrugated Cardboard Box Stitching& Gluing Down Folder Machine
| FOB Price: | 300000.00 - 346000.00 USD/Set |
|---|---|
| Shipping: | Sea shipment delivery |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Wooden case packaging |
Quick Details
- Type: Other
- Brand Name: No
- Packaging Material: Wood
- Packaging Type: Case
- Application: other packaging machine
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 17000 x4100 x 2900mm
- Weight: 25TONS
- Model Number: X-300-1224-1228
- Power: 80KW
- Voltage: 380V 50HZ
- Driven Type: Electric
- Automatic Grade: Automatic
Specifications
Flexo printing slotting inline down folding gluing stitching machine
Automatic corrugated box folder gluer stitcher inline flexo printer slotterMachine mainly used in food corrugated carton box, fruit carton box,Industry carton box and other various corrugated packaging application. It'swith high speedFolding gluing StitchingProduction,PLC program system,Intelligent controlling and oRder memory system application.
Technical Data
Model X300-1224 X300-1228 Max gluing speed 300pcs/min 280pcs/min Max feeding size 1200*2400mm 1200*2800mm Min gluing feeding size 350*740mm 350*740mm Min stitching feeding size 350*800mm 350*800mm Available corrugated board 3ply, 5ply, 7ply 3ply, 5ply, 7ply Max stitching speed 120pcs/min (3 stitching) 120pcs/min (3 stitching) Max stitching head speed 1200 Stitches/min 1200 Stitches/min STitchingDistance 30-80mm 30-80mm Slanting of the stitch 45 45 Total power 96kw 96kw Voltage 380V, 50HZ, 3phase 380V, 50HZ, 3phase Weight 25tons 26tons Dimension 15600*4200*2900mm 15600*4600*2900mm
