3.0V 6mm Micro Coreless Plastic Planetary Geared Motor for Automatic Camera Monitor

FOB Price:	1.90 - 9.00 USD/Piece
Supply Ability:	20,000 Piece(s) per Day
Shipping:	FOB/CIF/DAP
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard carton

Quick Details

Voltage(V): 3.0
Type: Gear Motor
Certification: CE,ROHS
Usage: Electric Bicycle,Fan,Home Appliance
Brand Name: Kegu Motor
Efficiency: IE 1
Output Power: 0.5W
Continuous Current(A): 0.01A
Speed(RPM): 46RPM
Protect Feature: Drip-proof
Commutation: Brush
Construction: Permanent Magnet
Torque: 20G.CM
Model Number: KG-06P0610

Specifications

Product Details

Description

Mini 6mm motor,

1. Rated Voltage: 3.0-12V

2. No Load Speed: 11-3824 rpm
3. No Load Current: 40 mA
4. Rated Load Speed: 10-3229 rpm

5. Rated Load Current: 100 mA

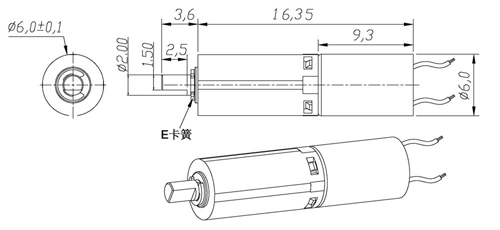

Drawing of 6mm plastic gear motor

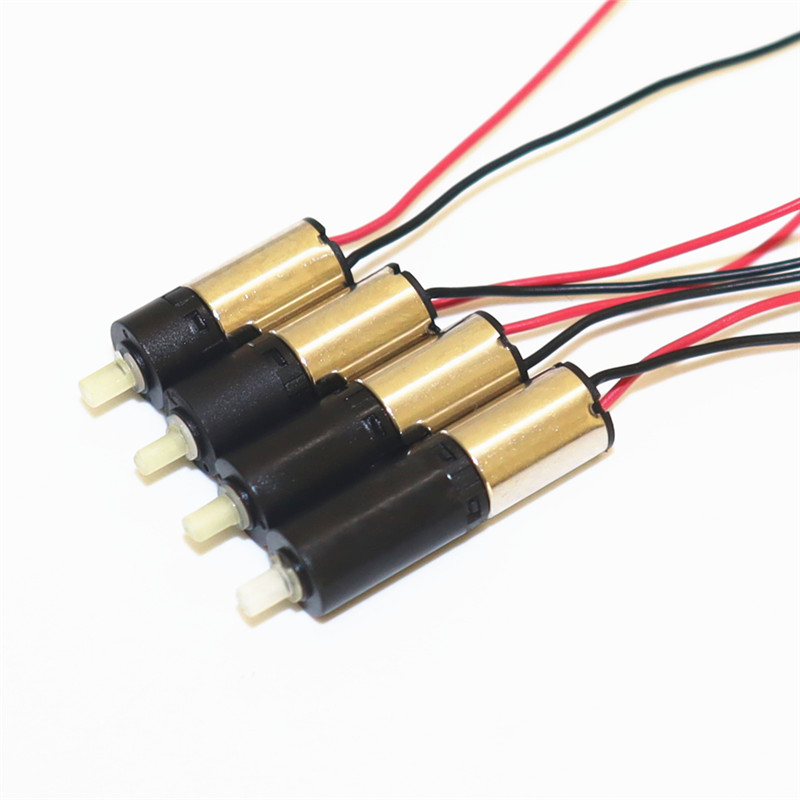

30V 6mm micro coreless plastic planetary geared motor for Automatic camera monitor

6mm plastic planetary gear motor 1200 rpm motor, 3v 6mm Micro DC Gear Motor with Planetary Gearbox

3v 6mm plastic planetary gear motor is widely used in
1. Toy,Remote control, Robot, amera, Robotic hand, Toy, Remote control device, and etc.

2.Low noise,low current,no vibration,and long service life

5.Reduction Ratio:26:1, 136:1, 700:1

4.Size:6.0*16.35mm or 18.7mm or 21.05mm, just 9.3 mm length mini motor

5.We can offer the samples first,the MOQ is 1000 pieces,the delivery time is 20-40 days

6mm 3v plastic gear motor

1. Applications: Audio and visual products, high-end toys, personal health care products and security equipment, massager, robot, Mascara,camera

2. Operating Environment: -10~+60°C; 15~90%RH

Shen Zhen Ke Gu Technology Co.,ltd provide small gearmotors have high performance for any industry. Best quality assured. Kegu-motor provides OEM & Custom gear motors. Varied custom sizes geared motors for the design of your prototype applications. You can get a free gearmotor quote by using bottom form, just tell us which geared motor model your are interested or tell us the torque, speed, reduction rito, voltage, size you need of the motors with gears, and you will receive a professional support in 24 hours.

We are professional manufacturer DC Motor. Excellent quality and Competective prices make our products to be popular in oversea Markets Motor Series: RF-300CA-14270 RF-300CA-11440 RF-300CA-13300 RF-300CA-11400 RF-300CA-12400 RF-300CA-08510 RF-300CA-10345 RF-300CH-11400 RF-300CH-11440 RF-300F-12350 RF-300C-11440 RF-300PA-11400 RF-300FA-11420 RF-310TA-11400 RF-310TA-11450 RF-320CH-12400 RF-320EH-13330 RF-330FA-13250 RF-330TA-09500 RF-370CA-15370 RF-370CA-12560 RF-370CH-13350 RF-370CB-11670 RK-370CA-10800 RK-370CA-18260 FF-130RH-2860 FF-130SH-11340 FF-130SH-14230 FK-130SH-09450 FF-180PH-2852 FF-180PH-4022 FF-180SH-2657 FF-180SH-10320 FF-180SH-4026 FF-180SH-14210 FK-180SH-17140 FC-280SA-18165 FC-280SA-16200 FC-280SA-4523 EG-530-6F(6B) EG-530-9F(9B) EG-530-2F(2B FF-N20-10190 FF-N20-13115 FF-N30-10190 FF-M20VA-8Z130 FF-M20VA-10100 FF-M20VK-7Z170 RS-360SH-2885 RS-360SH-10500 RS-360SH-14280 RS-365SH-2080 RS-365SH-12190 GA12YN20-100-4596 GA12YN20-250-4538 GA12YN20-298-4532 GA12YN30-100-4594 GA12YN30-250-4537 GA12YN30-298-4531 GA25Y310-100 GA25Y310-220 GA25Y370-100 GA25Y370-220 GA25Y370-480 GB37Y500-30 GB37Y500-90 GB37Y540-100 FF-130SH-11340 FF-130SH-14230 RF-356CA-10250 RF-400CA-1D350 RF-400CA-12265 RF-300EA-1D390 RF-300EA-8Z485 RF-500TB-12560 RF-500TB-14415 RF-500TB-14375 RF-500TB-14415 RF-500TB-12560 RF-500TB-18280 RF-520TB-11710 RF-520TB-10900 RF-520TB-17410 EG-520ED-3B RF-530TB-14500 RF-530TB-11280 FF-030-PK FFN-20PA-10190 FFN-20PN-08260 FF-N30-10190 Brushless Motor from 16mm to 52mm diameter,BL1625 brushless motor,BL2412 brushless motor,BL2418 brushless motor,BL2430 brushless motor,BL2838 brushless motor,BL2847 brushless motor,BL3625 brushless motor,BL3626 brushless motor,BL3630 brushless motor,BL3640 brushless motor,BL3650 brushless motor,BL3657 brushless motor,BL4235 brushless motor,BL4260 brushless motor, BL4275 brushless motor,BL5265 brushless motor,B L5285 brushless motor

Brushless Motor from 16mm to 52mm diameter,BL1625I brushless motor,BL2412I brushless motor,BL2418I brushless motor,BL2430I brushless motor,BL2838I brushless motor,BL2847I brushless motor,BL3625I brushless motor,BL3626I brushless motor,BL3630I brushless motor,BL3640I brushless motor,BL3650I brushless motor,BL3657I brushless motor,BL4235I brushless motor,BL4260I brushless motor, BL4275I brushless motor,BL5265I brushless motor,BL5285I brushless motor

Brushless Motor from 16mm to 52mm diameter,B1625M brushless motor,B2412M brushless motor,B2418M brushless motor,B2430M brushless motor,B2838M brushless motor,B2847M brushless motor,B3625M brushless motor,B3626M brushless motor,B3630M brushless motor,B3640M brushless motor,B3650M brushless motor,B3657M brushless motor,B4235M brushless motor,B4260M brushless motor, B4275M brushless motor,B5265M brushless motor, B5285M brushless motor

Unit Price: USD, EXW SHENZHEN Delivery Lead Time: 3-5DAYS Minimum Order: 1PCS Supply Ability: 50000PCS Key Specifications We are professional manufacturer DC Motor. Excellent quality and

Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.the company strictly implements the IS9001:2015 management system.

Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

We provide motor driving solutions and services for the world's most famous intelligent door lock enterprises on a long-term basis. Our motors have a service life up to more than 500,000 times; the service life of a battery unit is more than 150,000 times. Advanced technologies and rich experience have secured our leadership in the industry of electronic locks.
