Home >Products Catalog > High Quality Wood Milling Machine CNC Rotary 3D Router 4 Axis Wood Foam Engraving Machine

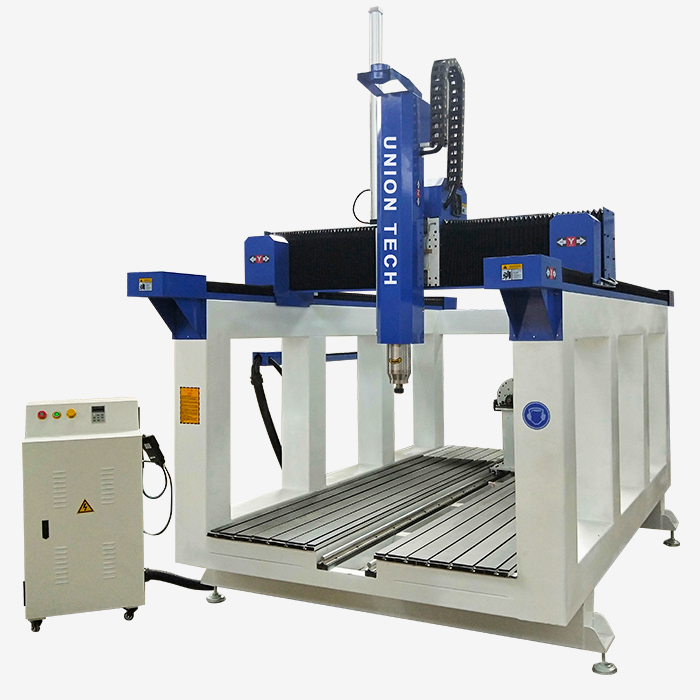

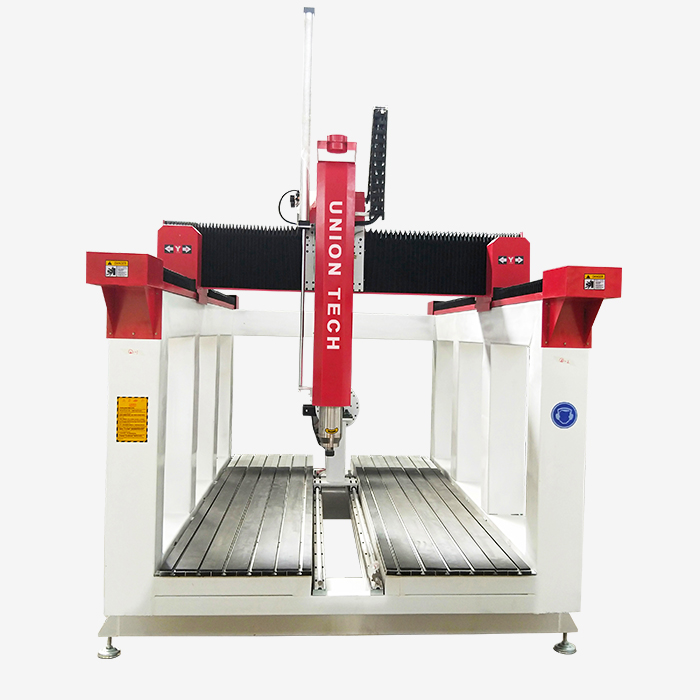

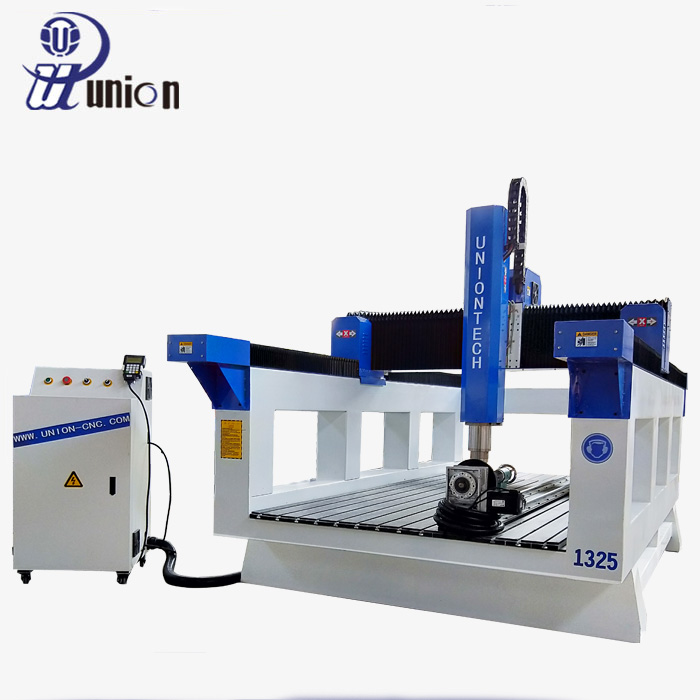

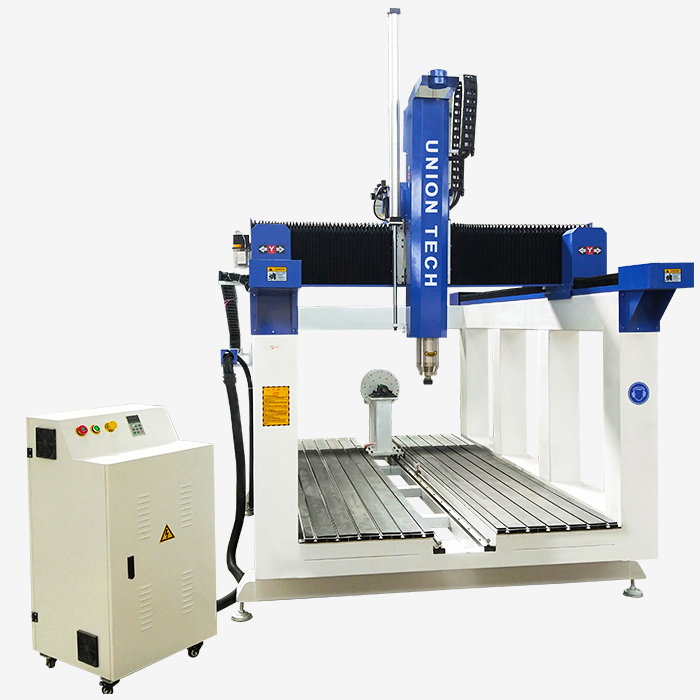

High Quality Wood Milling Machine CNC Rotary 3D Router 4 Axis Wood Foam Engraving Machine

FOB Price:	3000.00 - 3500.00 USD/Set
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

tungsten carbide insert

Price:1.00-10.00 USD/Piece

Min. Order:20 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Brand Name: UnionTech
Condition: New

Specifications

High Quality Wood Milling Machine CNC Rotary 3D Wood Router 4 Axis Wood Foam Engraving Machine

High Quality Wood Milling Machine CNC Rotary 3D Router 4 Axis Wood Foam Engraving Machine

1300 * 2500*1000mm the standard working size, equipped with 200mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. Which do not need to move, saving labor and time. And spindle is the highest quality and most convenient for process.

Features:

Big steel tube structure, so the machine's body is strong, reliable and durable.
Top-quality components, which makes the machine high-precision and high-efficiency. CSK guide rails, TBI ball screw, Richauto control system and so on, which keep the machine in best condition even after working for many years.
Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages. Emergency Stop Buttons, emergent shutdown during unexpected accidents and do no harm to human. Colorful machines' appearances and high-quality paint make the machine beautiful.
Easy and safe operation and low maintenance cost. to make you learn quickly how to operate safely the machine, free training in our factory will be offered. Less time and less money will be cost on the maintenance.
Many optional configuration and OEM service available. According to your requirement, different configurations will be offered. OEM service is available for you.

Parameters:

Model	UT-1325EPS
Working area	13002500800mm (can be customized)
Working Voltage	380V, 3PHASE, 50HZ (can be customized)
Control System	DSP A18 control system
Spindle	5.5KW water cooling spindle, ER25
Spindle speed	0-24000RPM
Motor and Driver	Leadshine easy servo driver and servo motor
Inverter	5.5kw Fuling inverter
Structure	Heavy duty thicker and bigger welded frame and gantry
Table surface	Aluminum Working Table with T-slot
Gantry structure	Thicker steel tube, Gantry Moving
Calibration	Auto tool sensor calibration
Transmission	X,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw, Taiwan HIWIN/PMI/CSK 25# Rail Linear Bearing,
Command language	G Code
Software	ArtCam, Ucancam,Type3
Rotary device:	500mm diameter* 2500mm length
Optional	Servo motor, 4axis turning spindle
