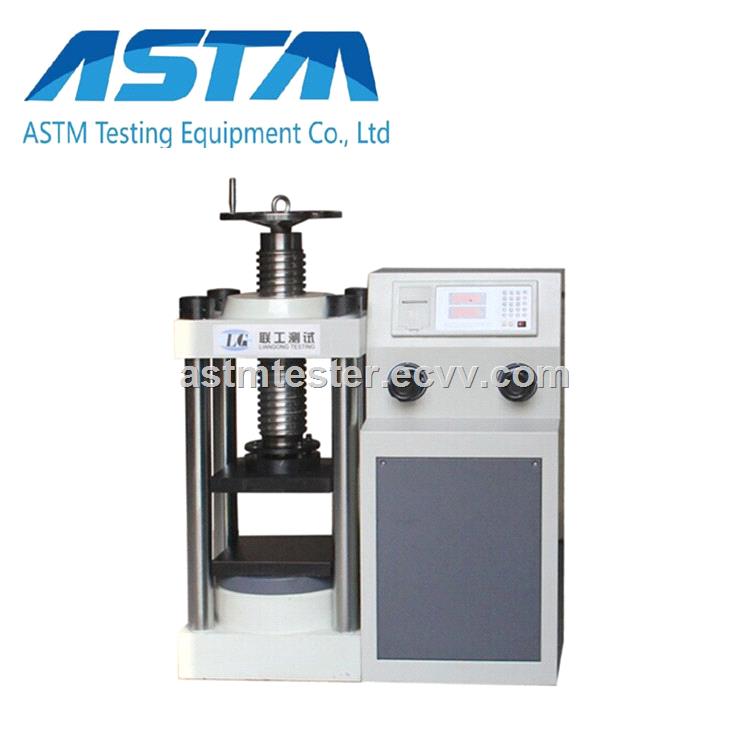

YES-2000M Compression Testing Machine (Manual Screw)
| FOB Price: | 3800.00 - 8800.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | Qingdao port |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Plywood package |
Quick Details
- Usage: Compression Testing Machine
- Power: Hydraulic
- Brand Name: ASTM
- Warranty: 12 months
- weight: 700kg
- Model Number: YES-2000M
Specifications
Function
this machine mainly used for the compressive strength test to brick, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.
the machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate display, and keep the maximum load value, overload protection and power outages data keep etc.
Technical parameters
Max. Testing force |
2000KN |
Measurement range |
4%-100%FS |
Relative error of test force value: |
≤±1% |
Leading screw adjusting mode |
Manual |
Motor power |
0.75KW |
Pressure plate size |
220*250mm |
Max. Distance between up and below pressure plate |
320mm |
Max. Piston stroke |
50mm |
Piston diameter |
250mm |
Host dimension (mm) |
900*400*1150 |
Weight |
700Kg |
