Home >Products Catalog > Label Slitter Rewinder > CLSP-C1600: Hi-Speed Sliiter Rewinder Large Servo Driven Kraft Paper Slitting Rewinding Machine

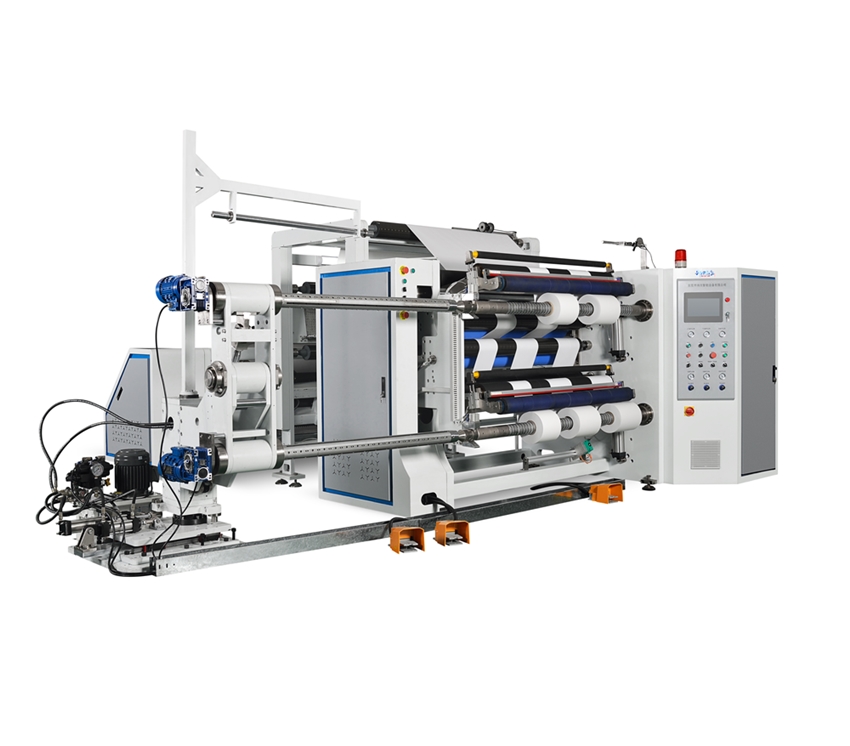

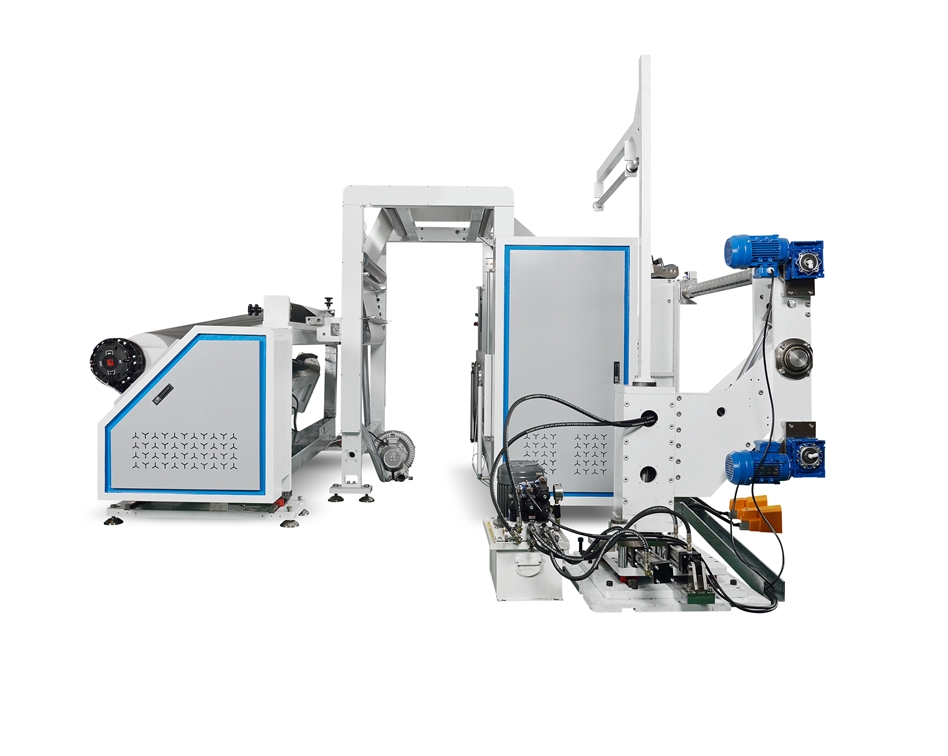

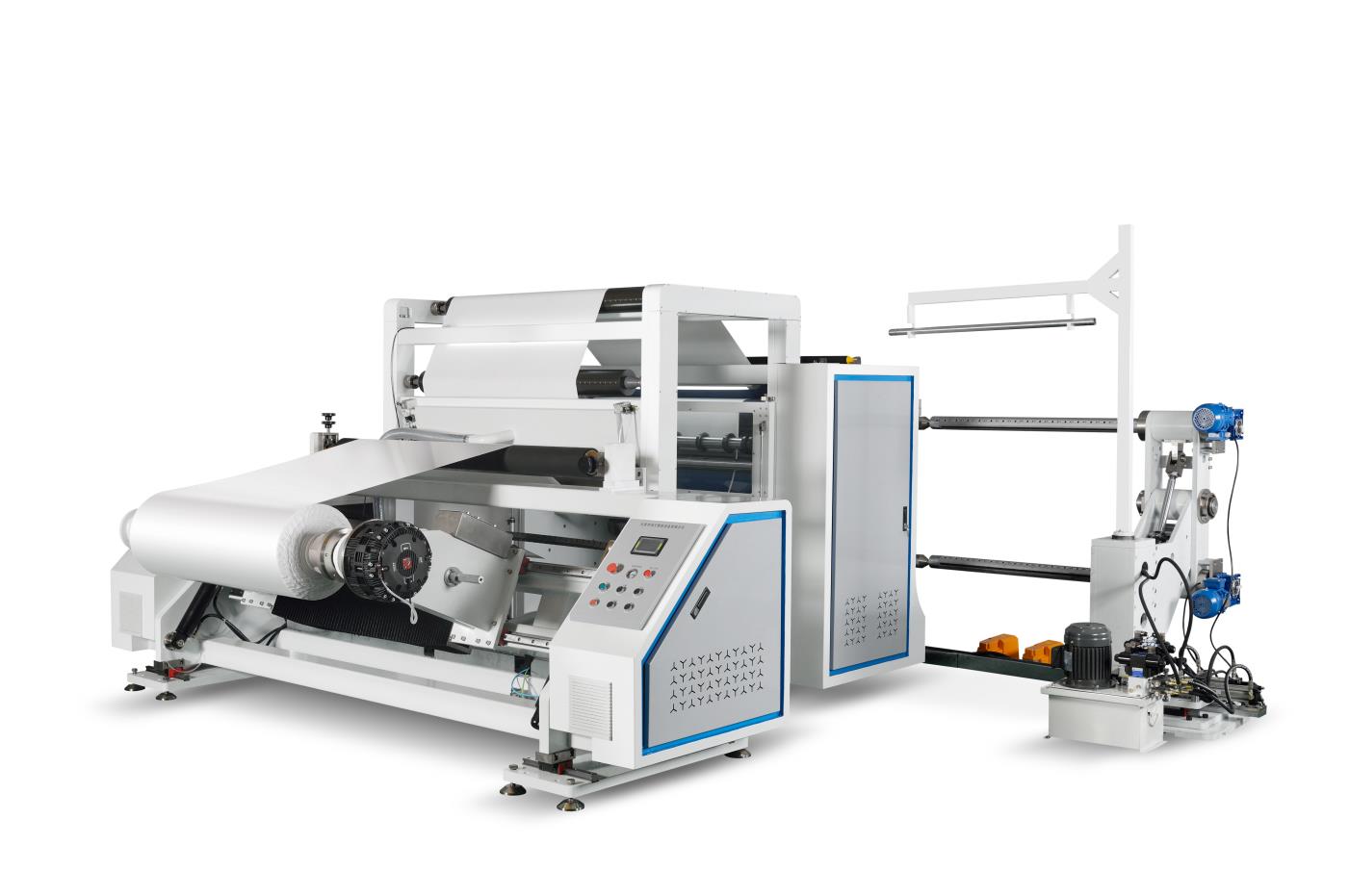

CLSP-C1600: Hi-Speed Sliiter Rewinder Large Servo Driven Kraft Paper Slitting Rewinding Machine

FOB Price:	75000.00 - 95000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	FOB SHENZHEN
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wooden casing

Quick Details

After-sales Service Provided: Overseas third-party support available
Warranty: One year guarantee for key part
Brand Name: Vision
Automatic Grade: Semi-Automatic
Condition: New
Certification: CE Certificate
Weight: 6000KGS
Dimension(L*W*H): 4600*3100*2000MM
Power(W): 30KW
Voltage: 380V
Model Number: CLSP-C1600
Type: Paper Cutting Machine

Specifications

BrandVision Intelligent

Product originDongguan China

Delivery time15-35 days

Supply capacity20 sets/month

1. the whole machine adopts Japanese Mitsubishi PLC and Weilun touch screen control, and the working parameters can be set on the screen.
2. the main machine adopts 3 sets of imported Yaskawa inverters and servo motors for linkage control, with high speed and stable tension.
3. Automatic hydraulic feeding is adopted, which saves time and effort. the unwinding can bear 1500KG weight material.
4. the pneumatic pressure material receiving platform is adopted to save the time of material changing.
5. Independent servo driven web-guide system is used to correct the deviation of the material.
6. the machine is equipped with SMC proportional valve and top-fixing pressure reducing valve. during the automatic tension of the slip shaft, the tightness of the winding material can be well adjusted.
7. All drive shafts adopt dynamic/static balance processing to ensure the stability and accuracy of the material transfer and slitting process.
8. Automatic meter counting device with roller encoder. When the material is cut and re-winded to the preset length, the machine will automatically stop working.
9. the wall panels and accessories of the machine are customized with CNC technology to ensure the stability and cutting accuracy of the machine.

1. Technical parameters:

	Name	CLSP-C1600
1	Web working width	1600mm
2	Max unwinding diameter	1300mm
3	Max rewinding diameter	650mm
4	Slitting width	30mm-1650mm
5	Slitting speed	300m/min
6	Inner core size	3 inch
7	Slitting precision	±0.2mm
8	Voltage	380V
9	Power	30 kw
10	Machine size	460031002000mm
11	Machine weight	6000kg

2. Machine details:

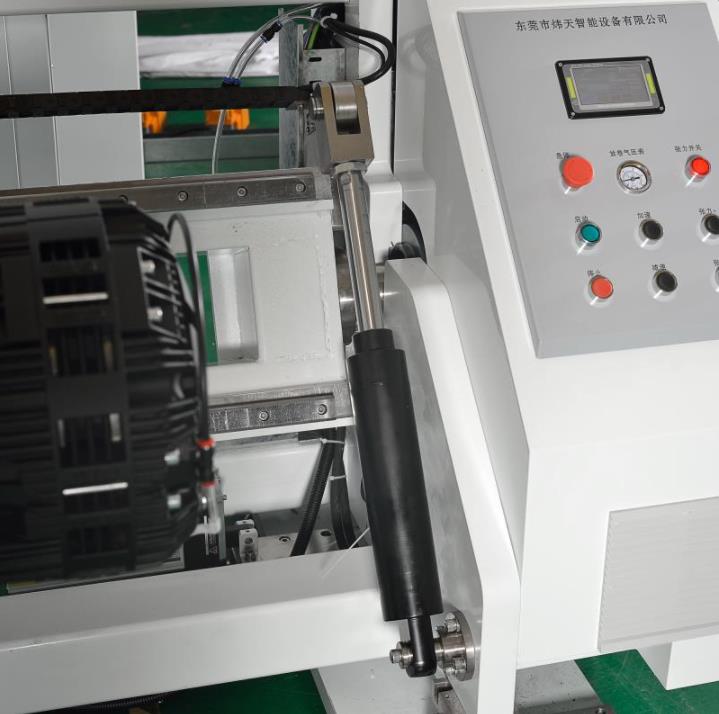

A. Hydraulic cylinder
CLSPC1600 Hispeed Sliiter Rewinder Large Servo Driven Kraft Paper Slitting Rewinding Machine

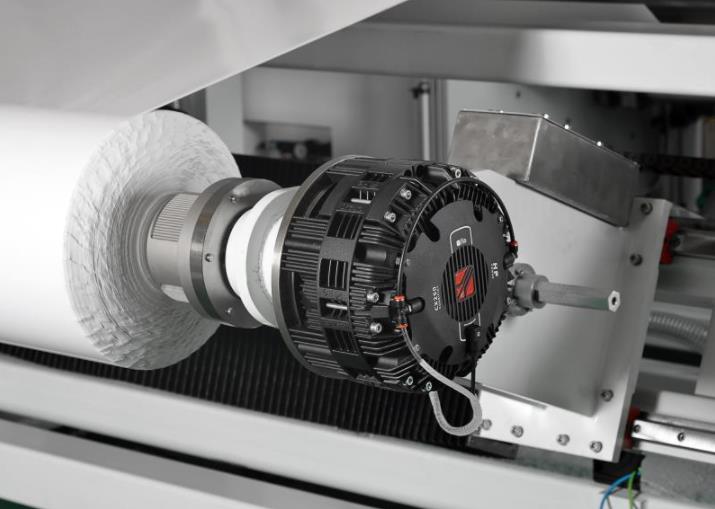

B. Pneumatic brake
CLSPC1600 Hispeed Sliiter Rewinder Large Servo Driven Kraft Paper Slitting Rewinding Machine

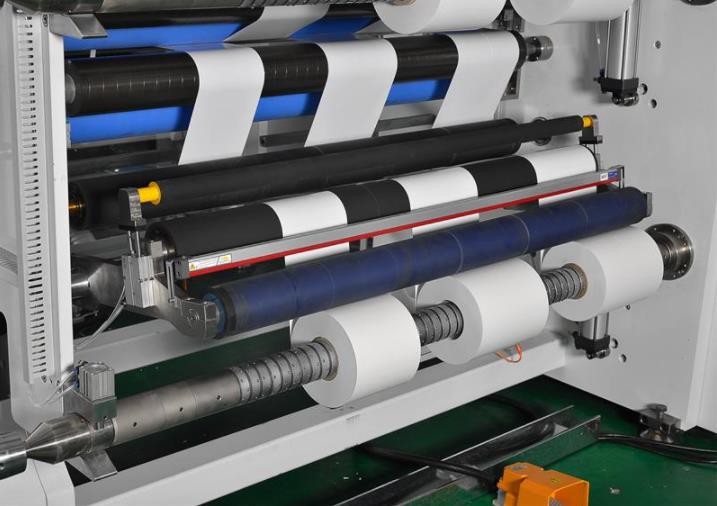

C. Differential rewind shafts
CLSPC1600 Hispeed Sliiter Rewinder Large Servo Driven Kraft Paper Slitting Rewinding Machine
