Catalyst Analysis Instrument CEL-PCRD300-12

FOB Price:	11000.00 - 13750.00 USD/Unit
Supply Ability:	100 Set(s) per Month
Shipping:	FOB, CPT
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton

Quick Details

Brand Name: CEAULIGHT
usage: photolysis of water
Weight: 25kg
Temperature range: -20-80
Power supply: 300W
Model Number: CEL-PCRD300-12

Specifications

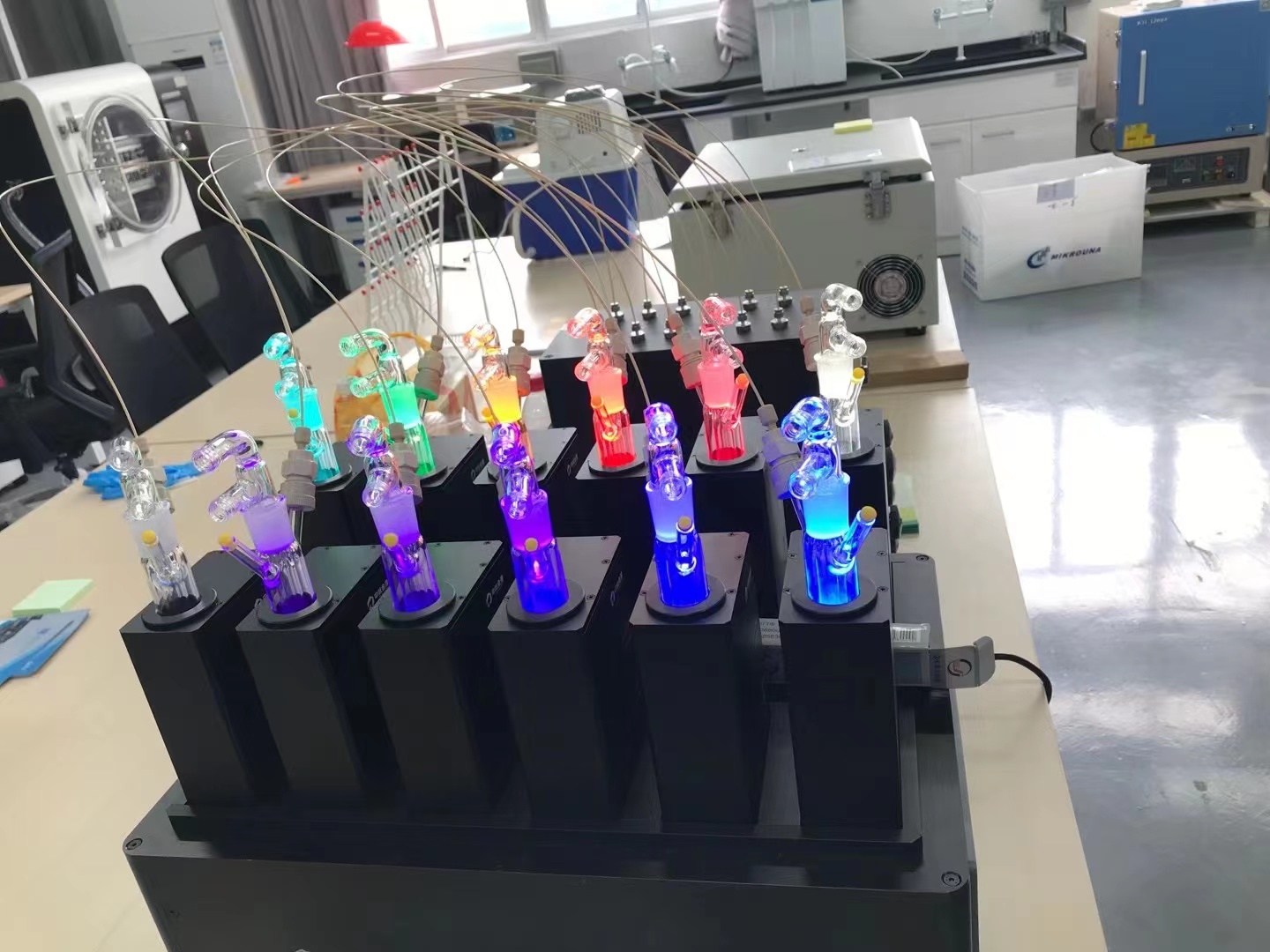

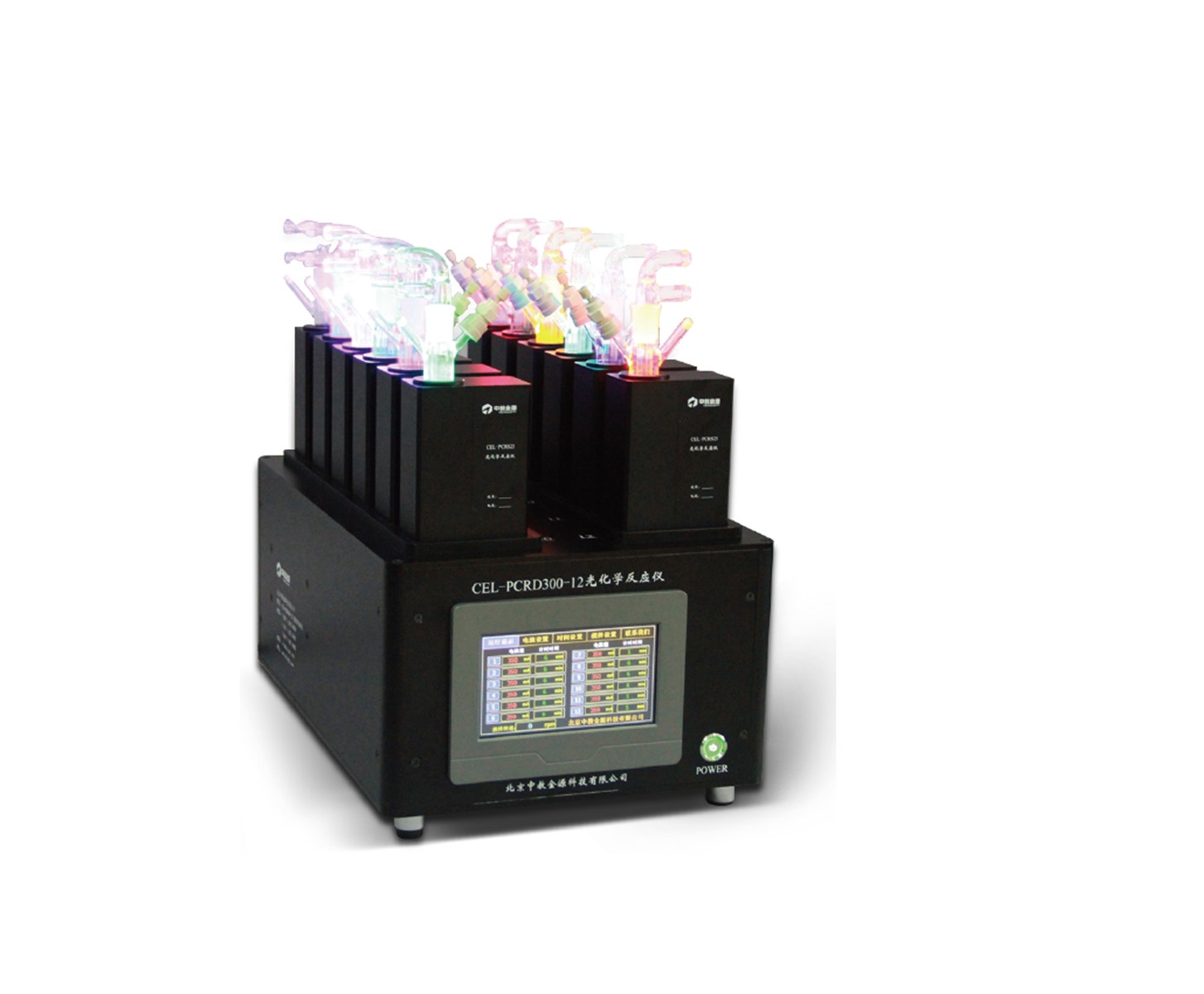

the CEL-PCRD300-12 photochemical reaction instrument (LED) mainly uses the screening of catalysts to improve the efficiency of photocatalytic experiments. It can simultaneously experiment with 12 samples, which realizes the analysis of samples under different wavelengths and different conditions and speeds up the experimental process. the functions of temperature control, ventilation, vacuum, stirring, and selection of various wavelengths of the catalytic reaction tube are realized. the standard GDT-12 gas distributor can also independently control the experimental reaction atmosphere of the reaction tube. CELPCRD30012 Photochemical Reaction Instrument LED

Instrument advantages

1) Use side irradiation to increase the irradiation area, which is 10 times that of bottom or top irradiation;

2) 12-bit independent numerical control, stirring, light intensity, multi-wavelength, ventilation, vacuuming;

3) the wavelength can be arbitrarily matched; optional wavelengths 365nm, 395nm, 405nm, 420nm, 455nm, 470nm, 500nm, 520nm, 590nm, 620nm, 660nm, 740nm, 810nm, 850nm, 940nm, white LED;

4) Simultaneous stirring of the 12-bit reactor is realized to better mix samples;

5) Modular design can be used to achieve multi-band irradiation only by replacing the PCRS25 module;

6) the LED light source does not need water cooling, no filter, and the light is uniform;

7) the LED power supply is individually controlled by the touch screen to achieve free matching.

Technical Parameters

items	Parameters
Function	12-bit photochemical reaction instrument; independent control, stirring, adjustable light intensity, multi-wavelength selection, ventilation; PCRS25 photochemical reaction instrument light box realizes online hot swapping and replacement of band.
LED Standard 12-bit wavelength	365nm, 395nm, 405nm, 420nm, 455nm, 470nm, 500nm, 520nm, 590nm, 620nm, 660nm, white light
Optional wavelength	740nm, 810nm, 850nm, 940nm
Control mode	7-inch high-definition touch screen CNC, 240 * 128dpi
Input power	300W,AC110-240V,±0.01%
LED power consumption	12*25W, DC38V,±0.01%
Irradiation	12-bit independent LED side irradiation, irradiation area 100mm * 20mm (50ml); optional 100mm * 30mm (100ml)
Number of samples	12-bit 50ml quartz reaction tubes + temperature controlled cold well (optional 100ml)
Irradiation unevenness	5%

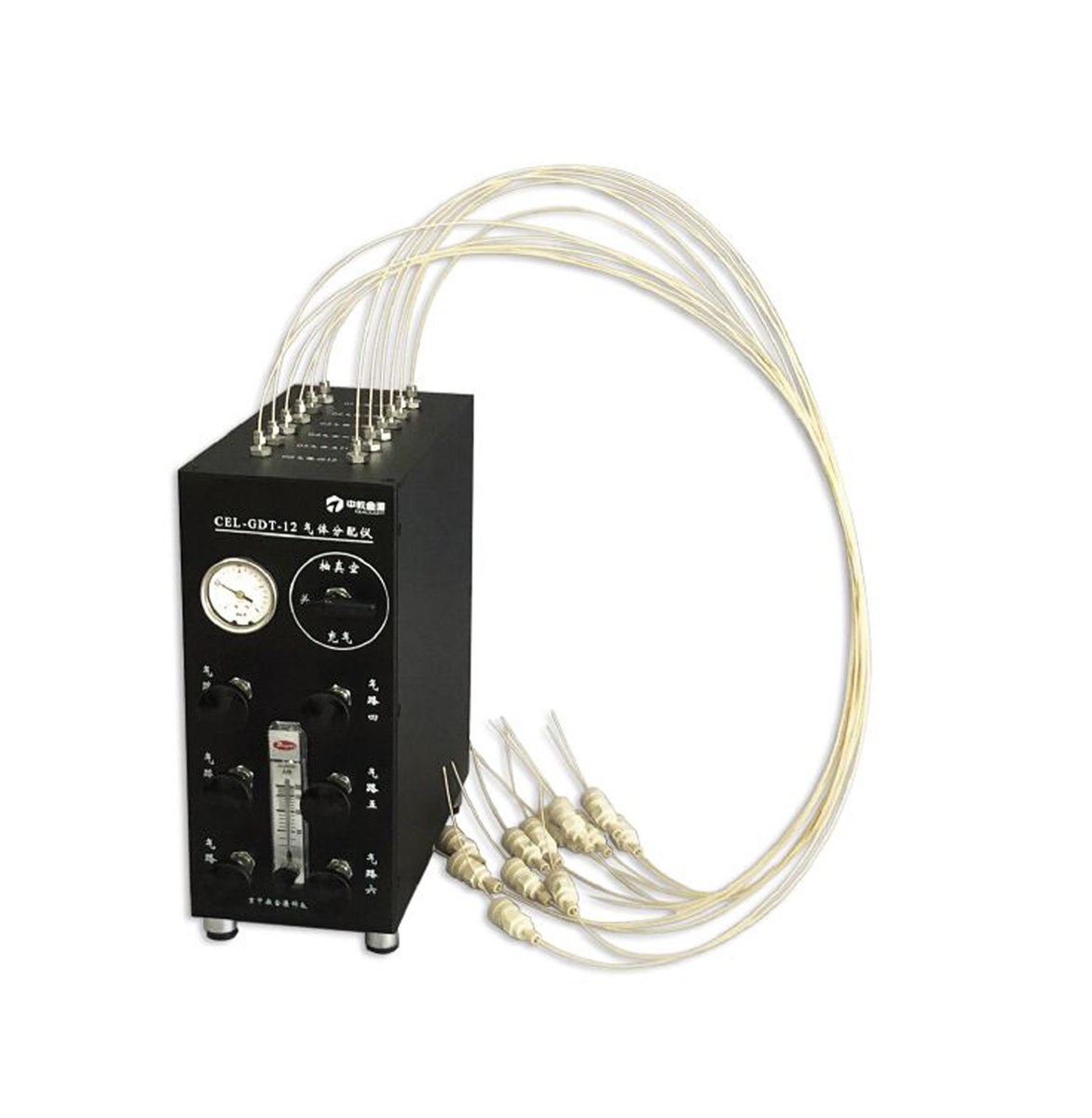

Standard configuration	1 set of host system, 1 set of CEL-GDT-12 gas distributor, 12 sets of CEL-PCRS25 photochemical reactor light box, 14 sets of quartz reaction tubes (50ml), 12 sets of PEEK special joints and pipelines
Description of wavelength selection: customers can choose the band and quantity according to the experimental requirements, a total of 12 standard; can also add multiple bands according to demand.
