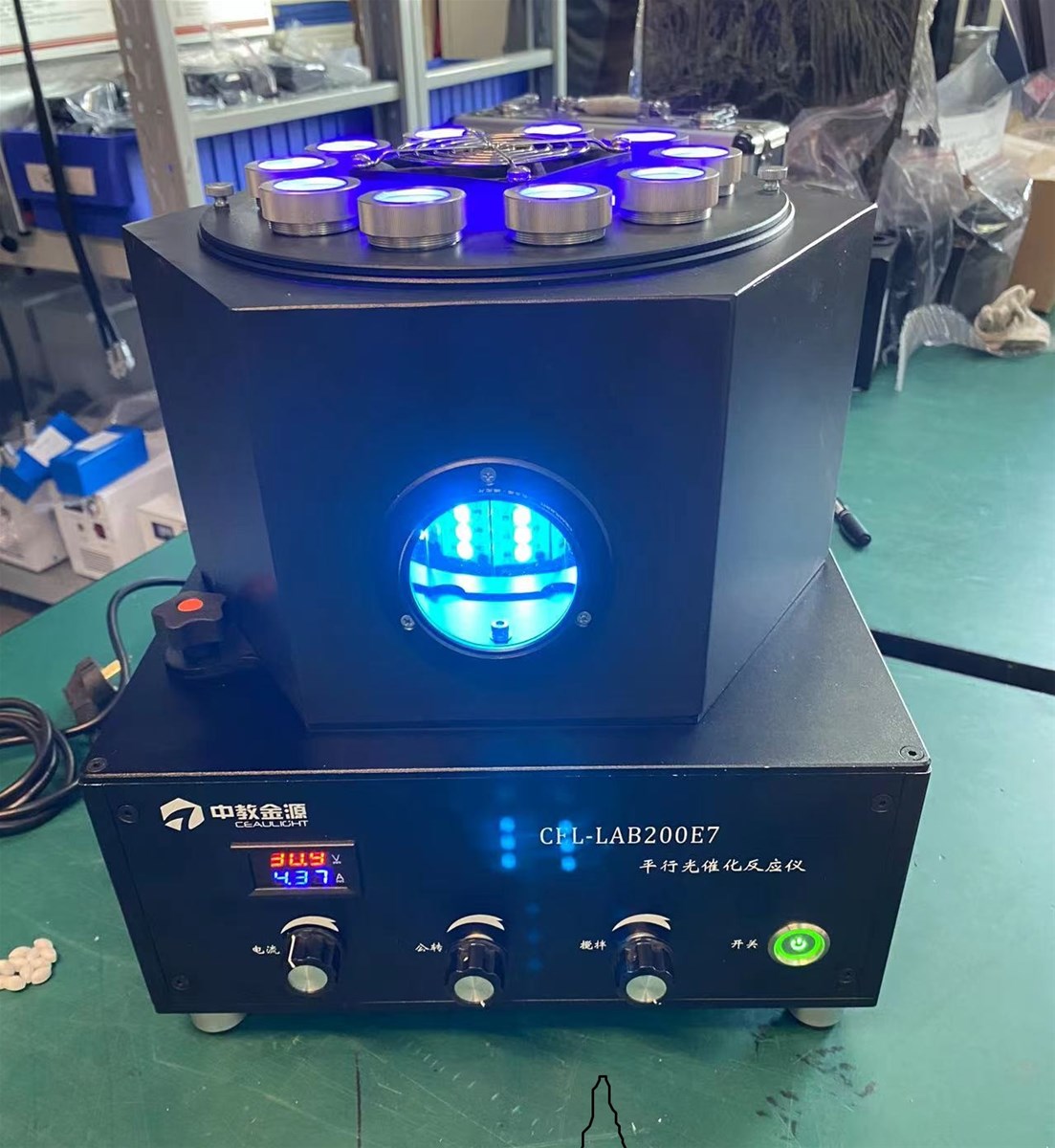

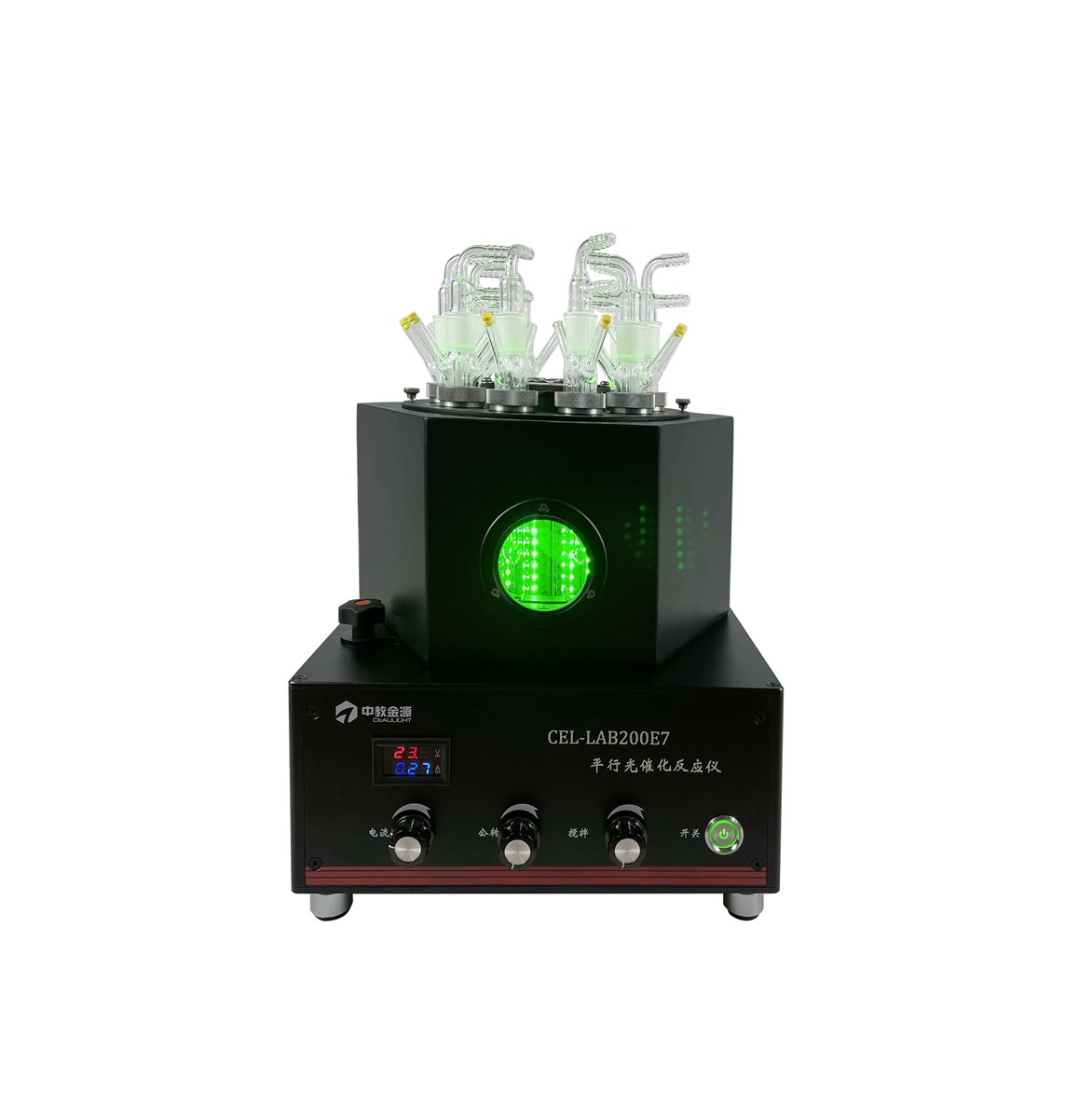

Parallel Photochemical Reaction Instrument CEL-LAB200E7 LED Light Source System

FOB Price:	6500.00 - 8000.00 USD/Unit
Supply Ability:	100 Set(s) per Month
Shipping:	FOB, CPT
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton

Quick Details

Brand Name: LiTCATAL
usage: photolysis of water
Weight: 10kg
Temperature range: -20-80
Power supply: 300W
Model Number: CEL-LAB200E7

Specifications

CEL-LAB200E7 parallel photochemical reaction instrument is a true parallel reaction instrument. It places the LED light source in the center of the 10-position reactor and rotates the LED light source to achieve the irradiation of any reactor with the same optical power density. the quartz glass reactor has the functions of temperature control, gas inlet, gas outlet, online sampling, magnetic stirring, etc., and can conduct 10 samples in parallel experiment.

the parallel photochemical reaction instrument can be applied to the screening of photocatalysts, improve the efficiency of photocatalysis, and realize the analysis of parallel samples. It is mainly used to study the photochemical reaction under the conditions of gas or liquid medium, fixed or flowing system, ultraviolet light, monochromatic light, visible light or simulated sunlight, constant temperature and the same light intensity. It has the functions of analyzing reaction products, measuring reaction kinetics, and measuring quantum yield. It is widely used in research fields such as photochemical catalysis, chemical synthesis, environmental protection, and life sciences.

Instrument advantages

1.the standard quartz reaction tube of the reactor has the functions of temperature control, air intake, air output, real-time sampling, magnetic stirring, etc;

2.the LED light source can rotate around the axis to achieve uniform and parallel illumination;

3. the LED light source can be hot swapped online to replace light sources with different wavelengths;

4.Realize 15 optional monochromatic wavelengths from 365nm-940nm; and visible white light

5. LED light source power is continuously adjustable from 30W to 200W, to achieve a wide range of power changes;

6. the optical power, rotation, and magnetic stirring of the LED light source system are independently controlled.

Technical Parameters

Items	Parameters
Working digits	10 working digits, 10 magnetic stirring, adjustable speed;
Reaction tube	Quartz glass reaction tube, 19 standard port, built-in temperature control interlayer, gas inlet and outlet, real-time sampling, standard specification 50ml * 10;
LED light source	Power adjustment range 30-200W continuously adjustable, self-rotating around the axis, white light (410-760nm) as standard, built-in power supply;
LED lamp assembly	10-bit LED lamp row, rotatable irradiation, integrated air cooling and heat dissipation, hot swap, free replacement of different wavelength LED lamp assembly;
Irradiation	10-digit LED lamp assembly, irradiated from the inside to the outside, and rotating in real time to ensure the uniformity and uniformity of the irradiation of the reaction tube;
Input power	240W, 110-220V / 50/60Hz.
Optional LED assembly	CEL-CLED200R rotating LED lamp assembly 365nm, 395nm, 405nm, 420nm, 455nm, 470nm, 500nm, 520nm, 590nm, 620nm, 660nm, 740nm, 810nm, 850nm, 940nm, white light, simulated sunlight
Other options	(1) Temperature control cycle, HX105 (0-95 ℃, adjustable); (2) Quartz reaction tube, 100ml (CEL-QRT100), 50ml (CEL-QRT50). (3) Special protective box, LB70 (400 * 400 * 700mm). (4) CEL-GDT12 gas distributor is used for functions such as bubbling, inflation and vacuum extraction.
