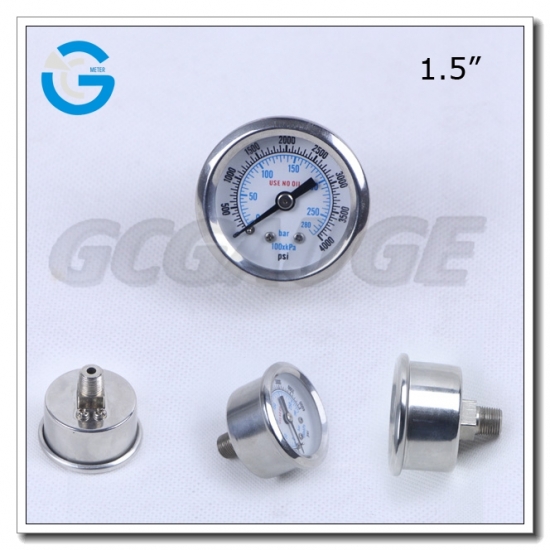

1.5 Inch Diameter 10mpa & above All Stainless Steel Dry Pressure Gauge
| FOB Price: | 1.00 - 100.00 USD/Set |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Weight: /
- Dimensions: /
- Measuring Current Range: /
- Display Type: /
- Brand Name: /
Specifications
Small diameter 100bar and above pressure with all stainless steel material and dry version.
Specifications:
Specifications of 1.5 Inch Diameter 10mpa and above All Stainless Steel Dry Pressure Gauge
Dial: |
1.5", 2", 2.5", 4",6",8"10" |
Scale ranges: |
-1 to 1000bar |
Accuracy class: |
1.6%(≤63):1.0%(≥100,150,200) |
Process connection: |
1/8",1/4",1/2"NPT or BSP |
Burdon tube: |
316LSS,drawn seamless |
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
Movement: |
316SS or 304SS |
Pointer: |
Aluminum, micrometer adjustable for option |
Welding: |
TIG Welding, Laser Welding |
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
Window(lens): |
Safety glass, tempered glass or PC |
Fill: |
Glycerin or Silicone |
IP class: |
IP 65 |
Is a professionalPressure gauge company, we provideStainless pressure gauge,Ss 304 gauge,Dry gauge,Dry pressure gauge,All stainless steel pressure gauge,304 stainless steel gauge,,, and etc. Want to know more? Contact us now.
