5% NDIR CO2 Sensor CM1107H for Control & Alarm Applications

FOB Price:	1.00 - 9999.00 USD/Cubic Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Output: UART_TTL (3.3V) I2C (3.3V)
Theory: NDIR
Usage: Gas Sensor
Brand Name: Cubic
material: metal
Model Number: CM1107H

Specifications

Introduction

CM1107H is base on dual beam platform with measurement range 0-5.00% Vol. It is with idea sensing solution for control and alarm applications. It can be integrated into a wide range of different CO2 alarm applications that are critical in ensuring safety such as cellar, brewery, agriculture facilities, industrial plants, and dry ice storage, code chain, and is also can be used for ventilation system, air purifier, air conditioner, ect.

Features
1.NDIR technology with independent intellectual property.
2.Dual beam detection for superior stability and better accuracy.
3.High accuracy, long term stability, long life (>10years).
4.Temperature calibration within whole measurement range.
5.Signal output UART/I2C.
6.Small size and compact structure, easy to install.

Applications
1.Fresh Air System Controller
2.Air Quality Monitor

Specification

Measurement range	0-5.00% Vol
Resolution	0.01% Vol
Working temperature	-10°C ~ 50°C
Working humidity	0-95%RH (non-condensing)
Storage temperature	-30°C ~ 70°C
Storage humidity	0-95%RH (non-condensing)
Accuracy	± 0.02% Vol+10% of reading @0°C ~ 50°C, 50±10%RH
Sampling frequency	1s
Time to first reading	≤30s
Power supply	DC 4.5V~5.5V
Working current	<50mA @1s
Dimensions	W33 * H23.4 * D15.2mm(without pin)
Weight	6.3G
Signal output	UART_TTL (3.3V) I2C (3.3V)
PWM output	Output high level minimum duration: 2ms (0% Vol) Output high level maximum duration: 1002ms (5.00% Vol)
Life span	≥10 years

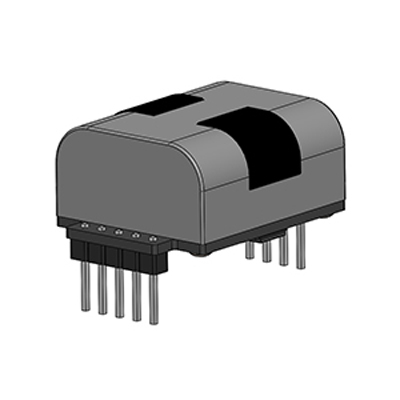

5 NDIR CO2 Sensor CM1107H for control and alarm applications
