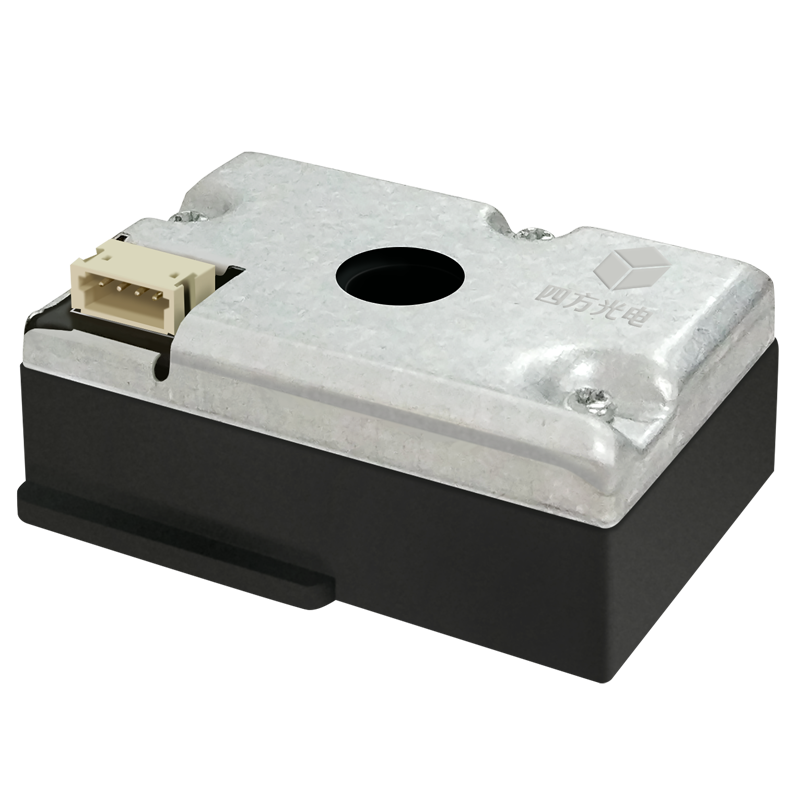

LED Particle Sensor with Dust Correction PM1006K

FOB Price:	1.00 - 9999.00 USD/Cubic Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Output: UART_TTL, PWM
Theory: Light Scattering
Usage: Gas Sensor
Brand Name: Cubic
material: metal
Model Number: PM1006K

Specifications

Introduction

PM1006K infrared (LED) particle sensor real time output PM2.5 with dust deposition self-correction. It can measure dust concentration in the air by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.

Features
1.Built-in MCU, directly output particle mass concentration (μg/m3).
2.Optimized lens design, the sensor can identify 0.3μm particle.
3.High accuracy, high stability, quick response.
4.Temperature compensation with the whole measurement range.
5.Auto lens dust deposition correction.
6.Compact structure, light weight and easy for installation.

Applications
1.Air Purifier
2.Air Quality Monitor

Specification

Measured particle size	0.3μm~10μm
Measurement range	0~1000μg/m3
Accuracy	±20μg/m3 or ±20% of reading(@voltage 5.0V, 25±2℃, 50±10%RH)
Response time	8s
Working condition	-20℃~75℃, 0~95%RH(non-condensing)
Storage condition	-40℃~85℃, 0~95%RH(non-condensing)
Power supply	DC 5V±0.2V
Ripple wave	<50mV
Working current	≤30mA
Signal output	UART_TTL, PWM
Dimensions	W46.2H34.1D18(mm)
Weight	17.4g
