12mm 1.2" 25MP Machine Vision FA 0.39% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Autom

FOB Price: 1.00 - 400.00 USD/Piece
Supply Ability: 1,000 Piece(s) per Month
Shipping: FOB Shanghai
Payment Terms: T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Anhui in China
Packaging Details: Standard

Quick Details

  • Brand Name: Soyo
  • Focal Length: 12mm
  • Material: Metal
  • Iris: Manual
  • Focus: Manual
  • Model Number: S12MV1224-25M
  • Mount: C
  • Resolution: 25 megapixel
  • Format/sensor size: 1.2"
  • Aperture: F2.4
  • Application: FA machine vision computer vision

Specifications

Product description:


12mm 1.2" 25MP Machine Vision FA 0.39% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount

  • High resolution:       25 megapixel cover all 8K & 4K
  • Large format:          1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion:         0.39% TV / -0.28% Optical low distortion for machine vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI

12mm 12 25MP Machine Vision FA 039 TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Autom

Model

S12MV1224-25M

Resolution

25 Megapixel

Format

1.2" (2.74μm)

Focal Length

12mm

Max image circle

Φ19.3mm

Aperture (Close)

F2.4 Manual iris

Angle of View (°)

1.2"

76.2*62.4*55.33

M.O.D

0.1m

Relative Illumination

81.4% ( WD=300mm F2.8 )

Distortion

0.39% ( TV ); -0.28% (Optical )

B.F.L

18.5mm , WD=600mm

CRA

6.02°

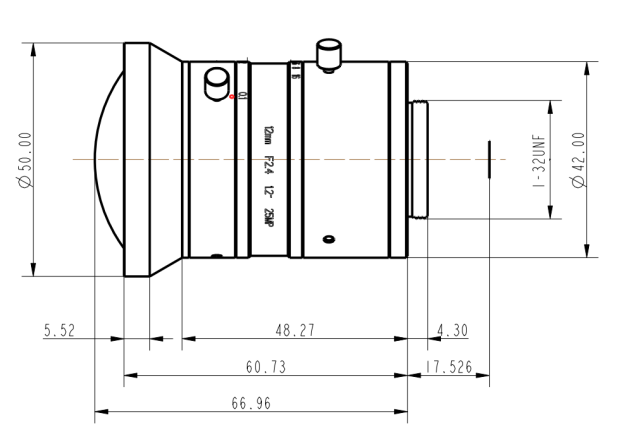

Size

Φ50*66.96mm

Projector

Center 200lp/mm; Edge Φ16 160lp/mm

Mount

C

Weight

300g

Marks

at430~680nm T≥85%; 15G Element


12mm 12 25MP Machine Vision FA 039 TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Autom
